2.4GHz Signal Amplifier 10W 20W 50W 100W RF Frequency Shielded WIFI blocking signal Blocker FOR WIFI Drone UAV

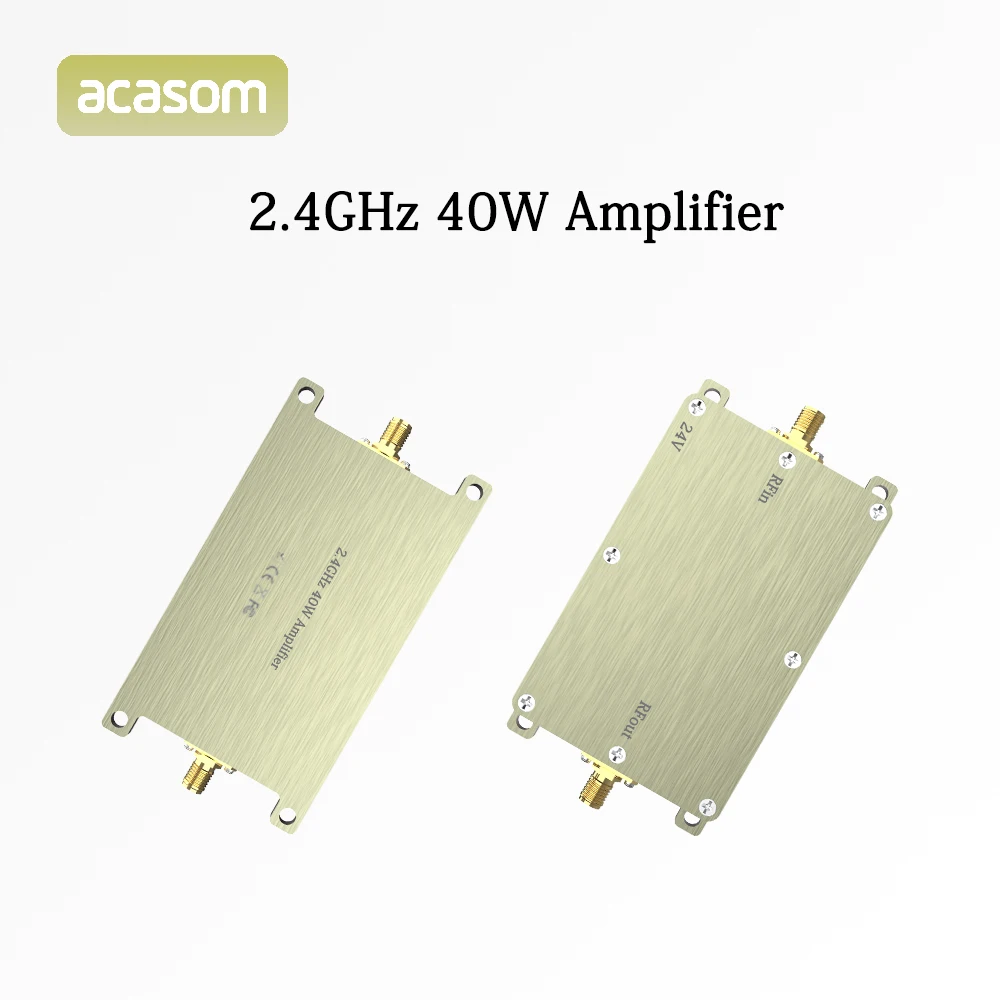

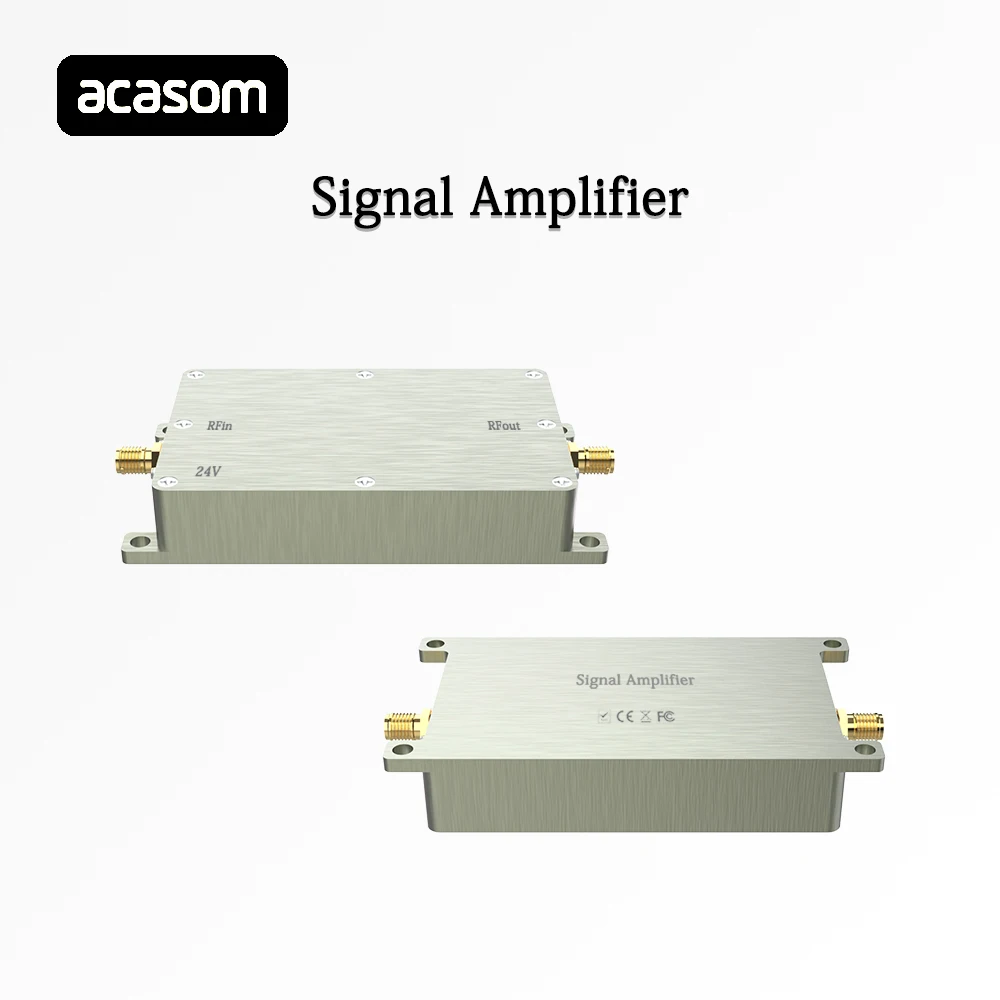

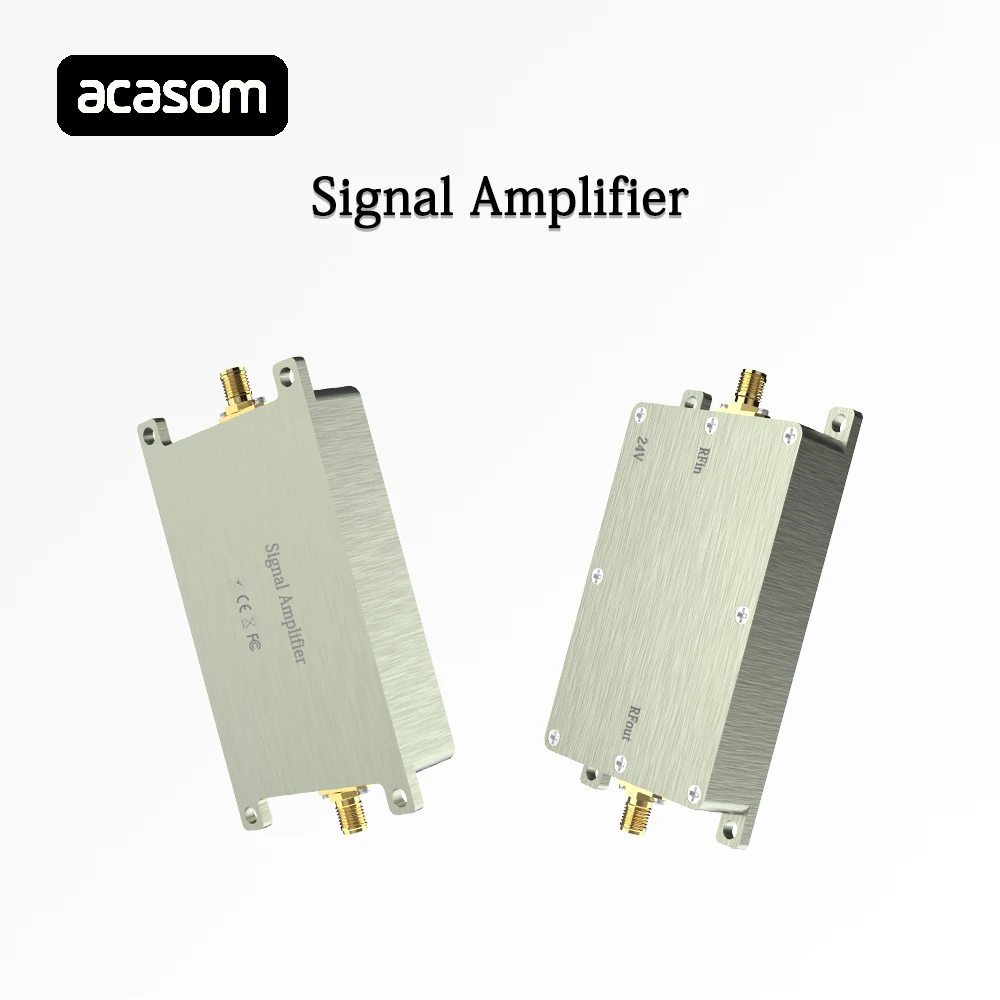

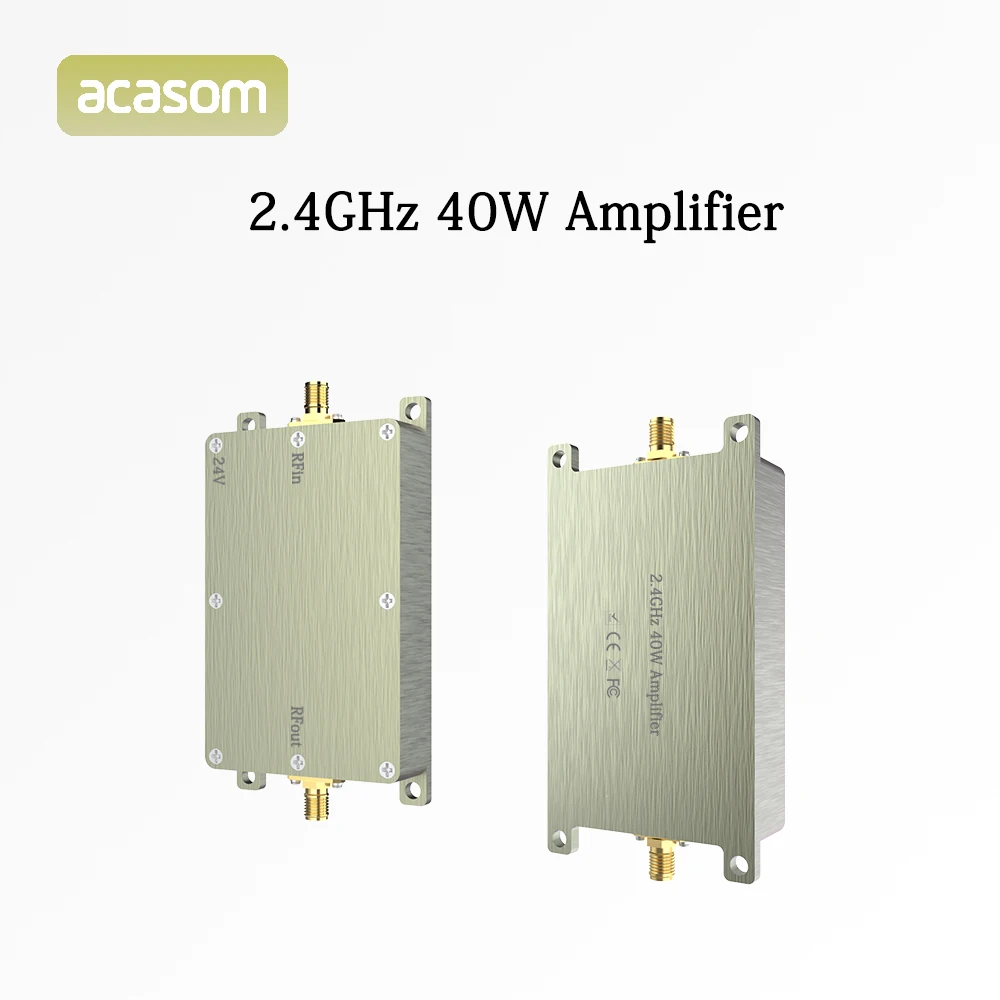

ACASOM 2.4GH Unidirectional Amplifier

not Booster  no RX

High Power Efficiency, Up to 65%

High Gain, Up to 37dB

Number	Items	Specifications
1	Frequency Range	2400-2500MHz
2	Operating Voltage	20-26V
3	Gain(S21)	37dB(customizable 25-45dB)
4	Input Return Loss(S11)	-15dB
5	Flatness	±0.5dB
6	Output Power	46dBm
7	Current	3.7A @24V, 46dBm
8	Efficiency	45%@46dBm
9	LED State	Red
10	Operating Temperature	-30℃～85℃
11	Storage Temperature	-40℃～150℃
12	Operating Humidity	＜95%RH

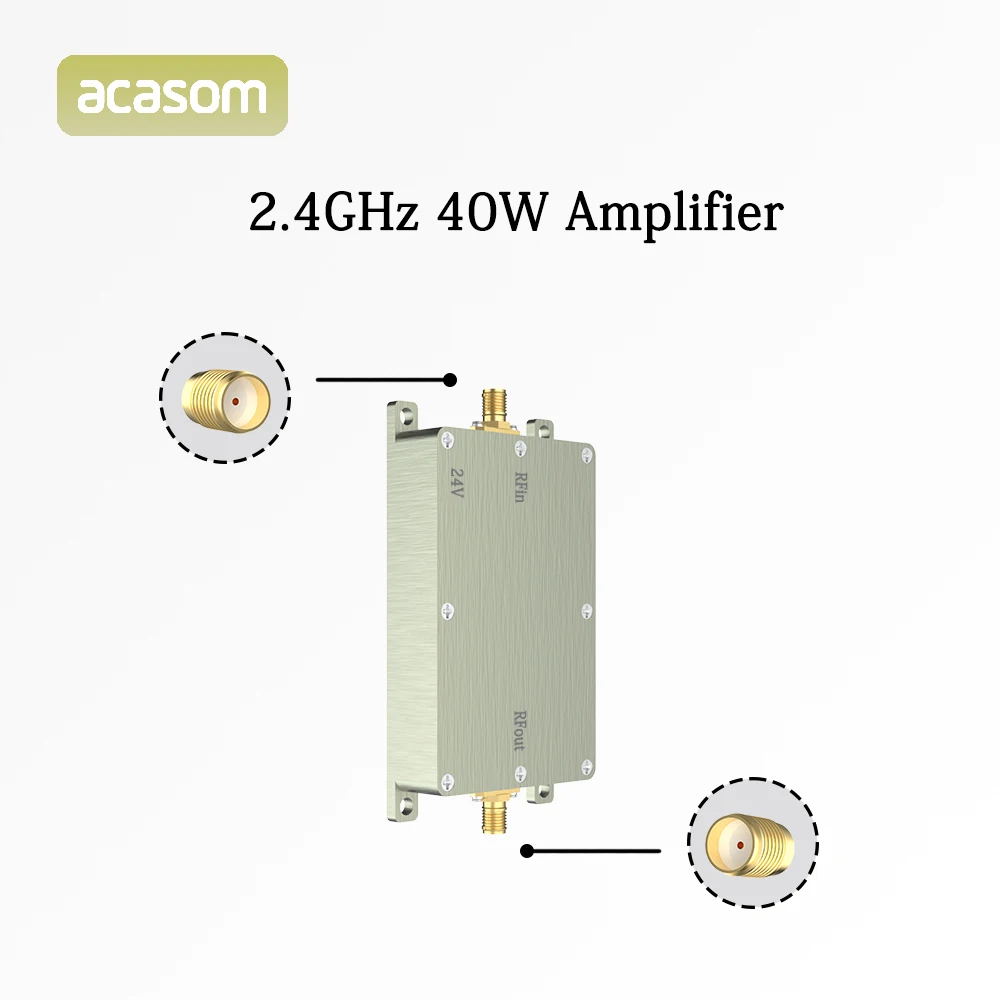

13	RF Connector	Input: SMA-; Output: SMA-K
14	Power Socket	5.5*2.0mm DC( default ) or 15cm red/black wire
15	Shell Material	Aluminum

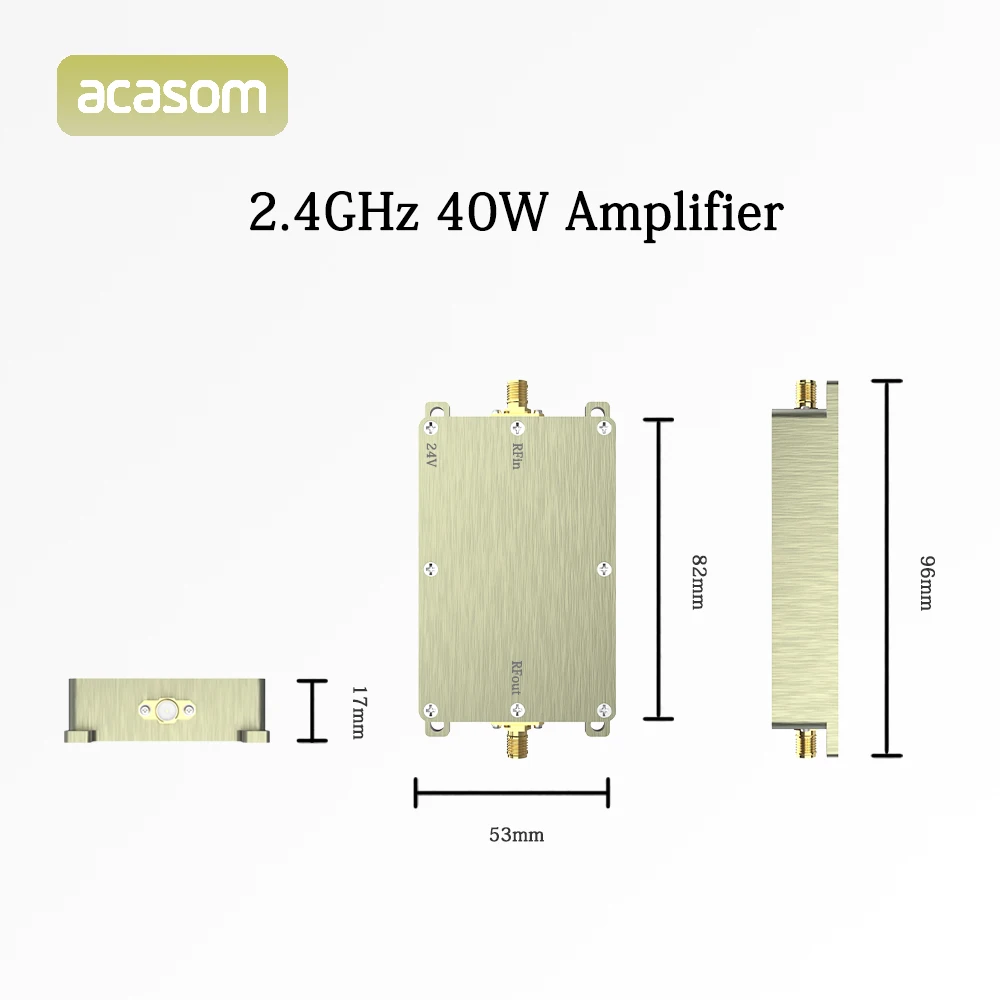

16	Shell Size	82*53*17mm
17	Net Weight	0.12Kg

1 24V /6A power supply.

2 Heat dissipation is recommended, such as adding heat sink or radiator

fan.

3 Antenna should be screwed first, then plug the power adapter, finally

connect the device.

4 The output could reach 46dBm, when input power is 9dBm or 10dBm

(default gain is 37dB).

5 If you can only supply 12V power voltage , the DC-DC adapter

(dimension figure is attached ) will be needed.

1PCS*Power Amplifier
