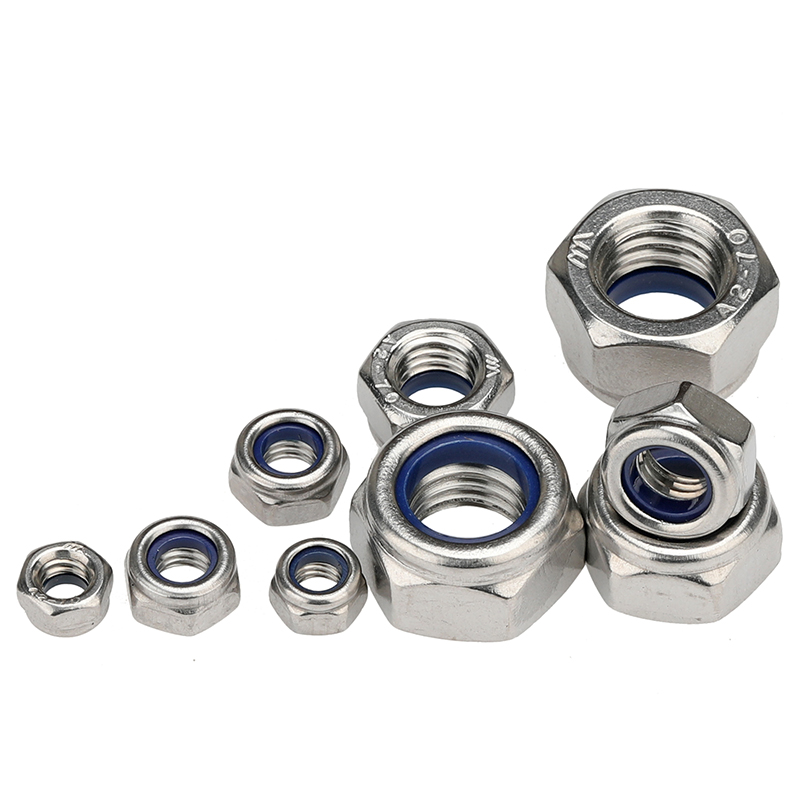

20pcs Stainless Steel Nyloc Nylock Lock Nuts M2 M2.5 M3 M4 M5 M6 M8 M10 M12 2m 4mm 6mm DIN 985 Hexagon Anti-slip Self-lock
$2.51 – $8.90
- Description
- Additional information
Description
Please Select Size From Drop Down Options Above
A2/70 Stainless Steel- DIN 985
Thread diameter:
2mm(M2) / 2.5mm(M2.5) / 3mm(M3) / 4mm(M4) / 5mm(M5) / 6mm(M6)
8mm(M8) / 10mm(M10) / 12mm(M12) / 14mm(M14) / 16mm(M16)
Thread pitch
0.4mm(M2) / 0.45mm(M2.5) / 0.5mm(M3) / 0.7mm(M4) / 0.8mm(M5) / 1.0mm(M6)
1.25mm(M8) / 1.5mm(M10) / 1.75mm(M12) / 2.0mm(M14) / 2.0mm(M16)
Note: there is deviation due to measure, if you mind, please not bid
Dimensions
| Thread | Diameter | Thread Pitch | Nut Height | Spanner/ Wrench Size |
|---|---|---|---|---|
| M2 | 2mm | 0.4mm | 2.5mm | 4mm |
| M2.5 | 2.5mm | 0.45mm | 3.8mm | 5mm |
| M3 | 3mm | 0.5mm | 4mm | 5.5mm |
| M4 | 4mm | 0.7mm | 5mm | 7mm |
| M5 | 5mm | 0.8mm | 5mm | 8mm |
| M6 | 6mm | 1mm | 6mm | 10mm |
| M8 | 8mm | 1.25mm | 8mm | 13mm |
| M10 | 10mm | 1.5mm | 10mm | 17mm |
| M12 | 12mm | 1.75mm | 12mm | 19mm |
Additional information
| is_customized | Yes |
|---|---|
| DIY Supplies | Metalworking |
| Origin | Mainland China |
| Certification | NONE |
| Model Number | Nylock Lock Nuts |
| Material | A2 304 Stainless Steel |
| Size | M2 M2.5 M3 M4 M5 M6 M8 M10 M12 |
| Type | Nylock Lock Nuts |
| Standard | DIN 985 |
