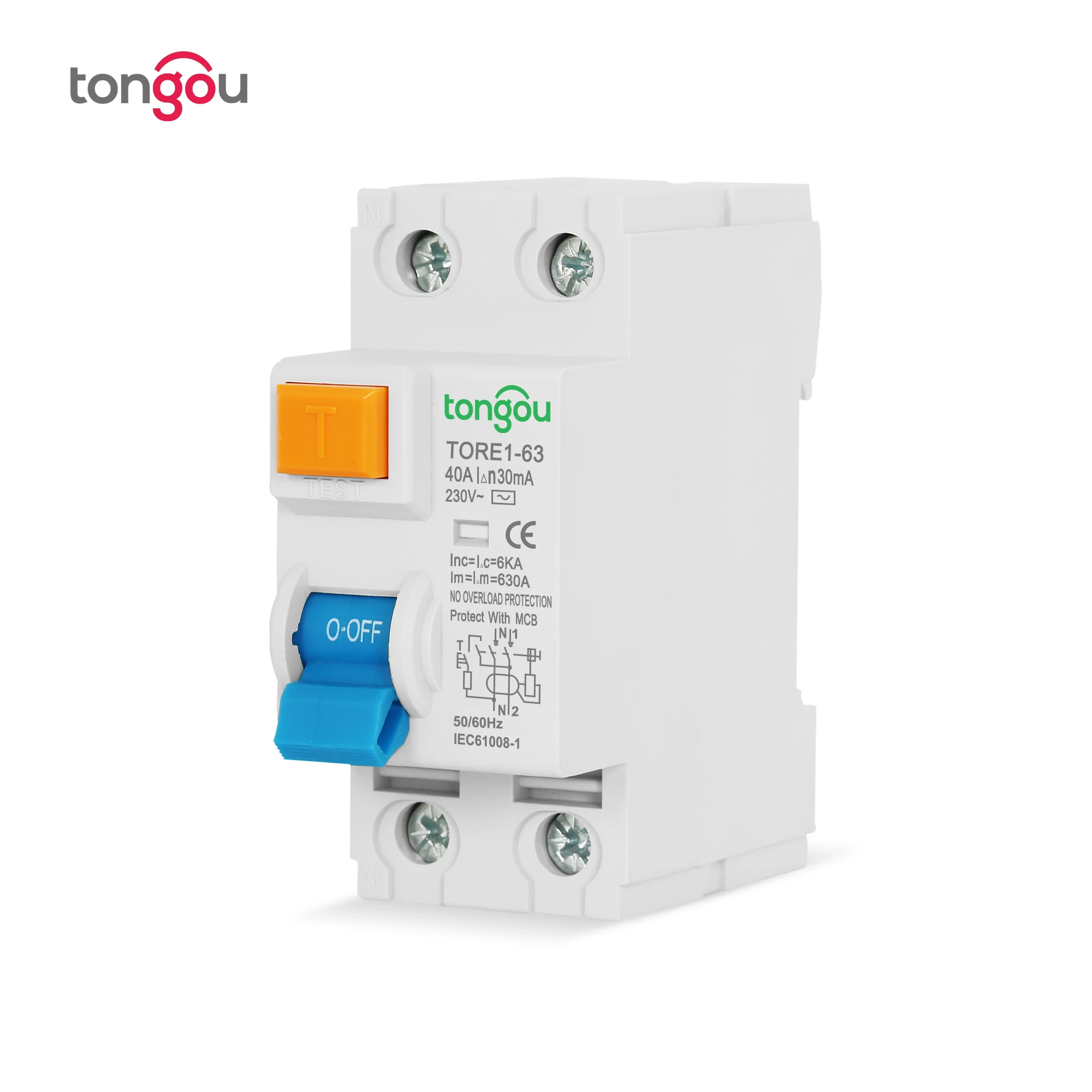

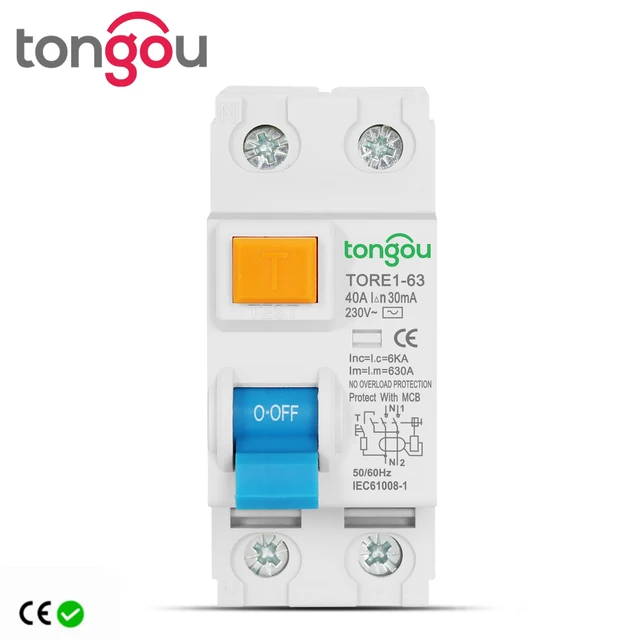

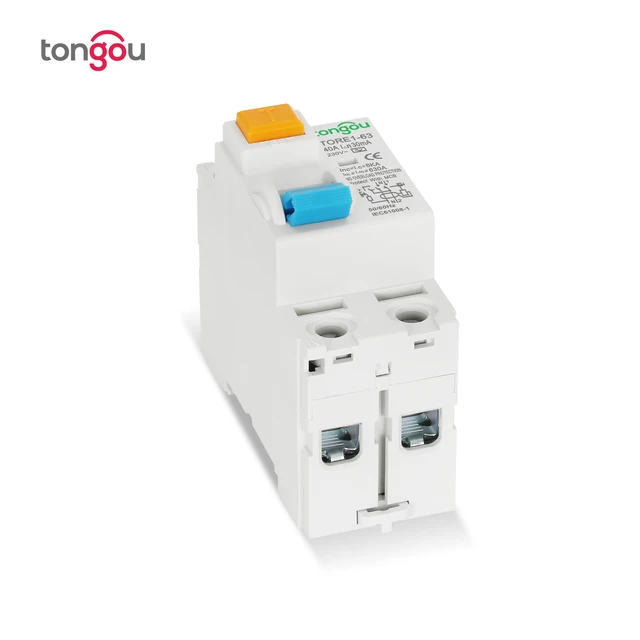

2P 16A 63A 10mA 30mA 100mA 6KA RCCB RCD 230V Electromechanic Residual Current Circuit Breaker Differential Breaker Safety Switch
$12.93
- Description
- Additional information
Description
This product has no over-current protection function, please use it with MCB (please click on it)
-

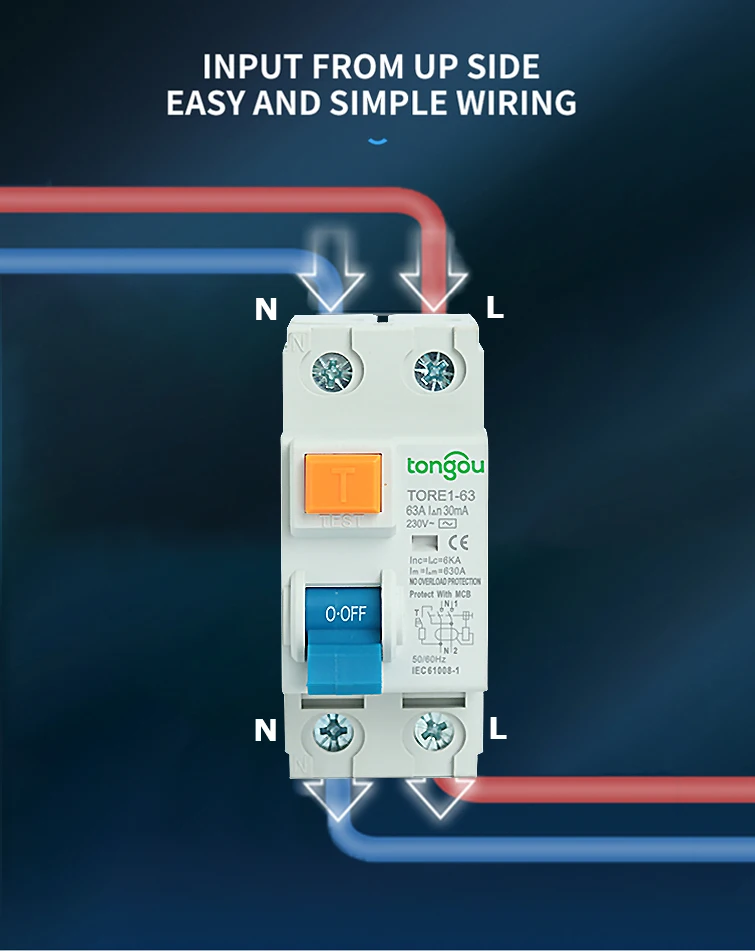

Tip: Please noted the input MUST from TOP side, or will damage the product.
Tips: 30mA, 100mA, 300mA is electromechanical type, 10mA is electronic type.
The default voltage is 220V~250V. If you need 110V voltage, please contact customer service, item needs to be customized.
General
Residual Current Circuit Breaker is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 63Amp.
The RCCB provides indirect protection to the operator’s body under such condition that the exposed live parts should be connected to a proper earthing pole.The RCCB also provides protection against the fire danger caused by earth fault current due to function failure of over-current protection device.
Special tips:
1. RCCB with rated sensitivity up to 10mA could be used as supplementary protecting device in case other
protecting device fails its protection against electric shock.
2. RCCB designed for household installation and other similar application, is for non-professional operation,
and no maintenance is required.
3. RCCB provides on protection against electric shock resulted from direct contacts of both protected lines,or
leakage current between these two lines.
4. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to RCCB as precaution against potential surge voltage and current occurring at its power input side.
5. Satisfying conditions and applications as mentioned above,RCCB with “ON-OFF” indicating device is considered suitable for isolation function.
Quality and safety
The choice of tongou quality
safety switch
New upgrade
CE certification/ Flame retardant
enclosure /viewable window
Comfortable handle/Precision manufacturing/Durable
Are you worried about these problems?
About electricity consumption
electricity safety
X Prevent electric shock
Residual Current Circuit Breaker
Keep your electricity safety at all times
Leakage protection features
Mechanical life 20000+
/Electrical life 10000+
Note: electrical life: the number of times to turn on and turn off the rated current under the maximum working voltage
The above data comes from the inspection report of Zhejiang low voltage electrical products quality inspection center
D-handle
Ergonomic design
Handle arc D-shaped design reduce pressure, better fluctuation
Cold and heat resistant environment
Product Details
More intimate design, just for your convenience and safety
1.Safety of thermosetting shell
Thermosetting plastics are used at high
temperatures Or other conditions of curing
or not melting plastic
2.visualization window
When the circuit breaker trips due to a fault, the window will display red
3.convenient design
Specially designed for bus bar,
can be combined into Direct
4.installation by end user
according to MCB
IEC / EN standard
WithCE CB Certification
High quality high quality guaranteed
5.ergonomic design
Improve operation comfort
Increase appearance saturation.
Additional information
| is_customized | Yes |
|---|---|
| Model Number | TORE1-63 |
| Type | Earth Leakage |
| Brand Name | TONGOU |
| Origin | Mainland China |
| Certification | CE |
| Model | 30mA, 100mA, 300mA are electromechanic type |
| Model 2 | 10mA is electronic type |
| Rated making and breaking capacity | 630A |
| Breaking capacity | 6KA |
| Rated voltage | Default 230V. 110V customized |
| Standard | IEC/EN 61008-1 |
| Rated frequency | 50/60Hz |
