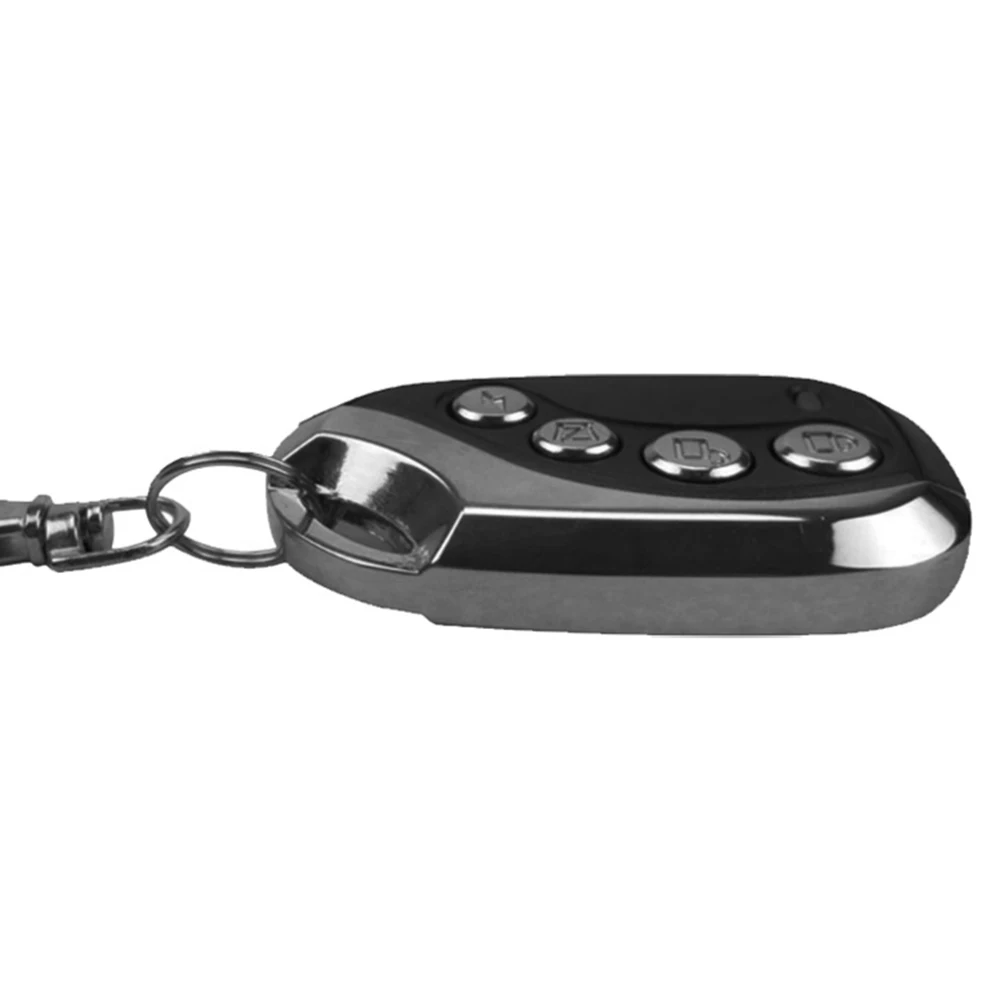

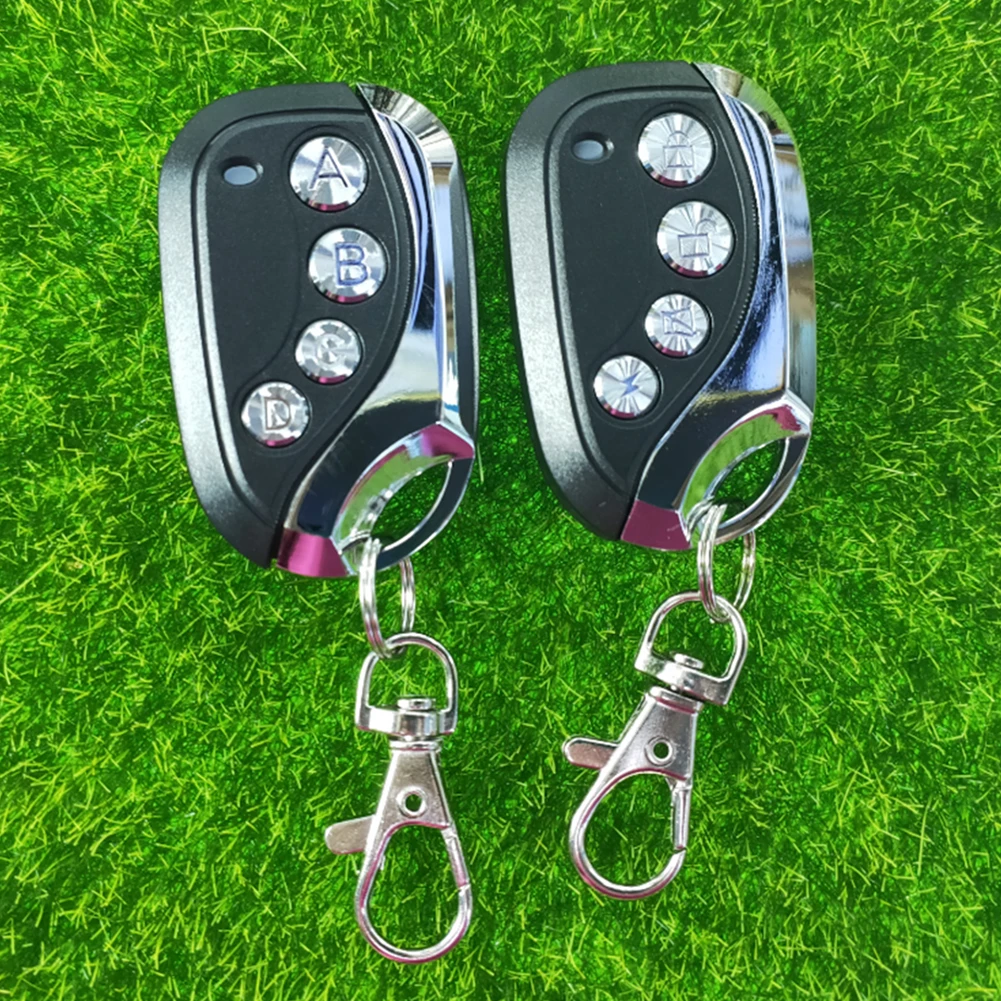

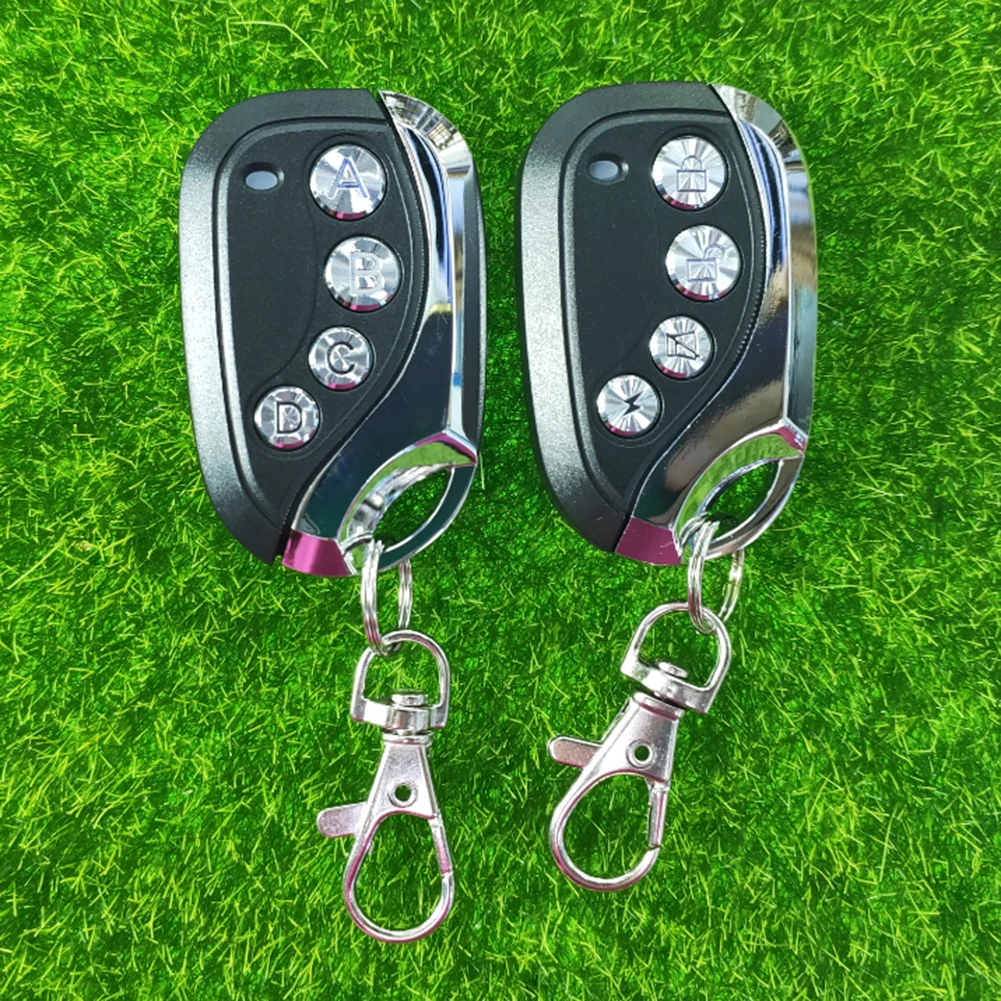

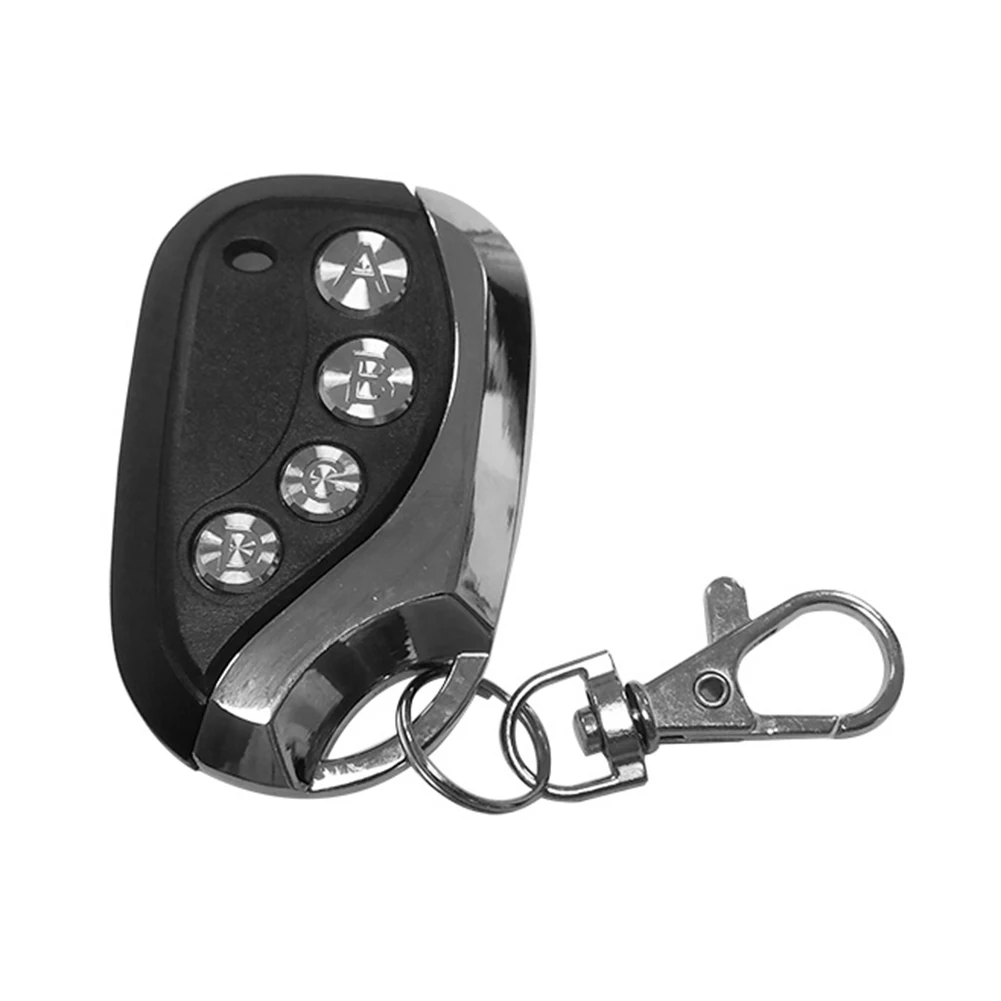

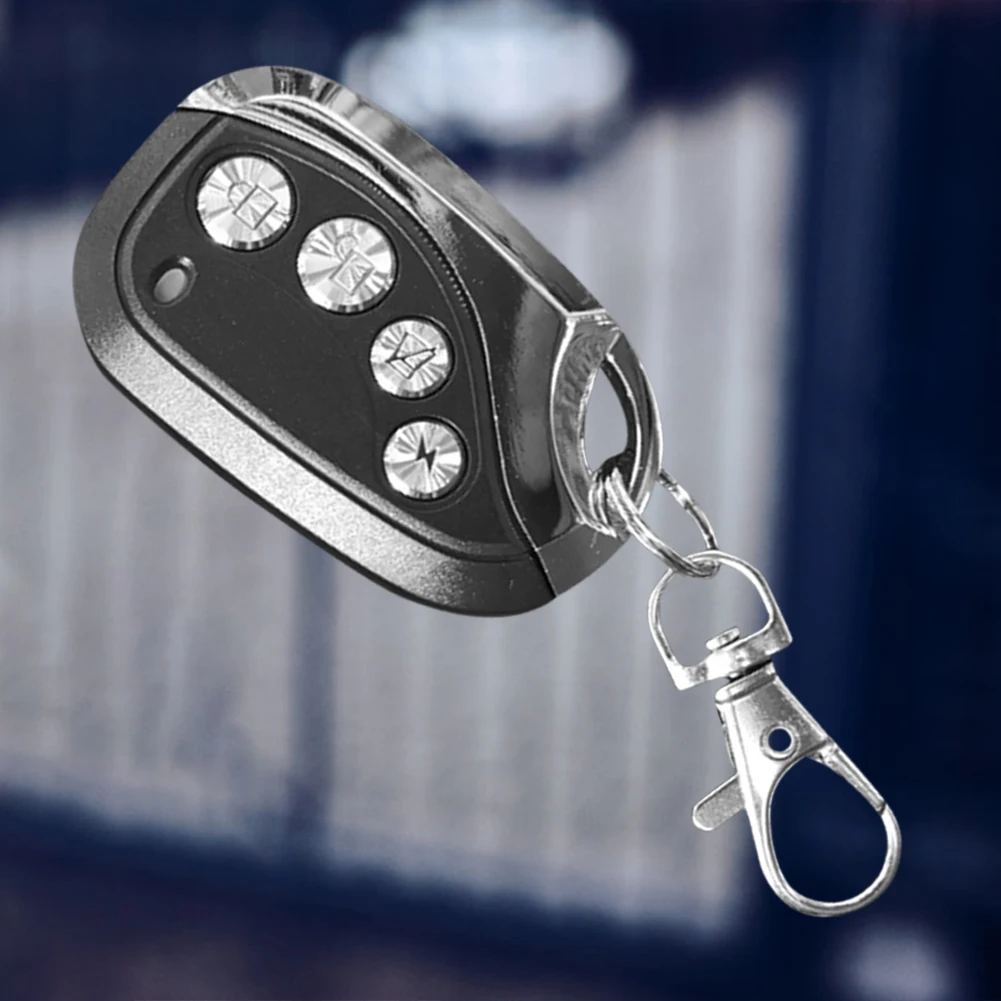

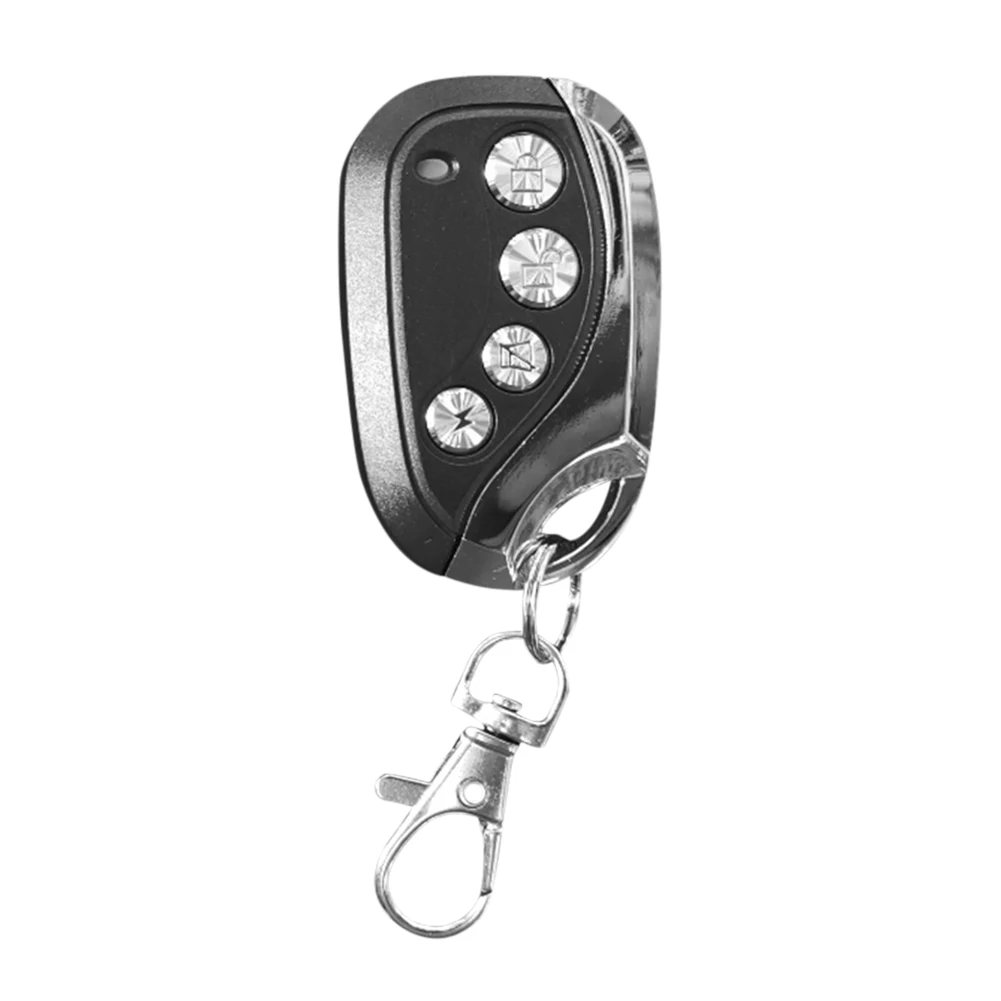

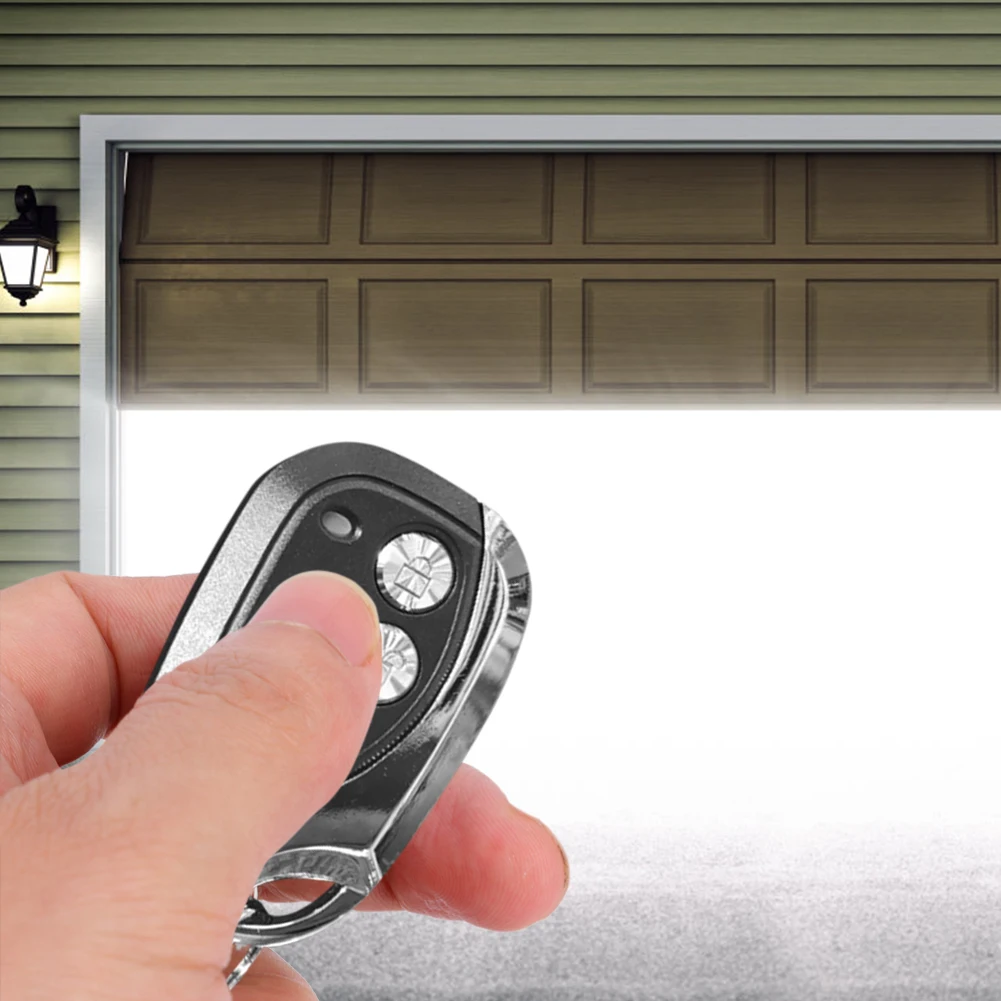

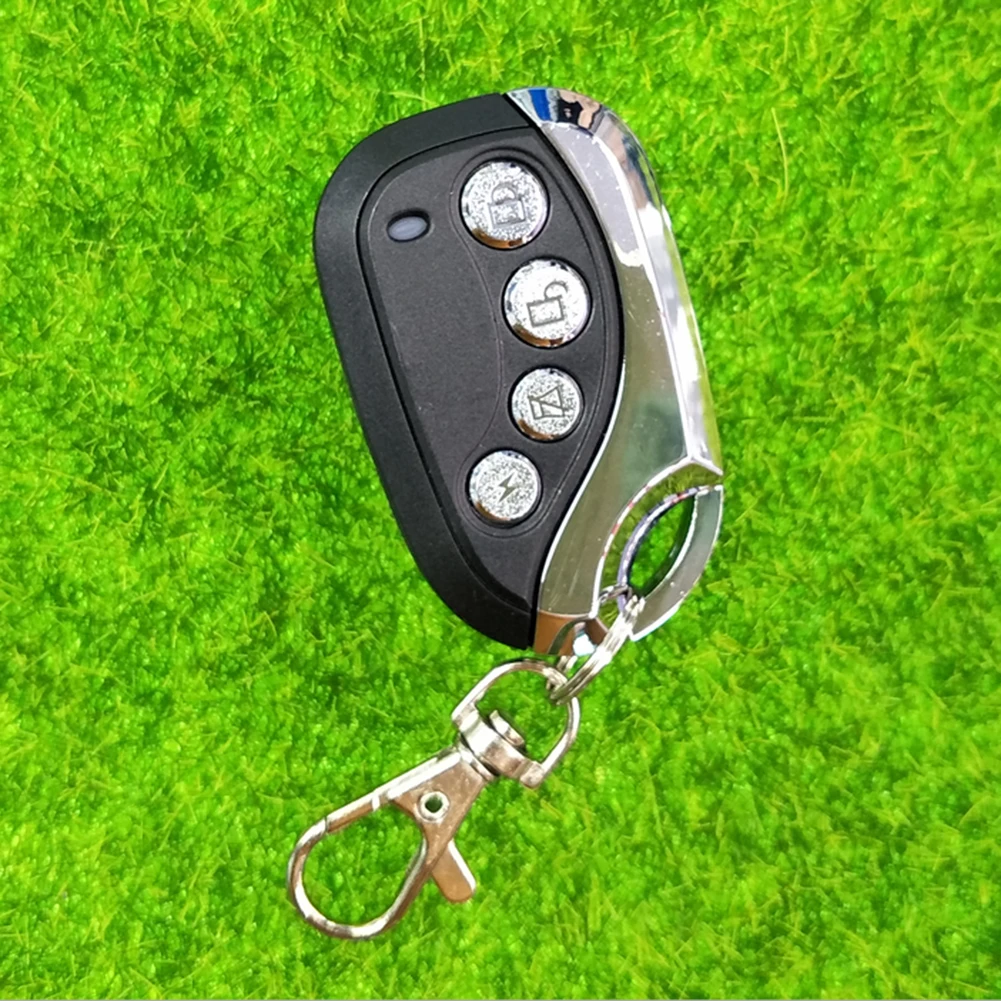

433Mhz Copying Remote Control 4 Button Duplicator Key Electric Door Controller for Gadget Gate Garage Door for Intelligent Tools
Feature:
1. Multifunctional: This Rf copy remote control adopts multi-variable and personalized design. It is widely used, suitable for road brake, garage door, car/motorcycle wireless remote control replication and regeneration. Humanized simple design, so that everyone can quickly get started.
2. High Performance Radio Frequency: This smart copy remote control adopts high performance radio frequency chip. Its crystal vibration frequency is stable and accurate. This makes the key of the remote control work stably, and there will be no induction instability, unable to remote control and other failures.
3. Long Transmission Distance: The transmission distance of this electric door remote control is very long. In addition, its control can be multiple azimuthal, non-directional, high transmission sensitivity, no signal barrier.
4. Fast Copying Speed: The remote door key adopts the way of self-copy. It can copy most fixed code and learn code wireless remote control. Meanwhile, its copy speed is fast and operation is simple. When you’re done copying, it won’t affect the original remote either.
5. Automatic Code Matching for Copying: This intelligent remote control realizes copy automatic code matching. After copying. You can just use it, no coding required. This will save you a lot of time and energy. It provides more convenience to your life.
Specification:
Certification: NONE
Origin: Mainland China
Use: Electric Door
Wireless Communication: RF
Model Number: KB-079C
Channel: 4
Frequency: 433 MHz
Model Name: Remote Control
Type (Optional): Letter key/lock key
Battery type: 12V
Working mode: Copy
Case material: ABS
Working current: ≤12MA
Launch range: 50M(in open environment)

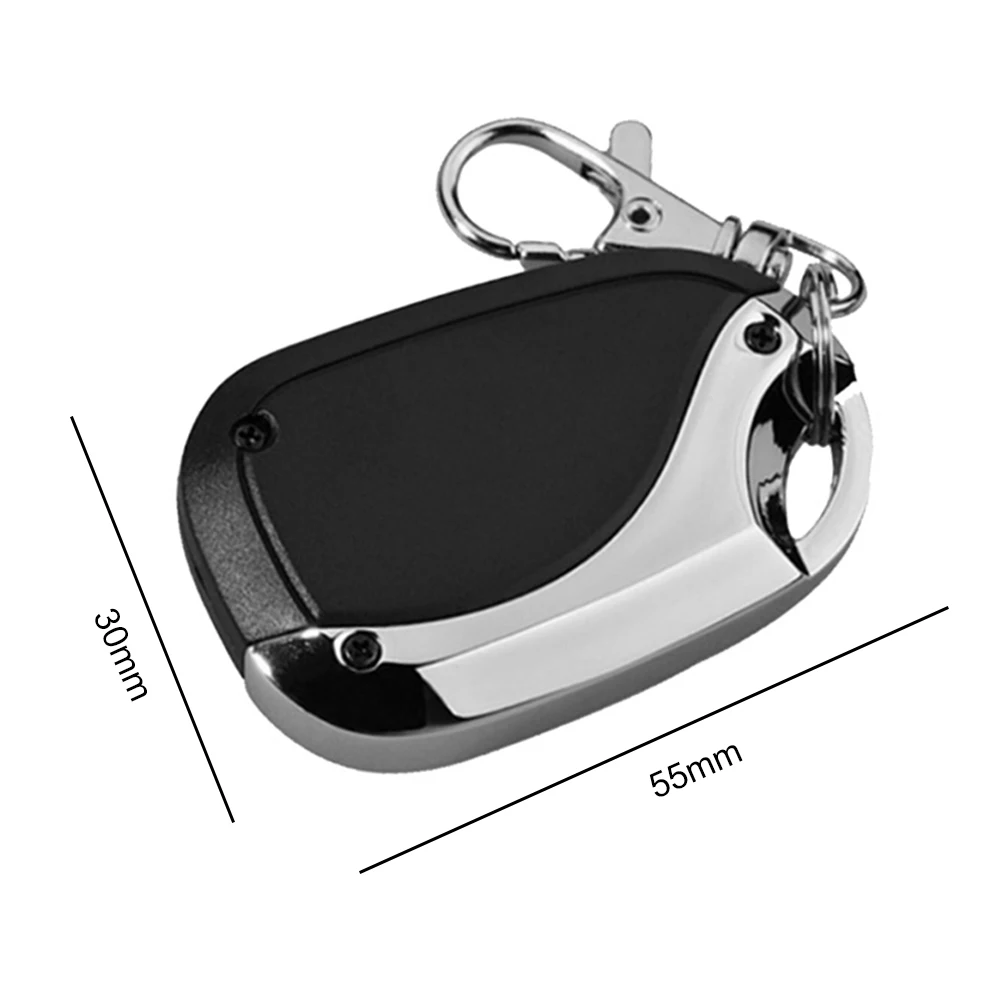

Size: 55 x 30 x 12mm/2.2 x 1.2 x 0.5in
Function description:
(1) code (learning)
The original remote control and the copy remote control as close as possible, first hold down a button of the original remote control, when the light is on immediately hold down a button of the self-copy remote control for about three seconds, the LED will blink for 3 times and then quickly blink, which indicates that the address code of the original remote control this key has been learned successfully. Learn other keys in the same way.
(2) Clear code
After holding down the unlock key and the lock key for 2 seconds at the same time, the LED light will flash for 3 times. At this time, keep the lock key held down and release the unlock key. Press the unlock key for 3 or 4 times within 5 seconds, and the indicator light will flash quickly, indicating that the code has been cleared.
Test whether the existing code of the remote control has been successfully cleared: when you finish the code clearing action, you can press any key of the copy remote control. If the LED does not blink immediately, it will blink 2 seconds later, it means that the original code of the copy remote control has been completely cleared. If the LED still flashes immediately and quickly, it means that the code still exists and needs to be cleared again.
(3) Restore the cleared code
The copy remote control has recovery function. If you accidentally clear the address code of the normal copy remote control in use, you can press the start and mute keys (the following two keys) on the remote control at the same time for about three seconds, the LED will blink for 3 times and then start to blink quickly, which indicates that the deleted address code has been successfully restored.
Warm tips:
(1) Before using our copy remote control to copy, the existing code of the self-copying remote control should be cleared first.
(2) Self-copying remote control can not copy scroll code, such as HCS301.
Copy the chip: PT2242, PT2260, PT2262, EV1527, 527, PT2240, SMC918, HT-12E, AX5326-3, AX5326-4, AX5026, HT600, HT680, HT6207, HT6010, HT6014, MC145026, HT640 and so on
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
