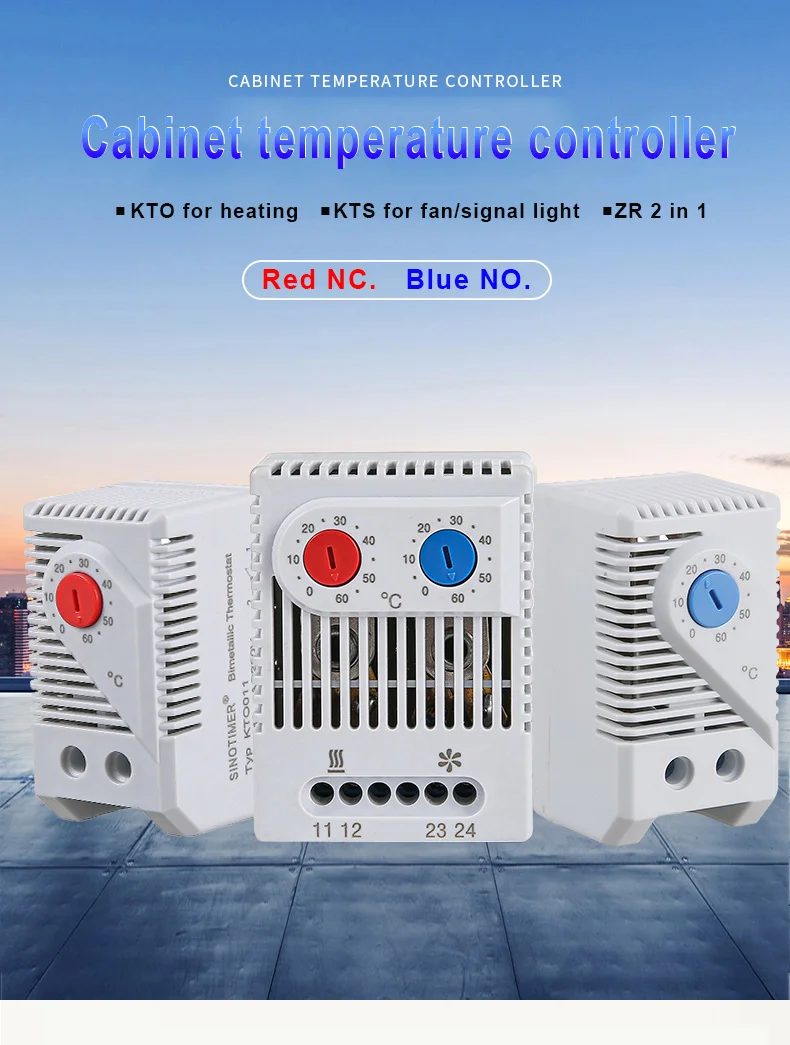

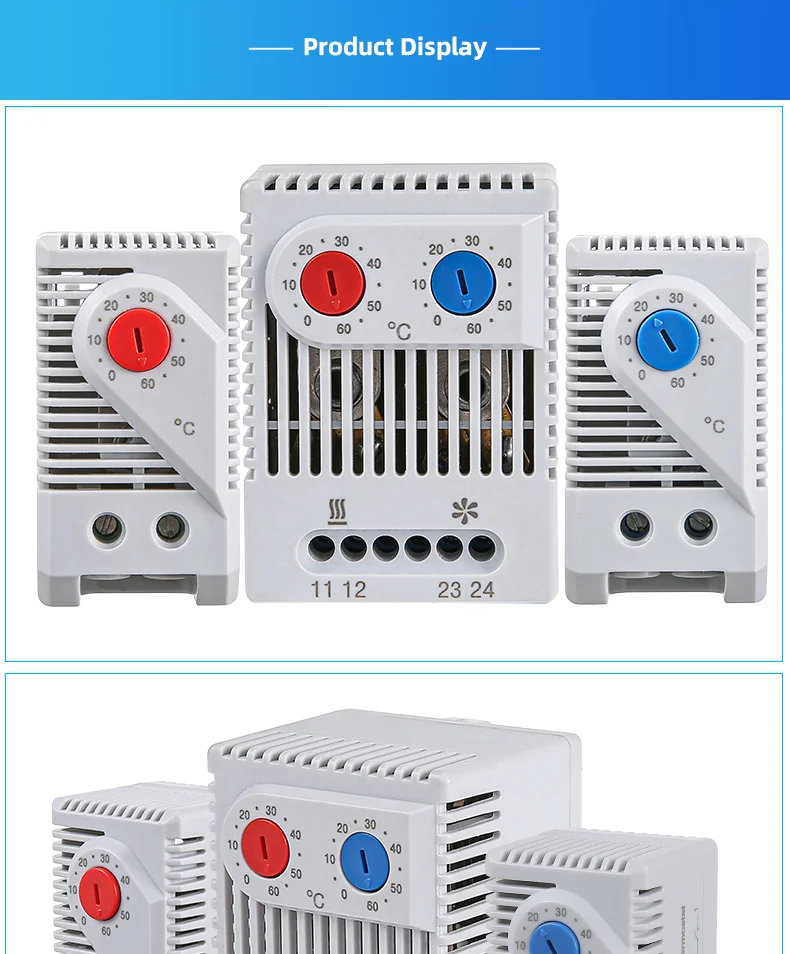

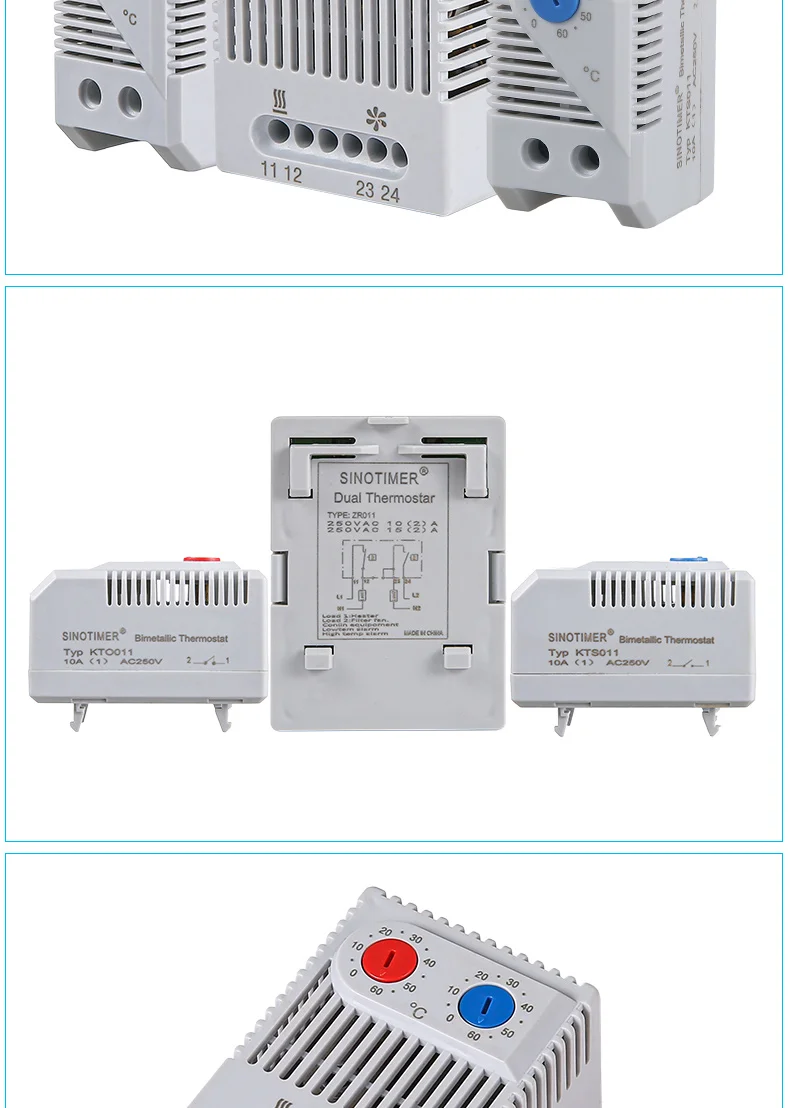

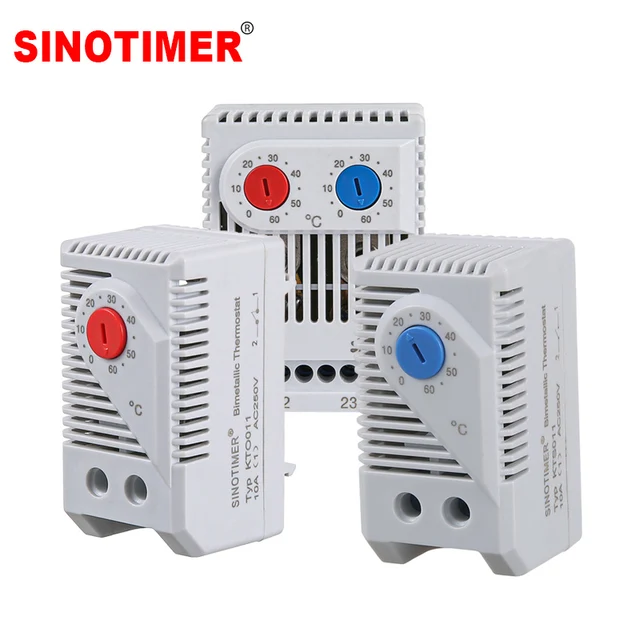

Compact Bimetal Thermostat 0-60°C KTO011 KTS011 DIN Rail Mounted Mechanical Temperature Controller Normal Open Close KTO 011 KTS
$1.95 – $4.53
- Description
- Additional information
Description
0-60'C KTO011 KTS011 Din Rail Mini Compact Bimetal Thermostat Mechanical Temperature Controller Normal Open Closed

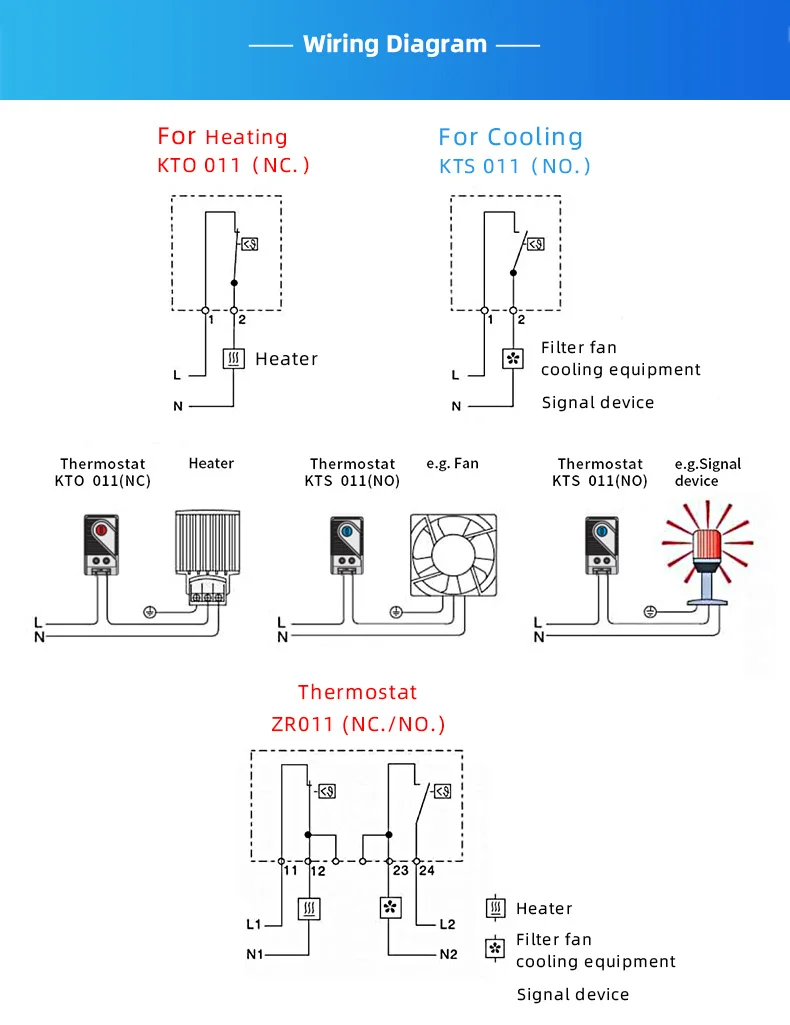

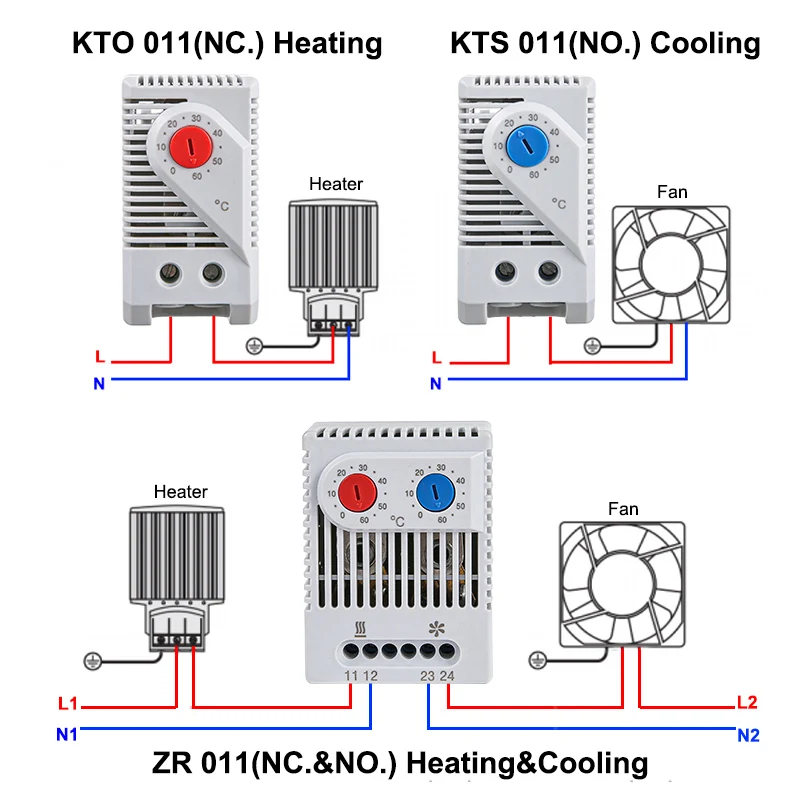

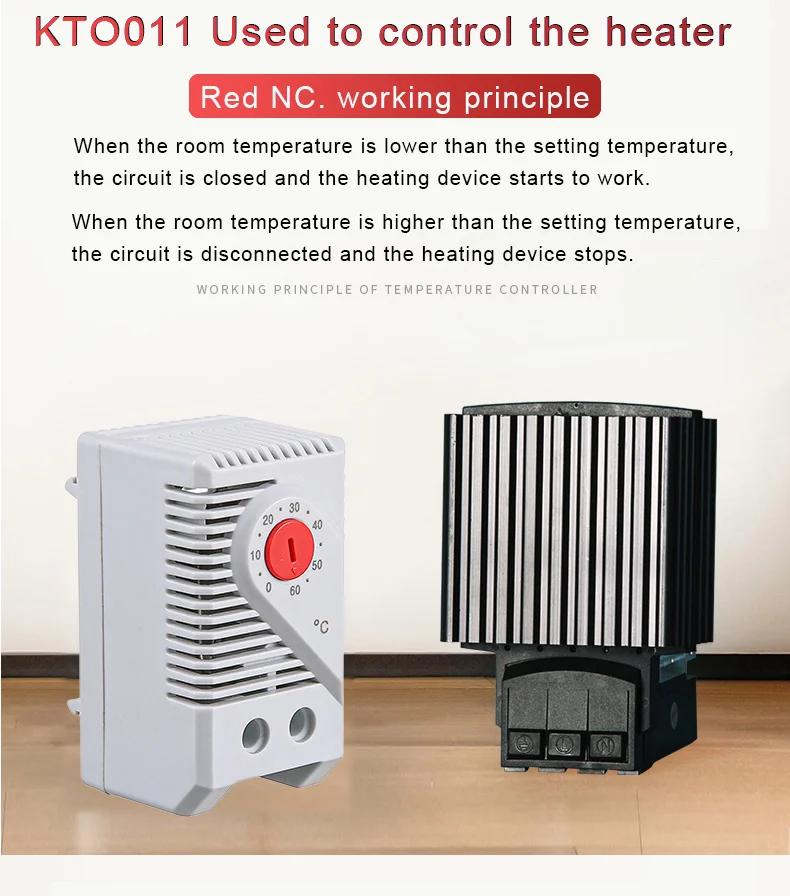

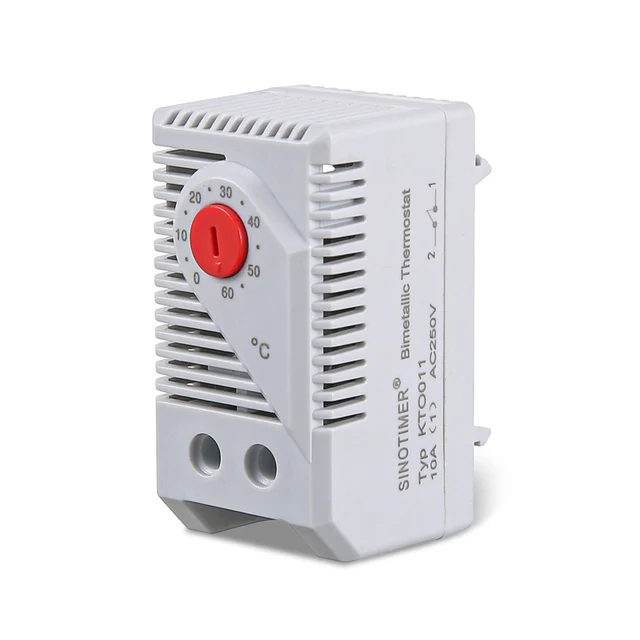

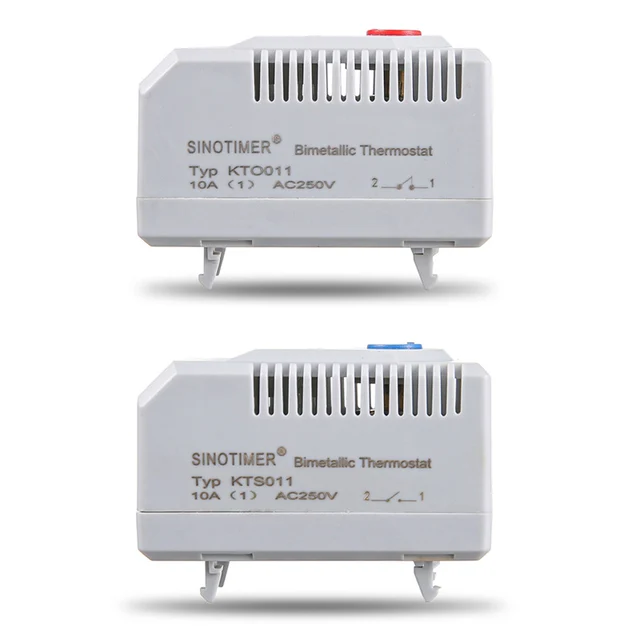

KTO 011: heat thermostat (normally closed); Contact switch for regulation of heaters.

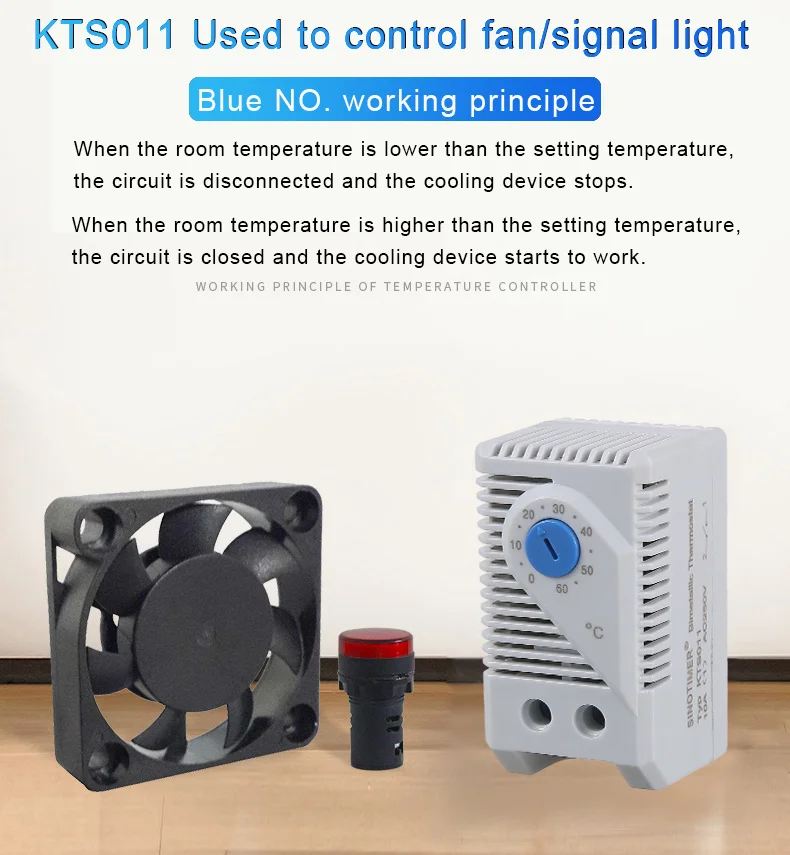

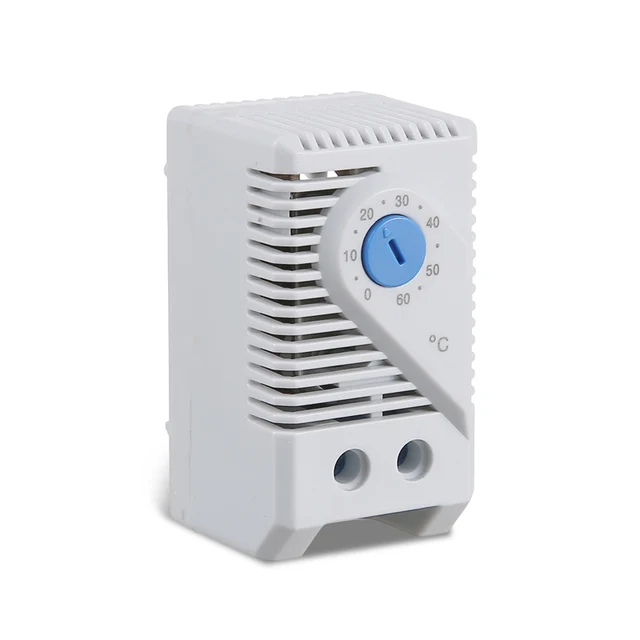

KTS 011: cool thermostat (normally open); Contact device for controlling fans of filters and heat exchangers or for switching a signal developed when a temperature limit is exceeded.

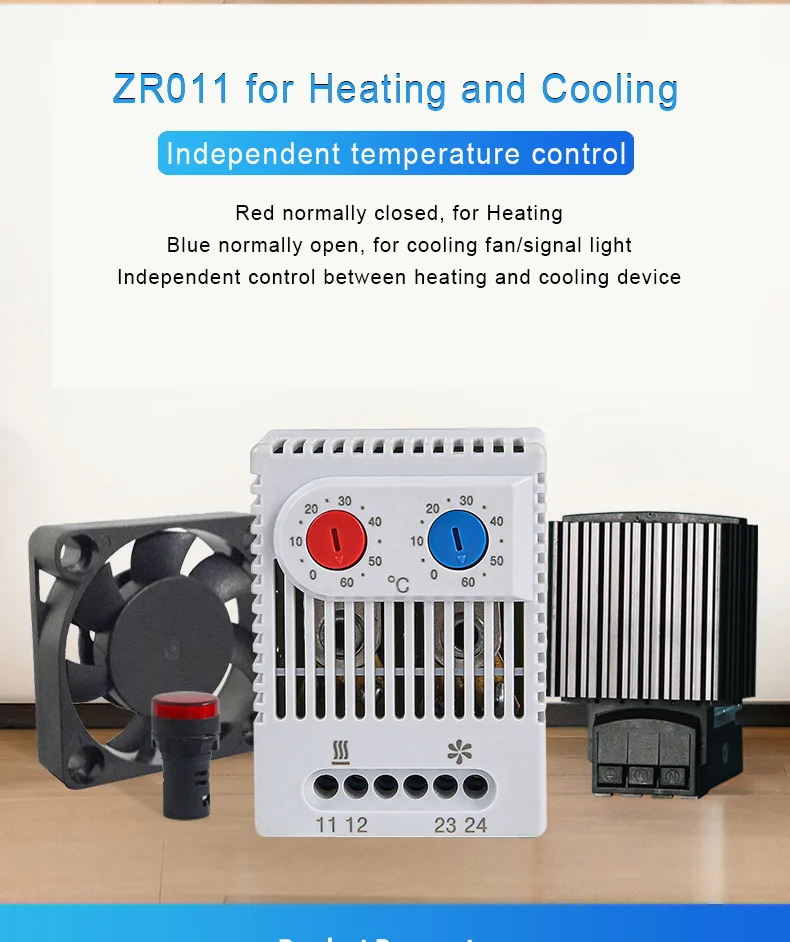

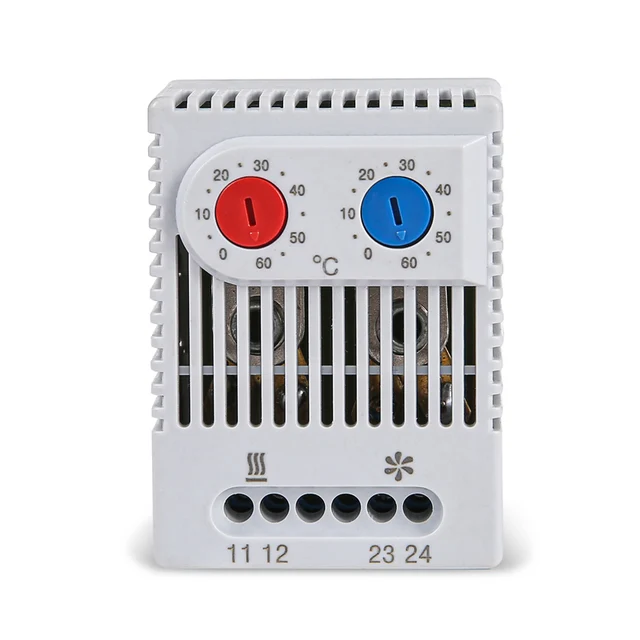

ZR 011: warm and cool combined; Manage heating and cooling devices yourself.
Application:
Small mechanical temperature controllers are used to control electrical heaters or filter cooling fans in electrical cabinets, which are accidents caused by temperature factors.

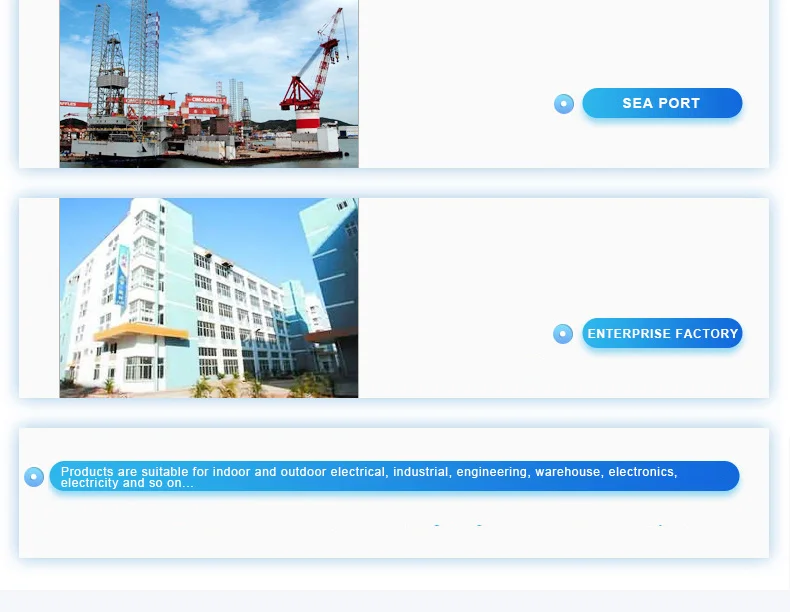

Widely used in communication, wind generation, fire equipment, ships, petrochemicals, large factories, coastal factories, docks, sewage treatment plants, equipment, etc.
In addition, they can also be used as switching contacts for signaling devices used as low temperature or high temperature alarms. Adjustment range 0℃ to 60℃.
This product has the characteristics of easy installation, small size and long service life. It can automatically start electric heaters and fans, produce condensed water droplets, maintain a good working environment, and protect components. It can be fixed on standard DIN rails (DIN15, DIN32, DIN35)

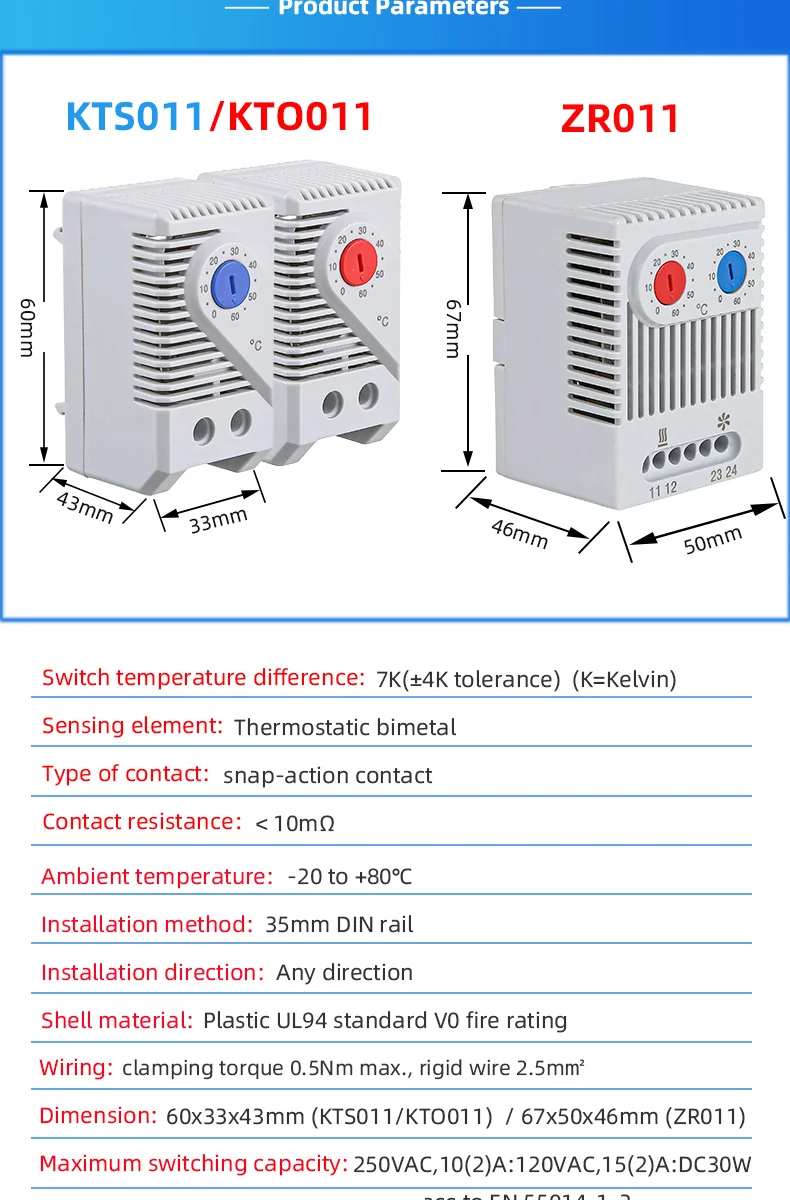

Product description:
Switch temperature difference: 7K (tolerance ± 4K)
Temperature control range: 0~60°C
Sensor element: thermostatic bimetal
Contact Type: Momentary Contact
Service life:> 100,000 cycles
Connection: Clamping torque 0.5nm Max, hard wire 2.5mm
Mounting: 35 mm DIN rail clamp, EN60715 (or for EF 118 series output filter)
Housing: plastic, gray light
Operating/Storage Temperature: -20 to +80°C (-4 to +176°F)
Operating Humidity/Storage Humidity: Max. 90% RH (non-condensing)
Protection type: IP20
Peculiarities:
Our thermostat body is made of high quality plastic with fine workmanship, environmentally friendly, safe, durable to use.
The temperature control range is from 0°C to 60°C, ideal for controlling the heater, filter fan, cooling equipment and other alarm device in your home, market and so on.

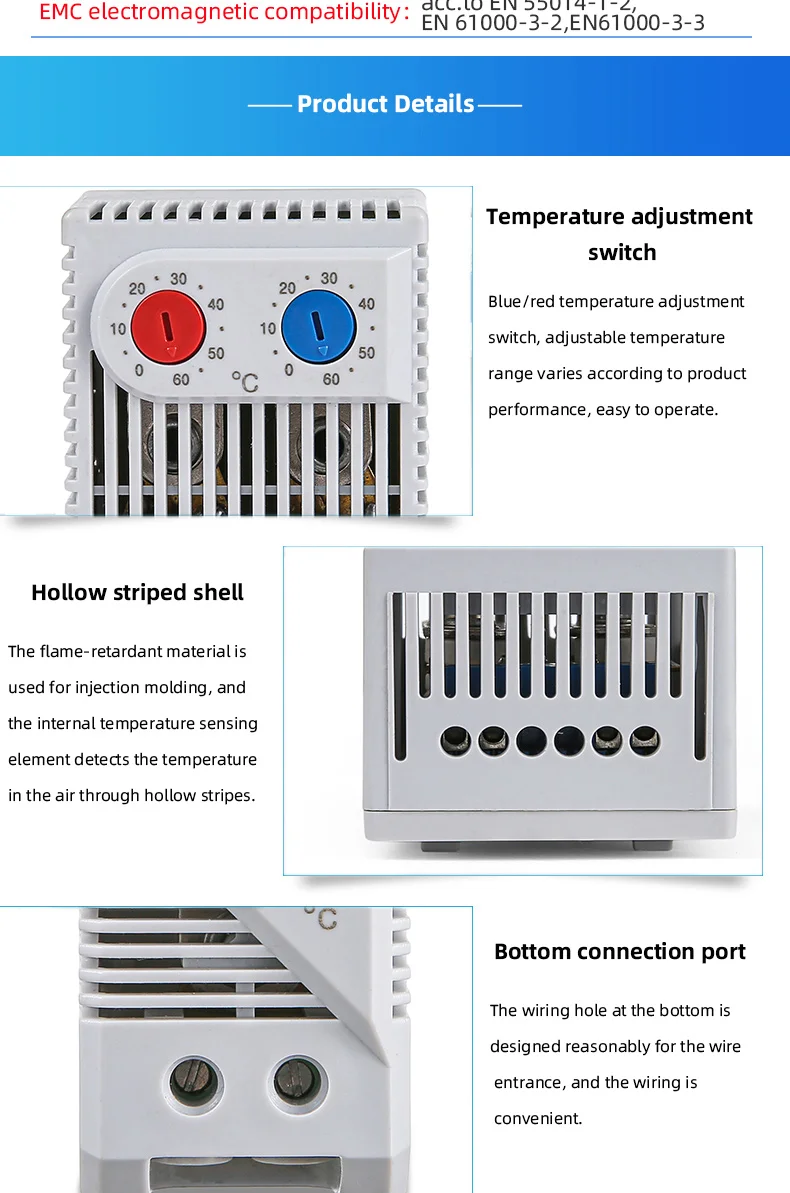

It has large data scales and an adjustable button for easy and convenient temperature adjustment, and the button color (red/blue) of the thermostat can be chosen for you.
Standard rail clamp, 4 feet holders, easy to install and disassemble.

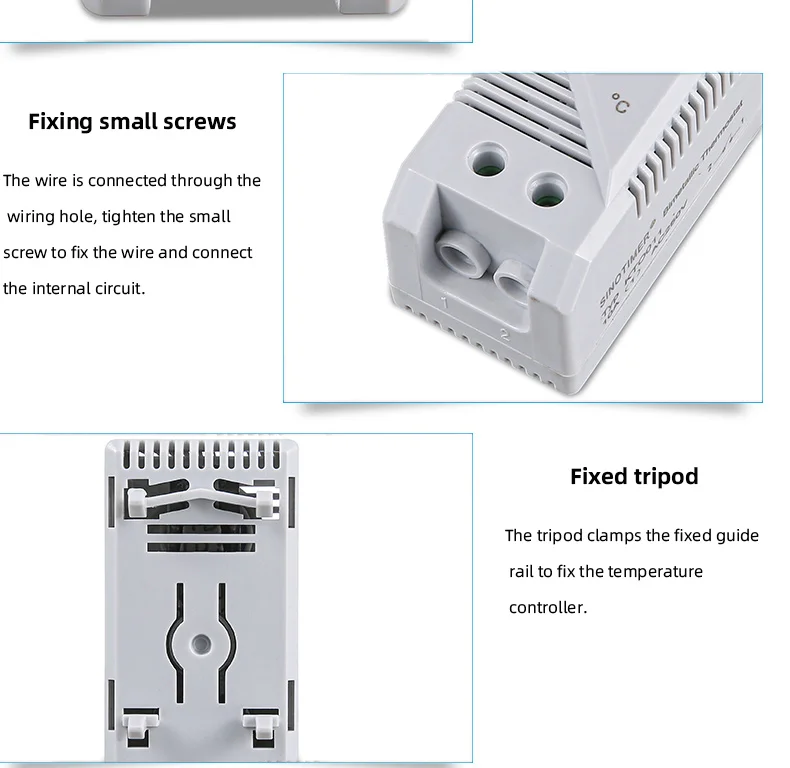

Loop interfaces at the bottom of the thermostat can make the wired connection stronger and safer.
Installation Recommendations:
Hysteresis (switching difference) temperature control must be taken into account:
7K ± 4K (K = Kelvin)
In order to determine the actual setpoint of a normally closed contact and change the contact (when using a normally closed contact), the maximum nominal hysteresis must be included in the required minimum operating temperature.
Example for Red KTO011 for heating:
Required minimum case temperature: 5 °C (41 °F)
Temperature control hysteresis: +11K (=7K±4K)
Handle Adjustment Point Set: 16°C (61°F)
Additional information
| Theory | Temperature Controller |
|---|---|
| Display Type | Analog |
| Brand Name | SINOTIMER |
| Origin | Mainland China |
