Description

Product Support

• Need help with installation? Please contact us for the service manual.

Removing and Installing the display panel

Before disassembling the computer, follow these steps:

1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

2. Disconnect the power from the computer by unplugging the power cord from the computer.

3. Disconnect all external devices from the computer.

4. Remove the display bezel.

To remove the display panel:

The following images indicate the location of the display panel and provides a visual representation of the removal procedure.

1. Use a plastic scribe to pry the display panel from the bottom-right corner.

2. Gently start prying the display panel along the left and right sides of the display back-cover using your hands.

3. Lift the bottom side of the display panel and slide it downward to release the display brackets from the slots at the top side
   of the display cover.

4. Gently flip the display panel assembly forward, peel back the Mylar tape securing the display cable on the rear of the display
   panel.

How to find the resolution of your computer

• Select Start > Settings > System > Display.

What to Know

• Easiest: Find the Dell Laptop Model Number on the identification label on the laptop.

• Next Easiest: Right-click on Start > System > Settings (About) Screen > Device specifications.

Use the Windows System Information Window

1. Use Windows + R shortcut to open the Run box.

2. Type “msinfo32″ in the Open field.

3. Press Enter.

Go to Windows Settings

• The Windows System screen lists the device configuration. There are several ways to access the Settings screen. This method takes you directly to the About screen, where the Dell mentions the model number.

1. Right-click on the Start button and select System from the menu.

2. Windows Setting will open on the About screen.

3. The make and model number are listed under Device specifications.

Reseller Program

1. Message us today at Aliexpress to get started.

2. School Purchasing, Reseller, & Bulk Discounts.

3. Large quantity bulk discounts of up to 30% off retail.

4. 10% to 20% additional discounts available with purchasing agree.

5. We have more than 15 years in business.

6. All parts are physically in-house, and ready to ship same business day.

Additional information

Part Number	LE15642
Item Type	Laptop LCD Screen
Model Number	1561366-UD30-359TN
Compatible Brand	DELL
Application	Laptop
Brand Name	CRO Parts
Origin	Mainland China
Type	LCD Screen

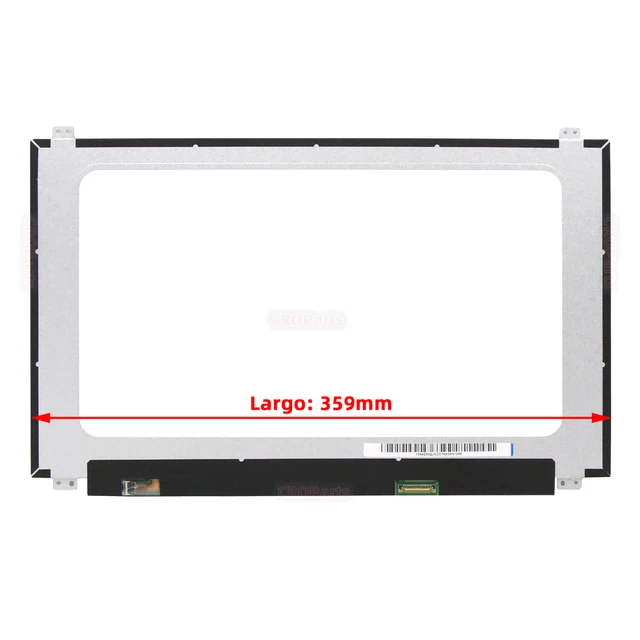

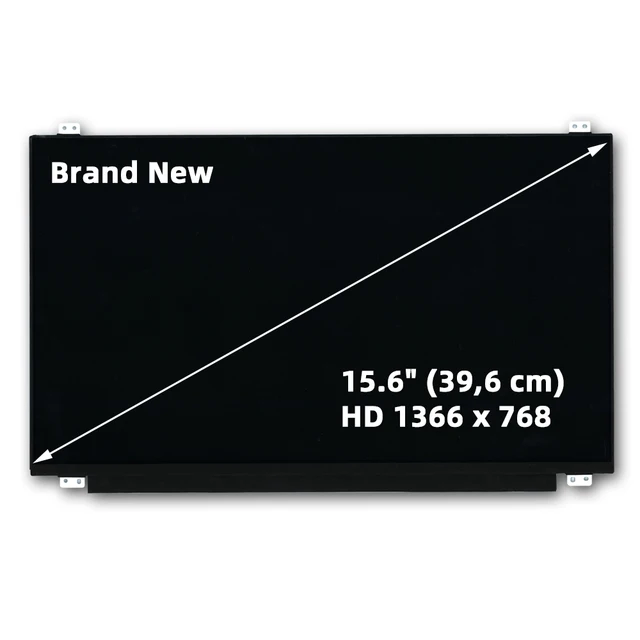

Size	15.6 Inch
RESOLUTION	1366*768

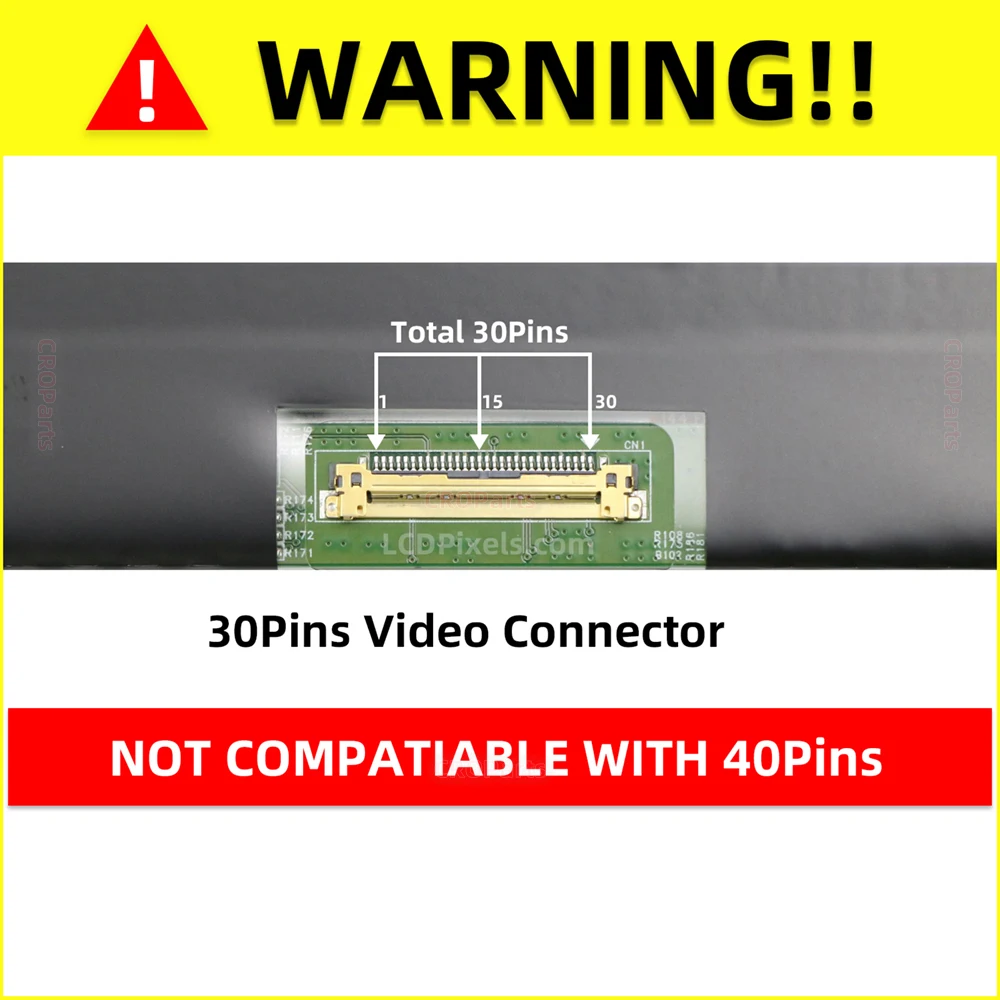

Video Connector	30 Pins
Condition	New Grade A+
Frequency	60Hz

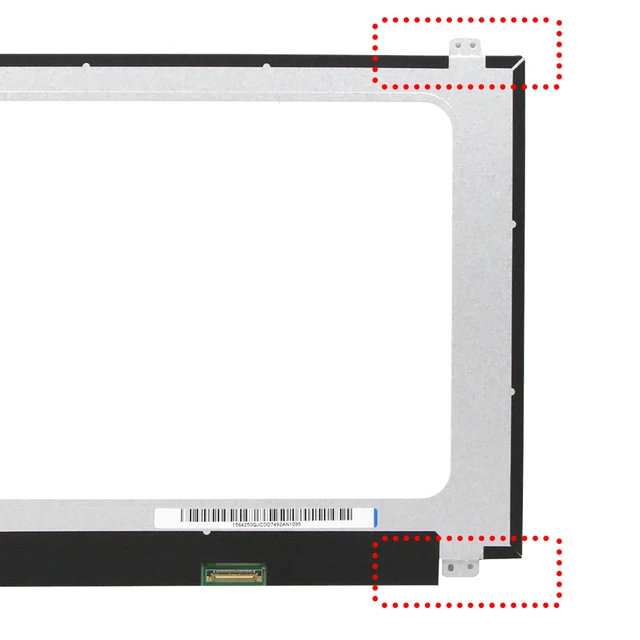

Mountings	NO Brackets
