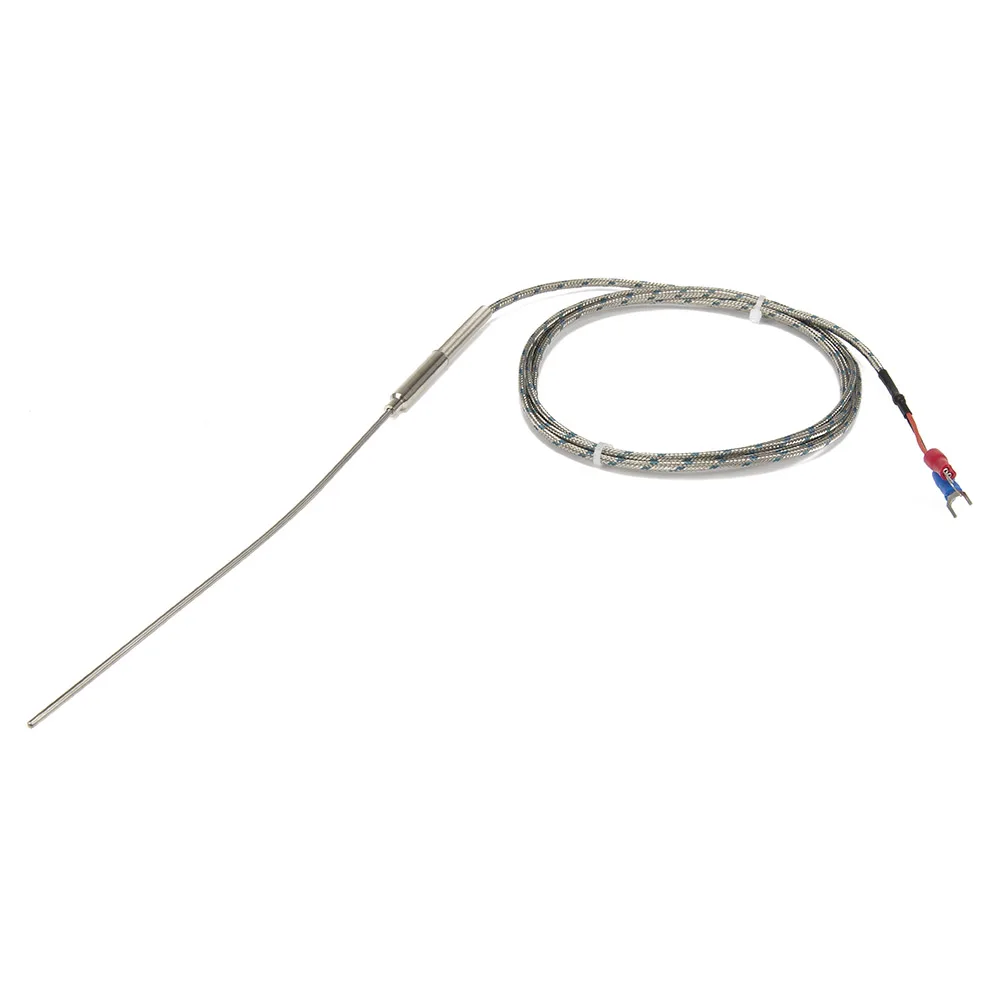

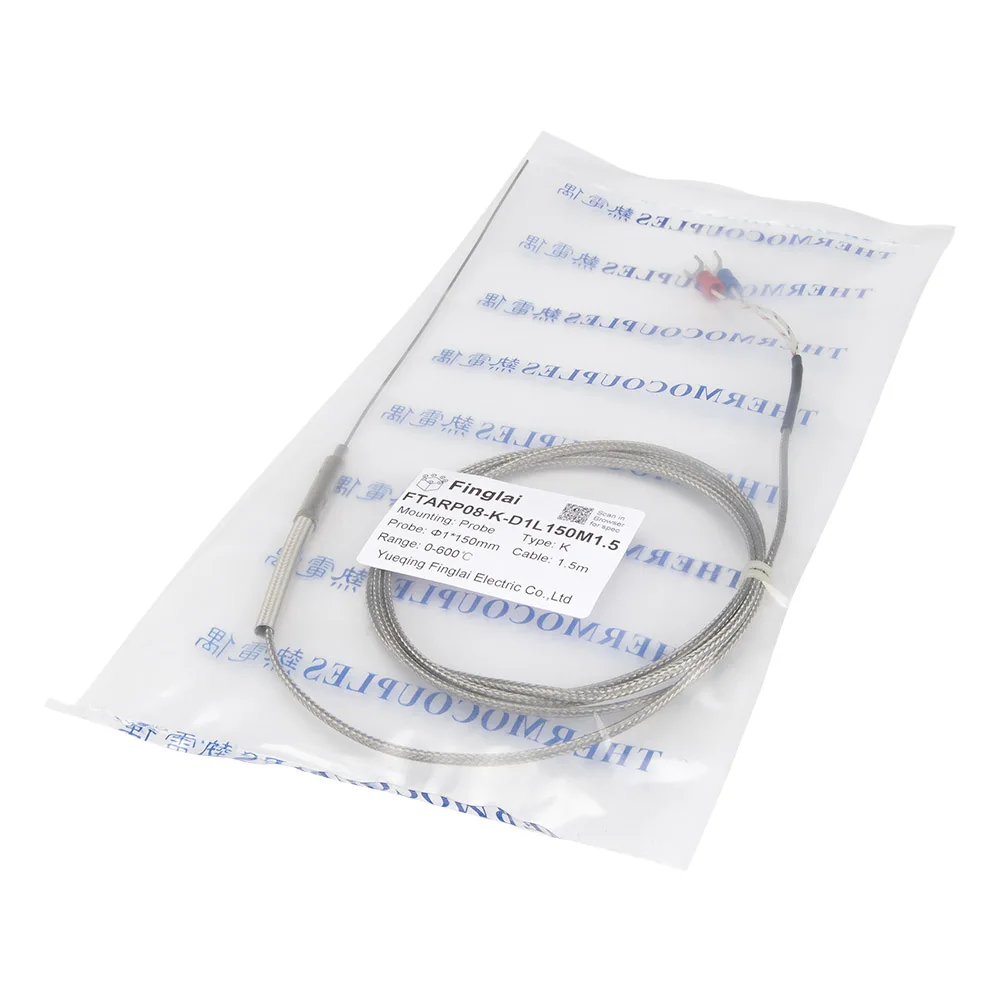

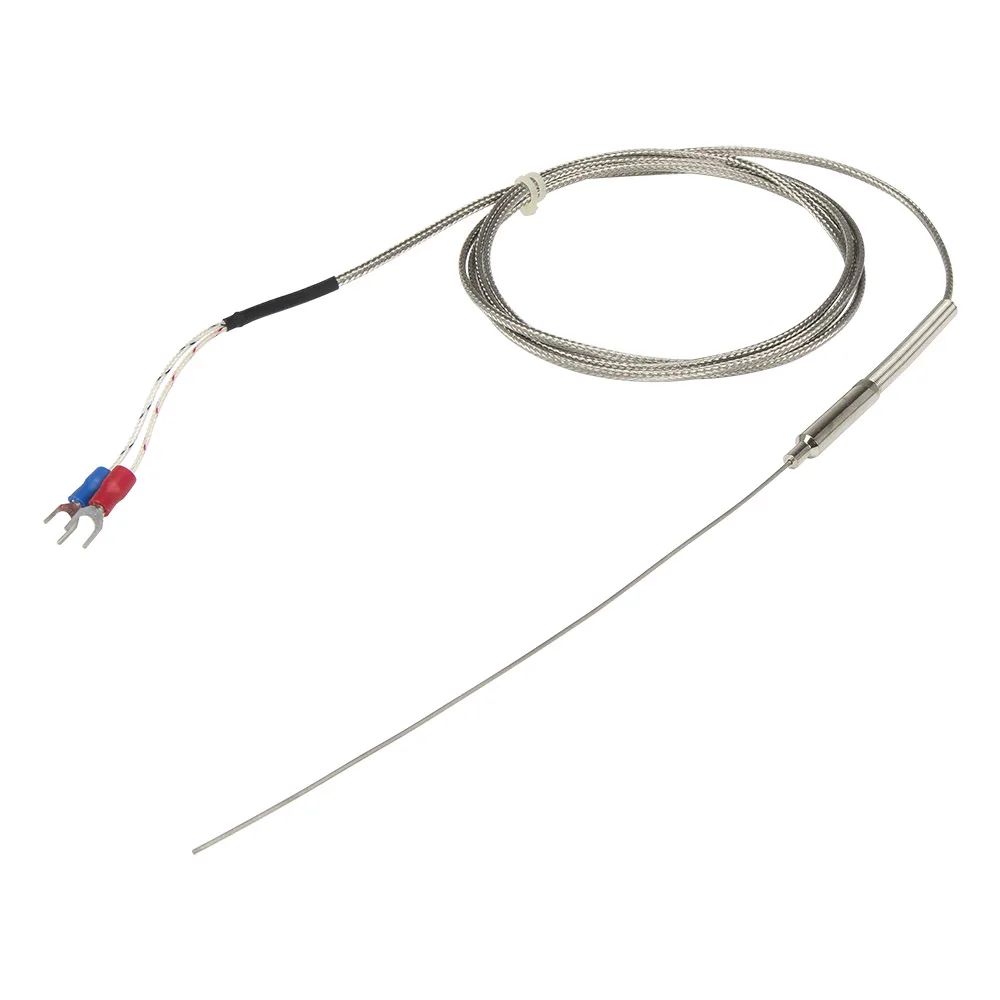

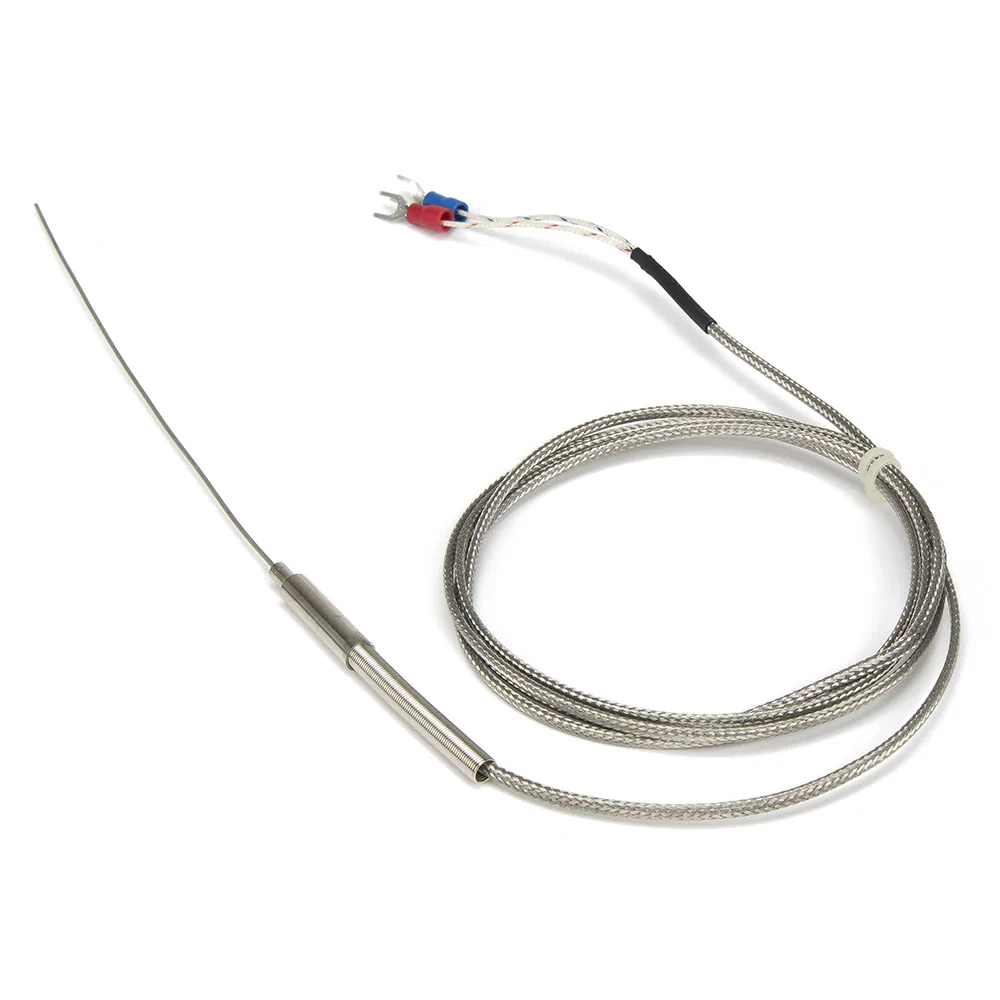

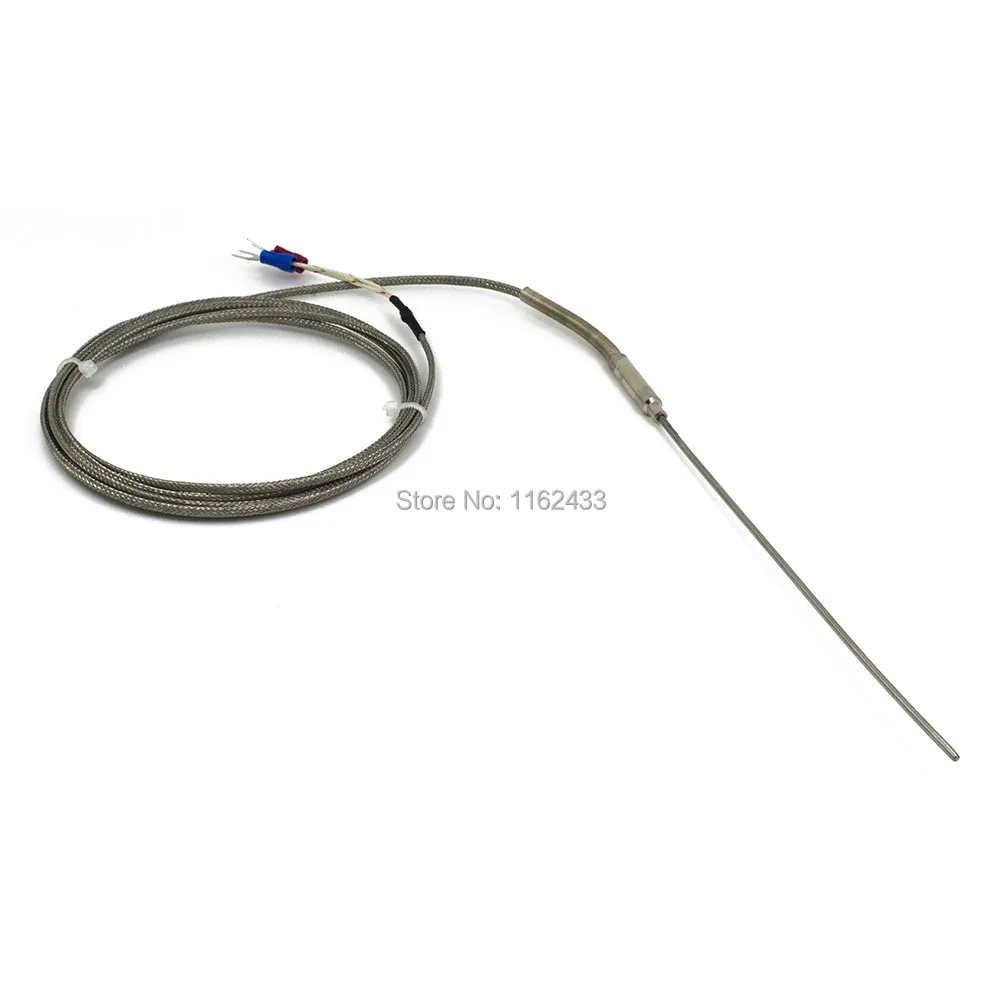

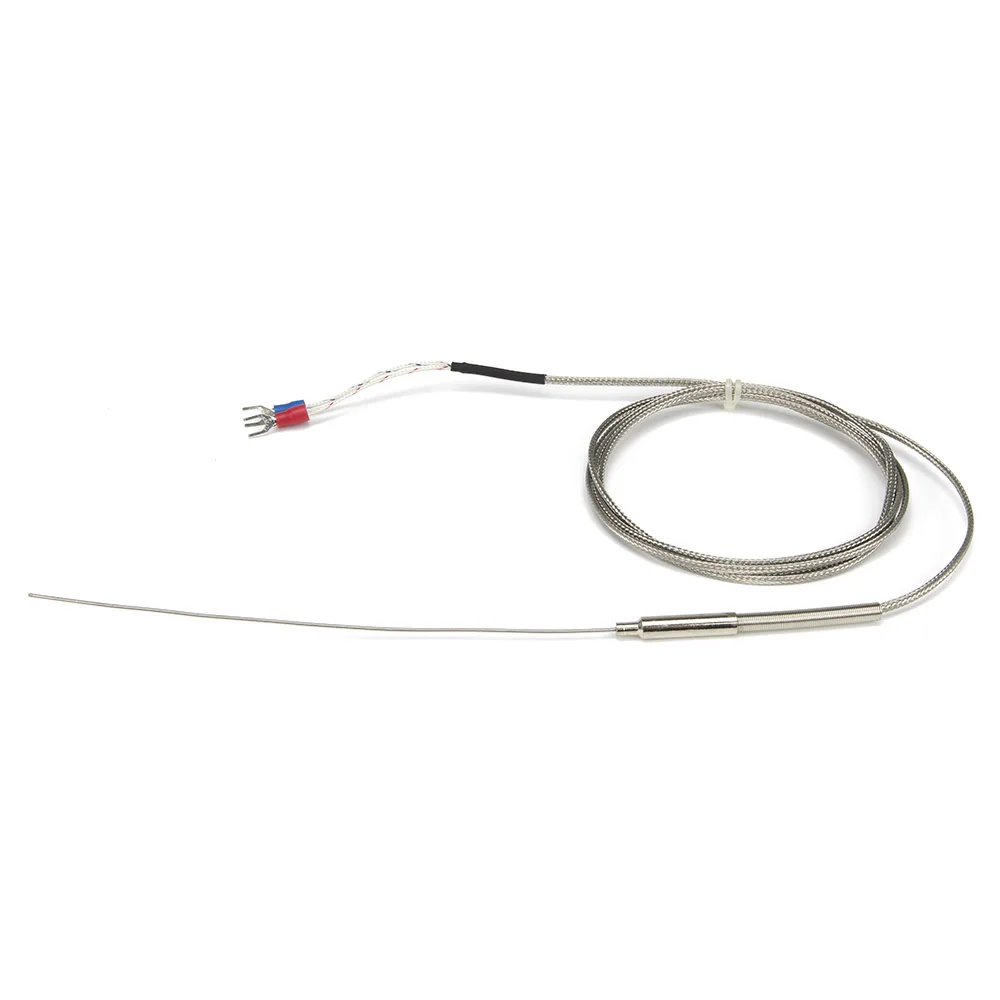

FTARP08 K type 1.5m metal screening cable 150mm flexible probe thermocouple temperature sensor
$5.03 – $6.11
- Description
- Additional information
Description
FTARP08 series flexible probe head thermocouple and RTD temperature sensor
|
Model number |
Type |
Measuring range |
Related product |
|
FTARP08-K |
K |
0-600 °C |
Visiting… |
|
FTARP08-E |
E |
0-400 °C |
|
|
FTARP08-J |
J |
0-400 °C |
|
|
FTARP08-T |
T |
-200-350 °C |
|
|
FTARP08-PT100 |
PT100 |
-50-200 °C |
|
Model number |
FTARP08 series |
|
Mounting form |
Flexible probe |
|
Accuracy |
K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15°C+0.2%|t|); PT100 B grade: ±(0.3°C+0.5%|t|) |
|
Work type |
Thermocouple: Ungrounded |
|
Probe material |
Standard is 321 stainless steel, can make to the following: |
|
Probe diameter |
0.5-8mm, more bigger diameter more higher temperature resistant more response time and more operation life |
|
Probe length |
10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip |
|
Cable material |
Metal screening; PTFE silver plated copper; 2*4*0.6mm blue fibreglass braided |
|
Cable length |
Standard is K 1.5m, PT100 1m, can make 0.1-100m |
|
Matched accessory |
|
|
Insulating resistance |
20MΩ min |
|
Probe diameter |
Ungrounded thermocouple |
Grounded thermocouple |
RTD |
|
Ф2 |
0.5 |
0.4 |
— |
|
Ф3 |
1.2 |
0.6 |
3 |
|
Ф4 |
2.5 |
0.8 |
5 |
|
Ф5 |
4.5 |
1.2 |
8 |
|
Ф6 |
6 |
2 |
12 |
|
Ф8 |
8 |
4 |
15 |
|
No |
Model Number |
Probe Material |
Probe Diameter |
Probe Length |
Cabel Material |
Cable Length |
Related Product |
|
1 |
FTARP08-K-D1(D2, D3, D4)L100M1.5 |
321 stainless steel |
1mm; 2mm; 3mm; 4mm |
100mm |
Metal screening |
1.5m |
|
|
2 |
FTARP08-K-D1(D2, D3, D4)L150M1.5 |
321 stainless steel |
1mm; 2mm; 3mm; 4mm |
150mm |
Metal screening |
1.5m |
Visiting… |
|
3 |
FTARP08-K-D1(D2, D3, D5)L200M1.5 |
321 stainless steel |
1mm; 2mm; 3mm; 5mm |
200mm |
Metal screening |
1.5m |
|
|
4 |
FTARP08-K-D1(D1.5, D3, D4)L300M1.5(2) |
321 stainless steel |
1mm; 1.5mm; 3mm; 4mm |
300mm |
Metal screening |
1.5m; 2m |
|
|
5 |
FTARP08-K-D1(D3, D4)L400M1.5 |
321 stainless steel |
1mm; 3mm; 4mm |
400mm |
Metal screening |
1.5m |
|
|
6 |
FTARP08-K-D2(D3, D4)L50M2 |
321 stainless steel |
2mm; 3mm; 4mm |
50mm |
Metal screening |
2m |
|
|
7 |
FTARP08-K-D2L100M4 |
321 stainless steel |
2mm |
100mm |
Metal screening |
4m |
|
|
8 |
FTARP08-K-D2L100M5 |
321 stainless steel |
2mm |
100mm |
Metal screening |
5m |
|
|
9 |
FTARP08-K-D3(D4)L50M3 |
321 stainless steel |
3mm; 4mm |
50mm |
Metal screening |
3m |
|
|
10 |
FTARP08-K-D3L100M2 |
321 stainless steel |
3mm |
100mm |
Metal screening |
2m |
|
|
11 |
FTARP08-K-D3L100M2.5 |
321 stainless steel |
3mm |
100mm |
Metal screening |
2.5m |
|
|
12 |
FTARP08-K-D3(D5)L400M3PT |
321 stainless steel |
3mm; 5mm |
400mm |
Metal screening |
3m with pin terminals |
|
|
13 |
FTARP08-K-D3L800M1.5 |
321 stainless steel |
3mm |
800mm |
Metal screening |
1.5m |
|
|
14 |
FTARP08-K-D3L6000M1.5 |
321 stainless steel |
3mm |
6000mm |
Metal screening |
1.5m |
|
|
15 |
FTARP08-K-D4(D5, D6)L500M1.5 |
321 stainless steel |
4mm; 5mm; 6mm |
500mm |
Metal screening |
1.5m |
|
|
16 |
FTARP08-K-D5L500M3PT |
321 stainless steel |
5mm |
500mm |
Metal screening |
3m with pin terminals |
|
|
17 |
FTARP08-K-316LD2(D3)L100M1.5 |
316L stainless steel |
2mm; 3mm |
100mm |
Metal screening |
1.5m |
|
|
18 |
FTARP08-K-316LD2(D3)L100M2P |
316L stainless steel |
2mm; 3mm |
100mm |
Metal screening |
2m with plug |
|
|
19 |
FTARP08-K-316LD2(D3)L100M3 |
316L stainless steel |
2mm; 3mm |
100mm |
Metal screening |
3m |
|
|
20 |
FTARP08-K-316LD2(D3, D4, D5)L400M2 |
316L stainless steel |
2mm; 3mm; 4mm; 5mm |
400mm |
Metal screening |
2m |
|
|
21 |
FTARP08-K-2520D3L150M1.5 |
2520 stainless steel |
3mm |
150mm |
Metal screening |
1.5m |
|
|
22 |
FTARP08-K-GH3039D4L100M1.5 |
GH3039 stainless steel |
4mm |
100mm |
Metal screening |
1.5m |
Additional information
| Theory | Temperature Sensor |
|---|---|
| Usage | Industrial |
| Model Number | FTARP08-K-D2L150M1.5 |
| Max Measuring Temperature | 120°C & Above |
| Display Type | Analog |
| Power Type | Charger |
| Display Size | 2.0 – 3.9 Inches |
| Style | Standing Station |
| Brand Name | Finglai |
| Origin | Mainland China |
| Certification | CE |
