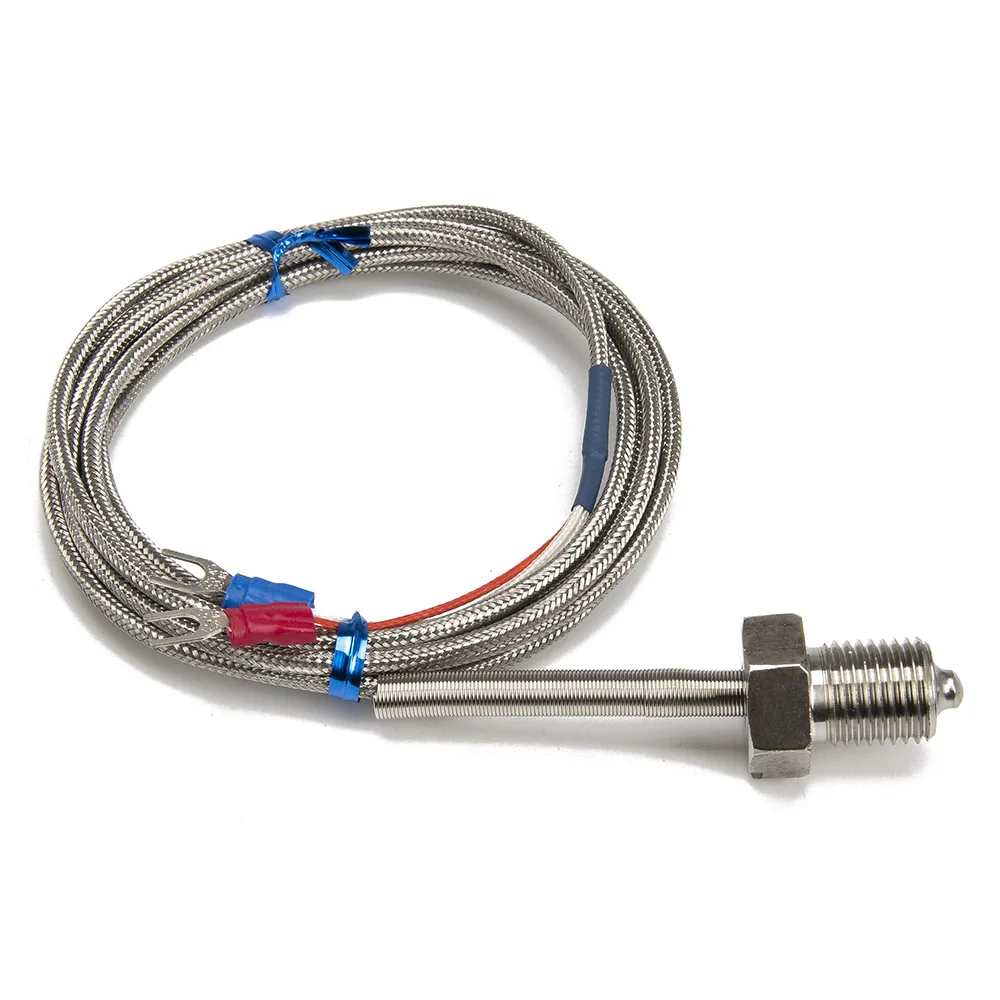

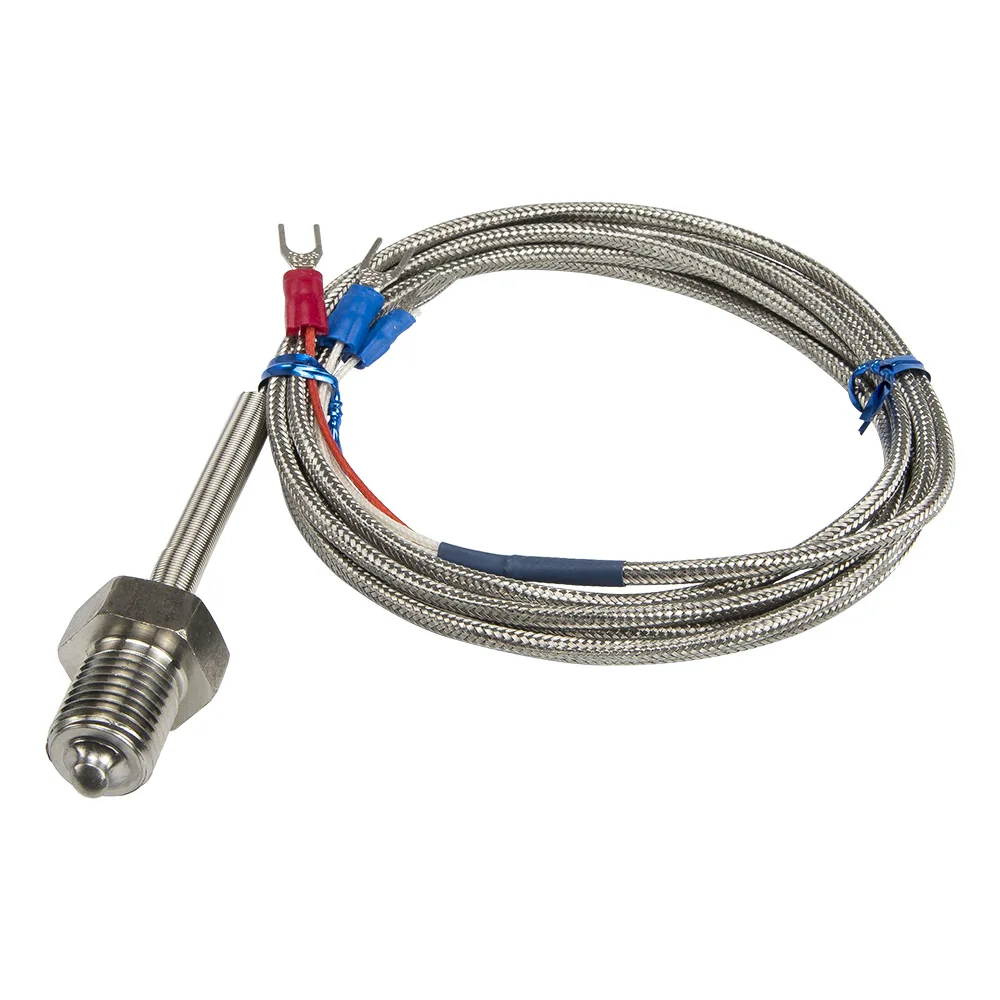

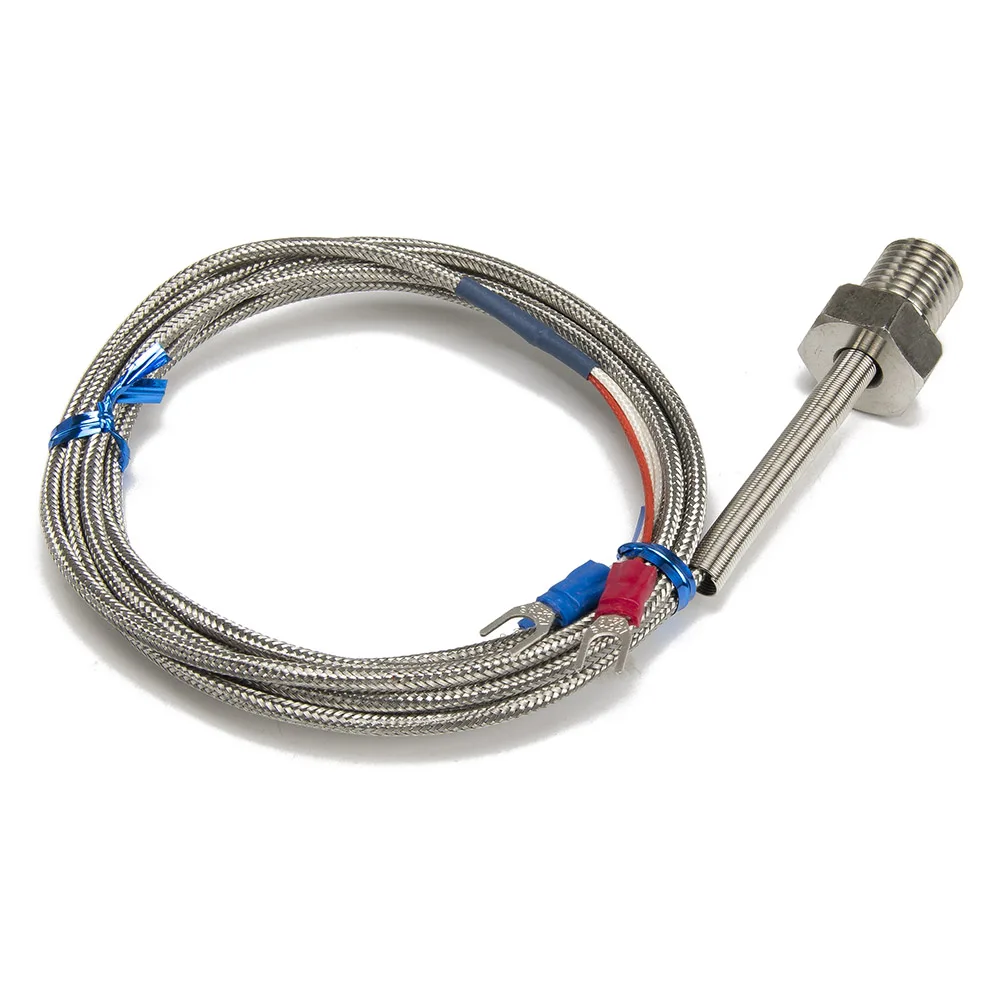

FTARP09 PT100 type 2m metal braided cable 20mm probe head RTD temperature sensor M14 thread
$8.25
- Description
- Additional information
Description
FTARP09 series probe head thermocouple and RTD temperature sensor
|
Model number |
Same model |
Type |
Measuring range |
Related product |
|
FTARP09-K |
WRN-291 |
K |
0-600 °C |
|
|
FTARP09-E |
WRE-291 |
E |
0-400 °C |
|
|
FTARP09-J |
J |
0-400 °C |
||
|
FTARP09-PT100 |
WZP-291 |
PT100 |
Metal cable: -50-450°C |
Visiting… |
|
Model number |
FTARP09 series |
|
Mounting form |
Probe |
|
Accuracy |
K, E, J: ±0.4%|t|; PT100: 2B grade (Default): ±(0.6°C+1%|t|); B grade: ±(0.3°C+0.5%|t|); A grade: ±(0.15°C+0.2%|t|) |
|
Work type |
Thermocouple: Ungrounded |
|
Thread size |
PT1/8″, PT1/4″, PT3/8″, PT1/2″, PT3/4″, M6*1, M8*1.25, M8*1.5, M10*1, M10*1.25, M10*1.5, M12*1, M12*1.5, M14*1.5, M16*1.5, M20*1.5, M27*2 or other |
|
Probe material |
201 stainless steel, the connection between probe and thread are welded, waterproof |
|
Probe diameter |
Usual: M6: 4mm; PT1/4″, M8, M10, M12, PT1/2″, M16, M20, M27: 5mm; M27 316L: 10mm. If customzied, please contact first. |
|
Probe length |
Standard is 50mm, can make 30, 100, 150mm (Include screw thread length) |
|
Cable material |
High density metal screening cable, PTFE silver plated copper cable, Silica gel cable |
|
Cable length |
Standard is 1m, can make other length |
|
Thermal response time |
Thermocouple: <5s; RTD: <8s |
|
Insulating resistance |
20MΩ min |
|
No |
Model Number |
Accuracy And Probe Material |
Thread Size |
Probe Length |
Cabel Material |
Cable Length (3 Wires Default) |
Related Product |
|
1 |
FTARP09-PT100-P1(P2, P3, P4, P6)L30M1 |
201 stainless steel |
PT1/8″; PT1/4″; PT3/8″; PT1/2″; PT3/4″ |
30mm |
Metal screening |
1m |
|
|
2 |
FTARP09-PT100-P1(M6P1)L30M1.5 |
201 stainless steel |
PT1/8″; M6*1 |
30mm |
Metal screening |
1.5m |
|
|
3 |
FTARP09-PT100-P1(P2, P3, P4, P6, M6P1, M8P1.25, M10P1, M10P1.5, M12P1, M12P1.5)L30M2 |
201 stainless steel |
PT1/8″; PT1/4″; PT3/8″; PT1/2″; PT3/4″; M6*1; M8*1.25; M10*1; M10*1.5; M12*1; M12*1.5 |
30mm |
Metal screening |
2m |
|
|
4 |
FTARP09-PT100-P1(P2, P4, P6, M6P1, M8P1.25, M16P1.5)L30M3 |
201 stainless steel |
PT1/8″; PT1/4″; PT1/2″; PT3/4″; M6*1; M8*1.25; M16*1.5 |
30mm |
Metal screening |
3m |
|
|
5 |
FTARP09-PT100-P1(P2, P3, P4, P6)L50M1 |
201 stainless steel |
PT1/8″; PT1/4″; PT3/8″; PT1/2″; PT3/4″ |
50mm |
Metal screening |
1m |
|
|
6 |
FTARP09-PT100-P1(P2, P3, P4, P6, M6P1, M8P1.25, M10P1, M10P1.5, M12P1, M12P1.5)L50M2 |
201 stainless steel |
PT1/8″; PT1/4″; PT3/8″; PT1/2″; PT3/4″; M6*1; M8*1.25; M10*1; M10*1.5; M12*1; M12*1.5 |
50mm |
Metal screening |
2m |
|
|
7 |
FTARP09-PT100-P1(P2, P3, P4, P6)L50M5 |
201 stainless steel |
PT1/8″; PT1/4″; PT3/8″; PT1/2″; PT3/4″ |
50mm |
Metal screening |
5m |
|
|
8 |
FTARP09-PT100-P1(P2, P3, P4, M6P1, M8P1.25, M10P1.5, M12P1, M12P1.5, M16P1.5)L100M2 |
201 stainless steel |
PT1/8″; PT1/4″; PT3/8″; PT1/2″; M6*1; M8*1.25; M10*1.5; M12*1; M12*1.5; M16*1.5 |
100mm |
Metal screening |
2m |
|
|
9 |
FTARP09-PT100-P2L30M3W2 |
201 stainless steel |
PT1/4″ |
30mm |
Metal screening |
3m 2 wires |
|
|
10 |
FTARP09-PT100-P2L30S0.5 |
201 stainless steel |
PT1/4″ |
30mm |
Silica gel |
0.5m |
|
|
11 |
FTARP09-PT100-P2(P3, P4, M6P1, M8P1.25, M12P1.5, M16P1.5, M20P1.5, M27P2)L50P1 |
201 stainless steel |
PT1/4″; PT3/8″; PT1/2″; M6*1; M8*1.25; M12*1.5; M16*1.5; M20*1.5; M27*2 |
50mm |
PTFE silver plated copper |
1m |
|
|
12 |
FTARP09-PT100-P2L70M2 |
201 stainless steel |
PT1/4″ |
70mm |
Metal screening |
2m |
|
|
13 |
FTARP09-PT100-P4(M6P1)L50M3 |
201 stainless steel |
PT1/2″; M6*1 |
50mm |
Metal screening |
3m |
|
|
14 |
FTARP09-PT100-M6P1(M8P1.25, M10P1.5, M12P1.5)L30M1 |
201 stainless steel |
M6*1; M8*1.25; M10*1.5; M12*1.5 |
30mm |
Metal screening |
1m |
|
|
15 |
FTARP09-PT100-M6P1(M8P1.25)L30P3 |
201 stainless steel |
M6*1; M8*1.25 |
30mm |
PTFE silver plated copper |
3m |
|
|
16 |
FTARP09-PT100-M6P1(M8P1.25, M10P1, M10P1.5, M12P1, M12P1.5, M14P1.5, M16P1.5, M20P1.5, M27P2)L50M1 |
201 stainless steel |
M6*1; M8*1.25; M10*1; M10*1.5; M12*1; M12*1.5; M14*1.5; M16*1.5; M20*1.5; M27*2 |
50mm |
Metal screening |
1m |
|
|
17 |
FTARP09-PT100-M12P1L100M0.5 |
201 stainless steel |
M12*1 |
100mm |
Metal screening |
0.5m |
|
|
18 |
FTARP09-PT100-M12P1.5L100M4 |
201 stainless steel |
M12*1.5 |
100mm |
Metal screening |
4m |
|
|
19 |
FTARP09-PT100-M14P1.5L30M2 |
201 stainless steel |
M14*1.5 |
30mm |
Metal screening |
2m |
|
|
20 |
FTARP09-PT100-M14P1.5L100M3 |
201 stainless steel |
M14*1.5 |
100mm |
Metal screening |
3m |
|
|
21 |

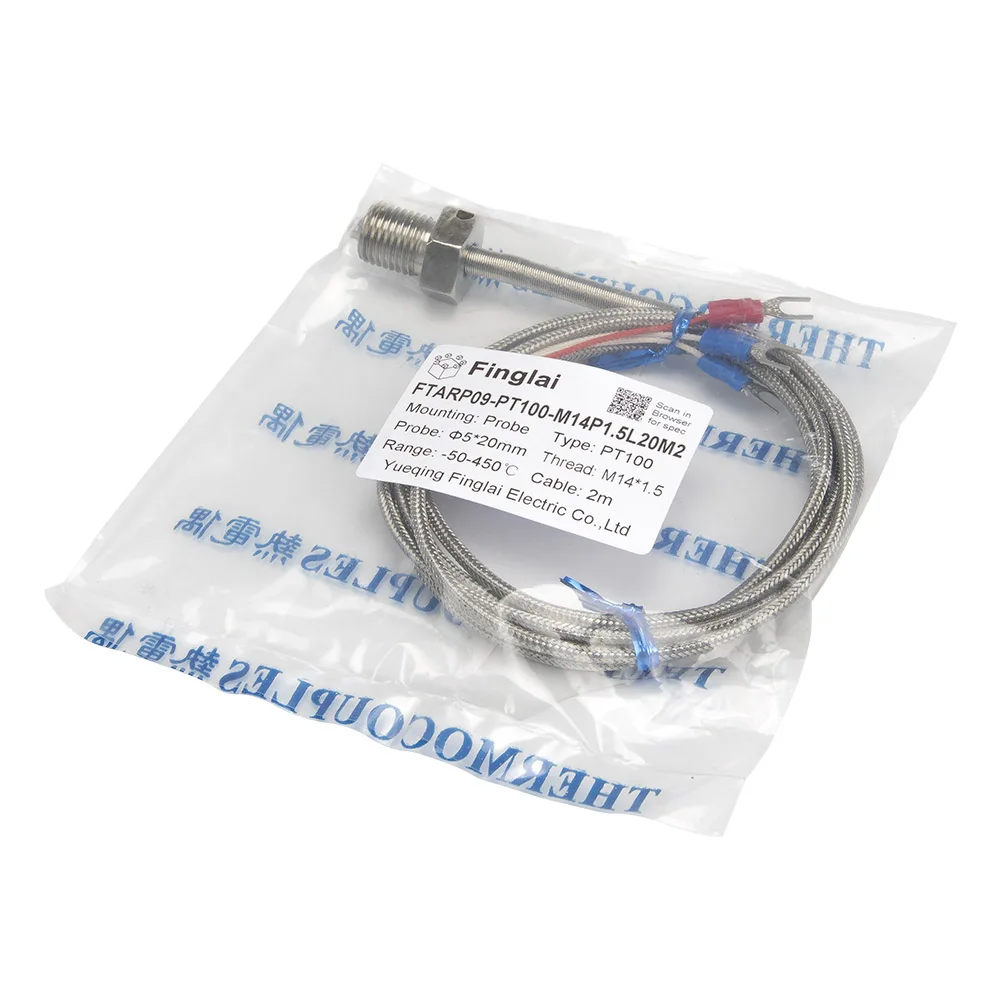

FTARP09-PT100-M14P1.5L20M2 |
201 stainless steel |
M14*1.5 |
20mm |
Metal screening |
2m |
Visiting… |
Additional information
| Cable Length | 2M |
|---|---|
| Type | PT100 |
| Theory | Temperature Sensor |
| Usage | Industrial |
| Model Number | FTARP09-PT100-M14P1.5L20M2 |
| Max Measuring Temperature | 120°C & Above |
| Display Type | Analog |
| Power Type | None |
| Display Size | 2.0 – 3.9 Inches |
| Style | Standing Station |
| Brand Name | Finglai |
| Origin | Mainland China |
| Certification | CE |
