FTDI dual chip USB cable USB-RS232-WE-1800-BT FTDI Chip 1.8m USB to Wire Ended Black Interface Converter Cable
$17.49 – $21.24
- Description
- Additional information
Description
USB to RS-232 Converter Cables, FTDI Chip
These cables provide a fast and simple method to convert a serial RS-232 signal to USB. The USB connector contains a small circuit board featuring the FTDI FT232RQ serial UART interface IC to handle all the USB signalling and protocols. There are two LEDs to indicate data being received and transmitted. They have a maximum signalling rate of 1Mbaud. These converters are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux: all of which are available, royalty-free from FTDI website. //www.ftdichip.com

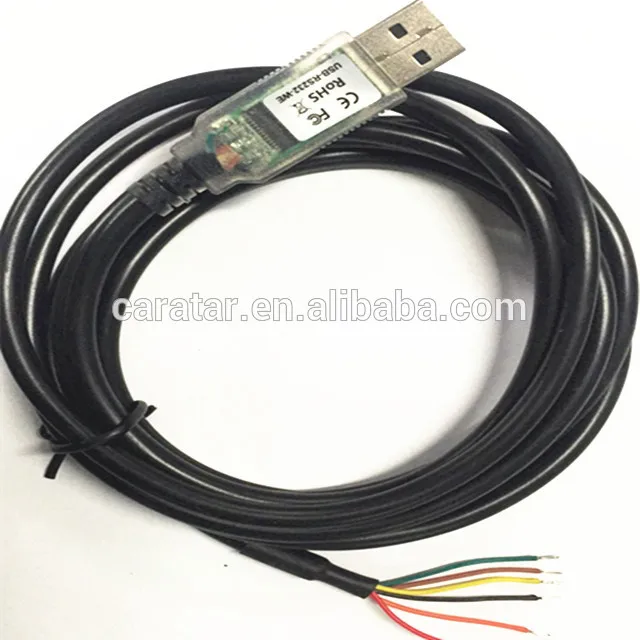

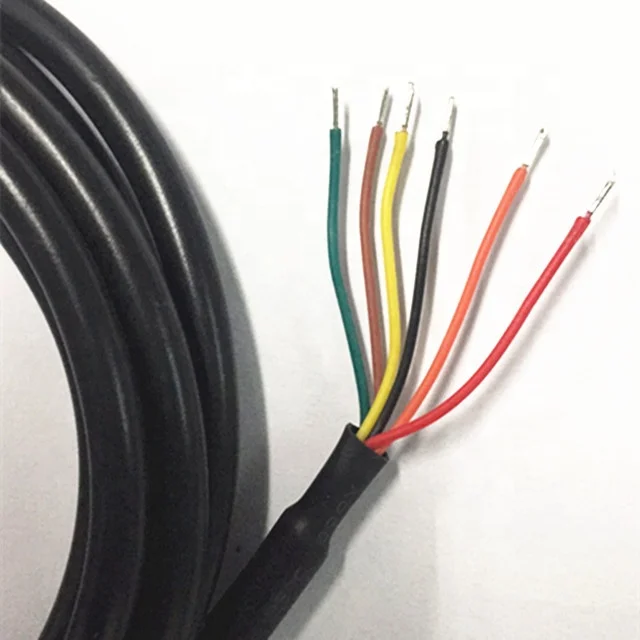

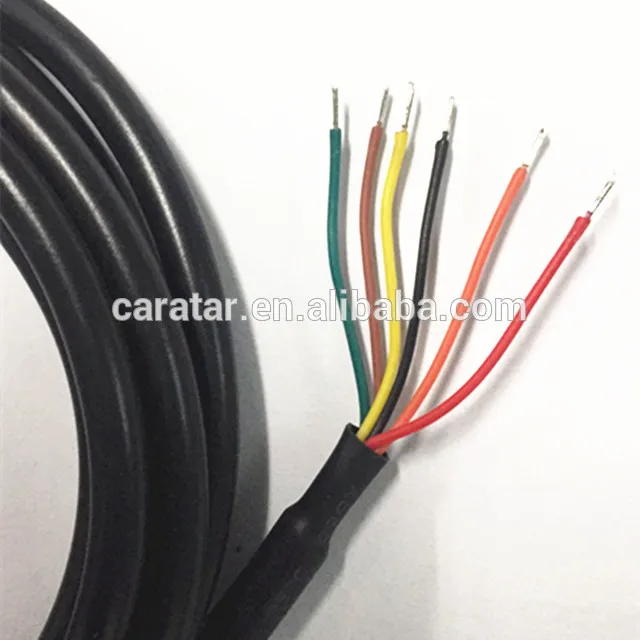

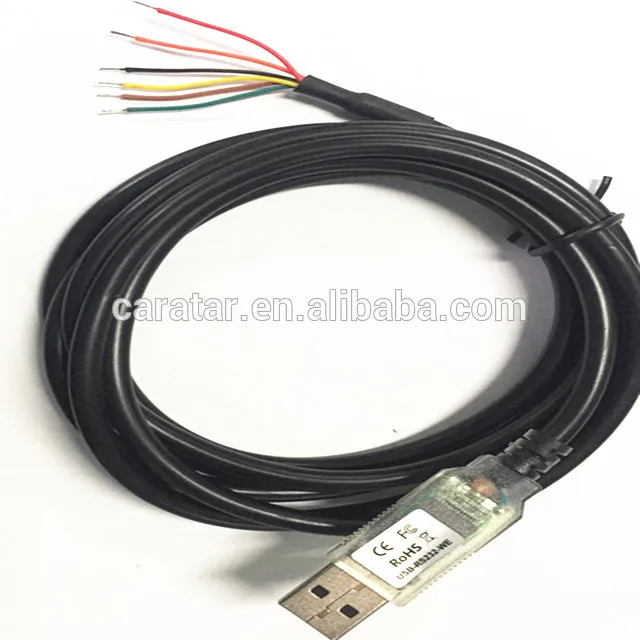

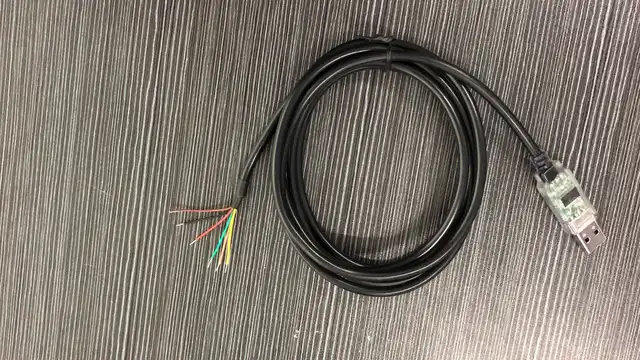

The other end of the cable has bare tinned wires and can be customised to your needs using various connectors. The cables are available in two lengths and with an optional power supply output of +3.3V or +5Vdc
No Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_0.0 , cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_0.0), cable length 5 m
+3.3V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_3.3 , cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_3.3 , cable length 5 m
+5V Optional Voltage Output
FTDI Chip USB-RS232-WE-1800-BT_5.0 , cable length 1.8 m
FTDI Chip USB-RS232-WE-5000-BT_5.0 , cable length 5 m
The USB_RS232 cables are a family of USB to RS232 levels serial UART converter cables incorporatingFTDI's FT232R USB to serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a RS232 level serial UART interface to USB.

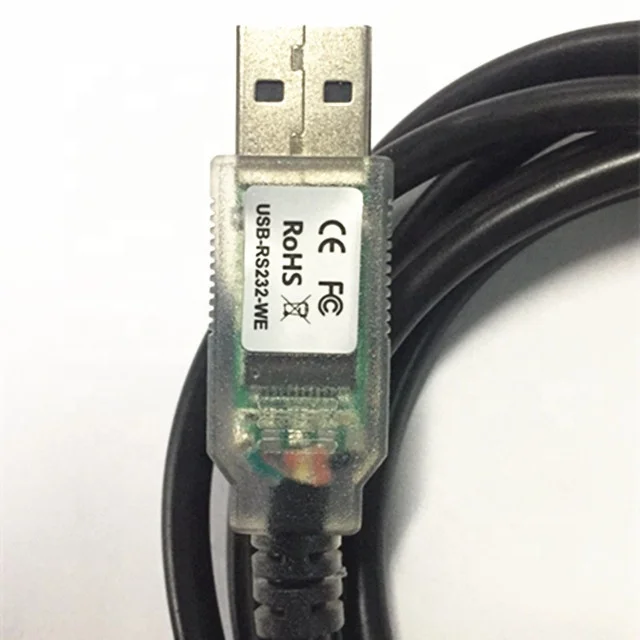

Each USB-RS232 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS232 level shifter plus Tx and Rx
LEDs which give a visual indication of traffic on the cable (if transparent USB connector specified). The other end of the cable is bare, tinned wire ended connections by default, but can be customised using different connectors to support various applications.
Cables are FCC, CE, RoHS compliant.
|
Name |
usb to rs232 converter wire end cable |
|
Model |
CA-GYD04 |
|
IC |
FT232RL+ZT213 |
|
PC Interface |
USB 2.0 |
|
Device Interface |
RS-232 |
|
Cable Material |
Copper wire |
|
Cable Size |
0.35m,0.5m,1.5m,1.8m,3m can be optional |
|
Transfer Rate |
Standard RS-232 transfer rate |
|
Color |
black or customized |
|
Device Support |
RS-232 Interface |
|
Package List |
Cable, CD Driver is optional |
|
System Requirements |
Windows7,Windows8/Vista/XP/2000/ME/98SE Linux Mac OS 8.6 or higher |
|
Application Area |
USB Smart Card Readers,ISDN terminal adapter,Bar code scanner,USB Hardware Modem,PDA-USB data transfer,etc |
|
Power Supply |
Except power supply |
also you can find us to customized as below named list requirement :
|
Customized DB 9PIN Audio Video VGA Cable, DB 9PIN RS232 Serial to USB Cable
|
|
Hot Sale FT232 USB UART Board (type A) FT232R FT232RL to RS232 TTL Serial Module Kit |
Additional information
| Package | No |
|---|---|
| Model Number | RS232 |
| USB Type | Standard |
| Use | MP3 / MP4 Player,Camera,Mobile Storage,Computer,Smart Devices,IP Camera,Electronic Dictionary,VR/AR Glasses,Set-top Boxes,Robot |
| Brand Name | kangyuda caratar |
| Origin | Mainland China |
| Certification | CE,FCC |
