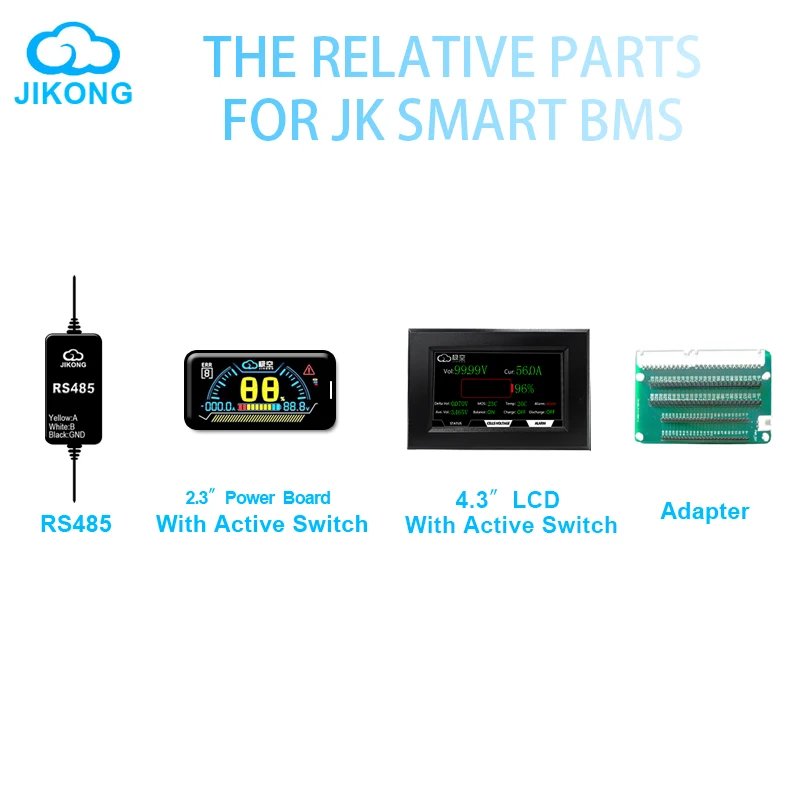

JKBMS RS485 CAN module and LCD display Adapter
$6.24 – $44.96
- Description
- Additional information
Description
Note:

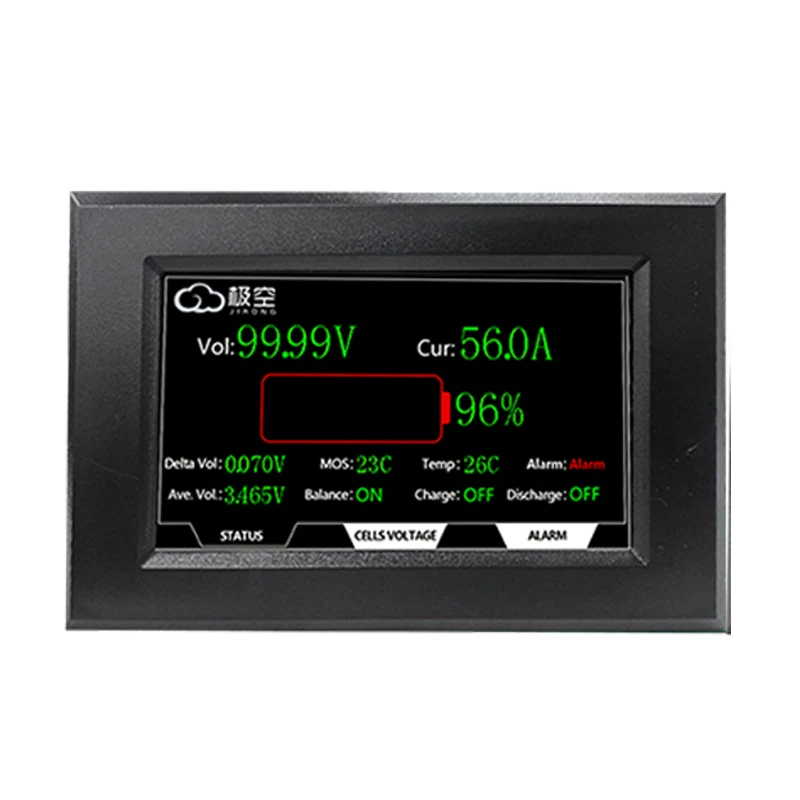

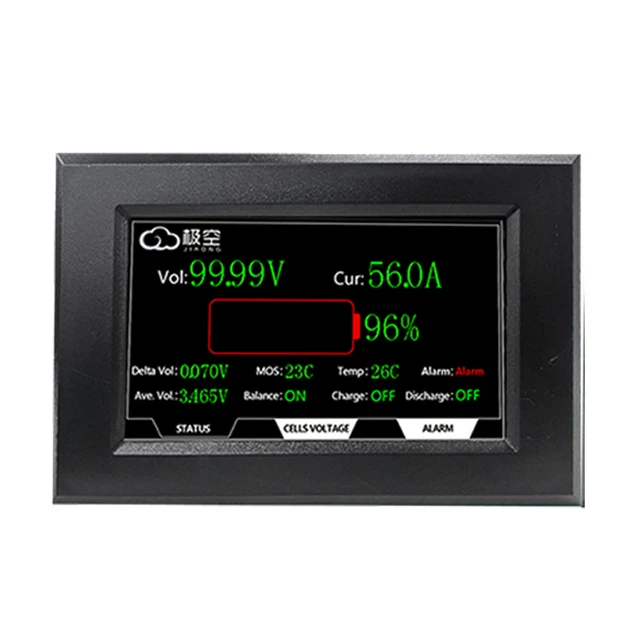

LCD needs to use two BMS interfaces, LCD + RS485 interface.
If BMS needs to be linked to LCD, RS485 interface cannot be used at the same time,
LCD needs to use two BMS interfaces, LCD + RS485 interface.
If BMS needs to be linked to LCD, RS485 interface cannot be used at the same time,

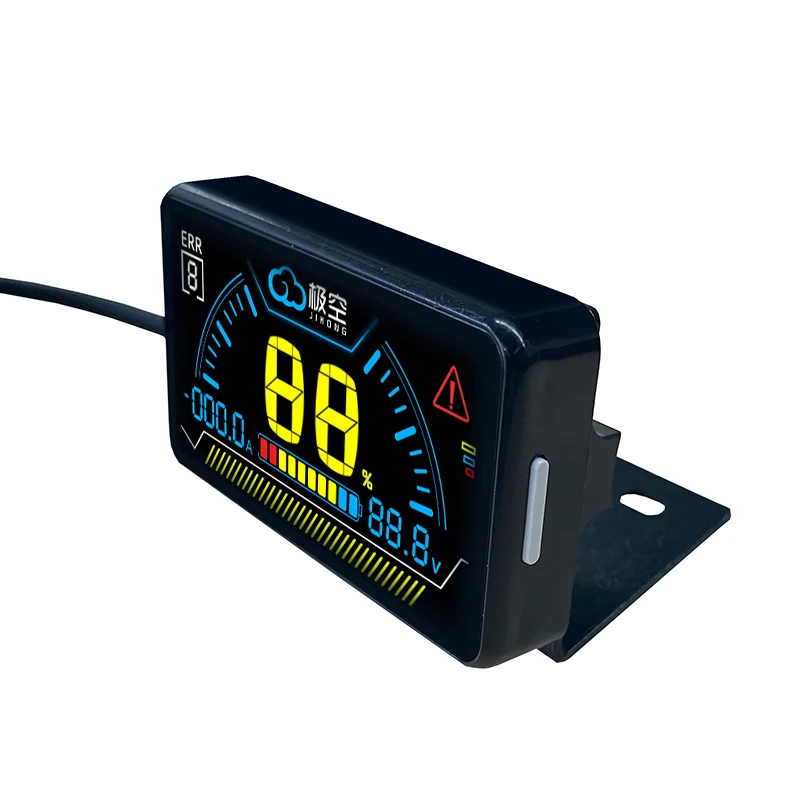

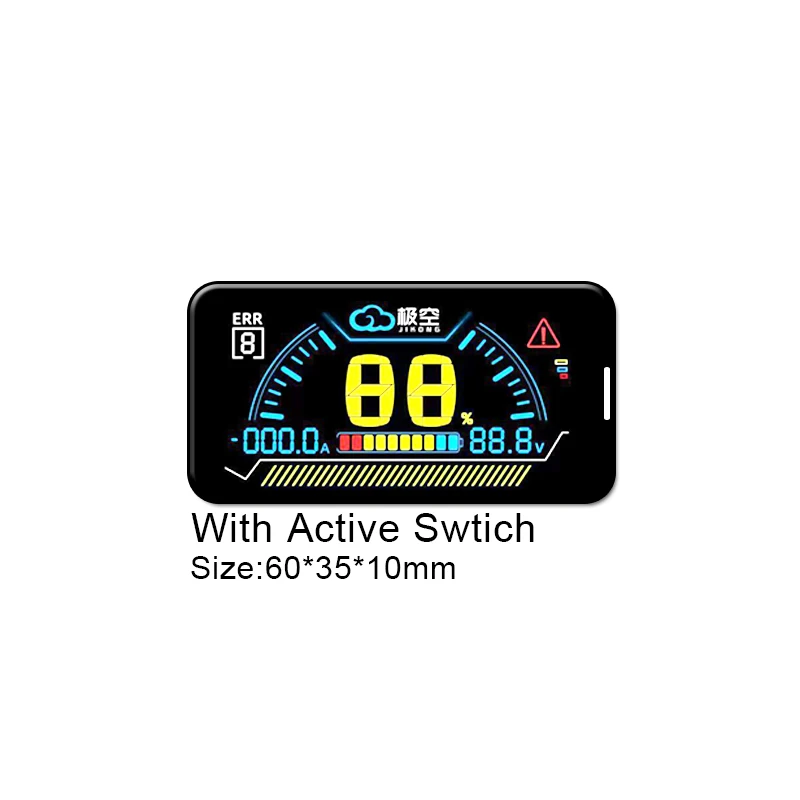

It is recommended to use Power Board configuration to actively activate the button of BMS.
B1A8S20P/B2A8S20P can plug and play without used RS485 interface.
B1A8S20P/B2A8S20P can plug and play without used RS485 interface.
NOTE:
①: Temperature sensor

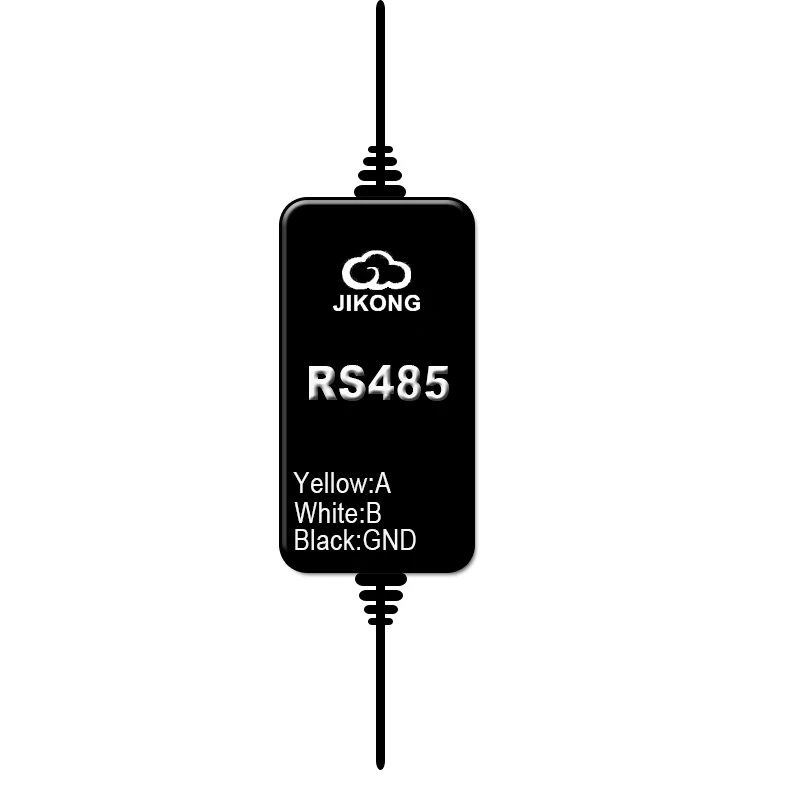

②:RS485 interface(At present, all JK BMS are configured with RS485 function by default)
③:LCD interface(At present, all JK BMS are configured with LCD interface by default) (Except of JKBD4A17S4P)
④:Heat Function interface(At present, the heating function customized by customers can be accepted)
⑤ : CANBUS interface ( Needs customized)
Additional information
| Model Number | HANKZOR-BMS |
|---|---|
| Accessory Type | Charger Accessories |
| Brand Name | HANKZOR |
| Origin | Mainland China |
| Certification | CE |
