K/E Type Thermocouple Temperature Rod Pt100 Sensor Platinum Thermal Resistance Waterproof
$12.50 – $16.65
- Description
- Additional information
Description
Product name: stainless steel waterproof sensor
Index number: Pt100/K/E/CU50
Probe material: 201 stainless steel by default (if 304 or otherwise, please contact the seller)

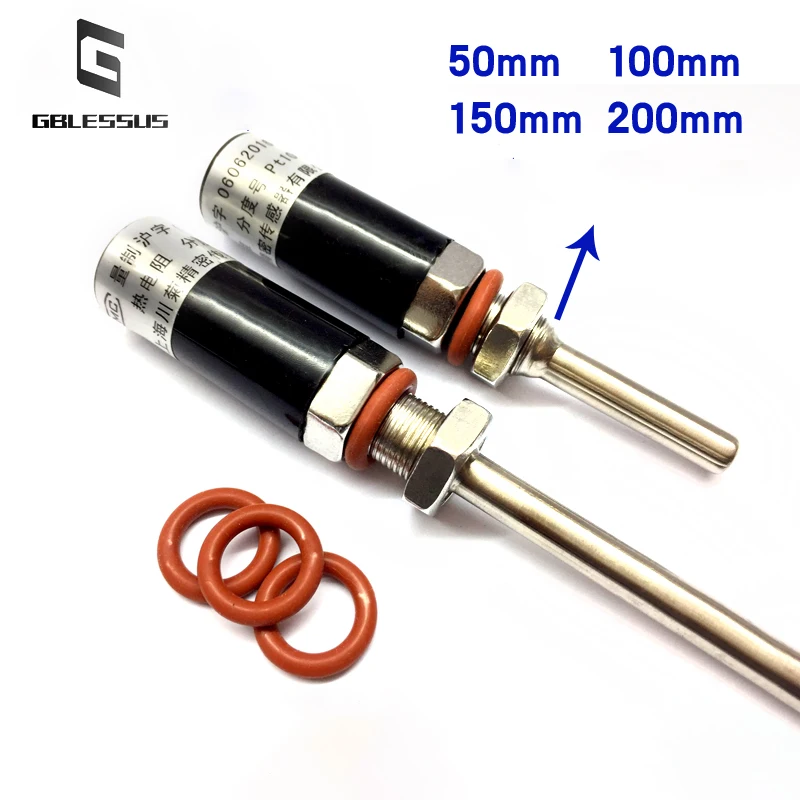

Mounting thread: M12*1 (with nut and high temperature sealing ring)
Probe diameter: 7mm

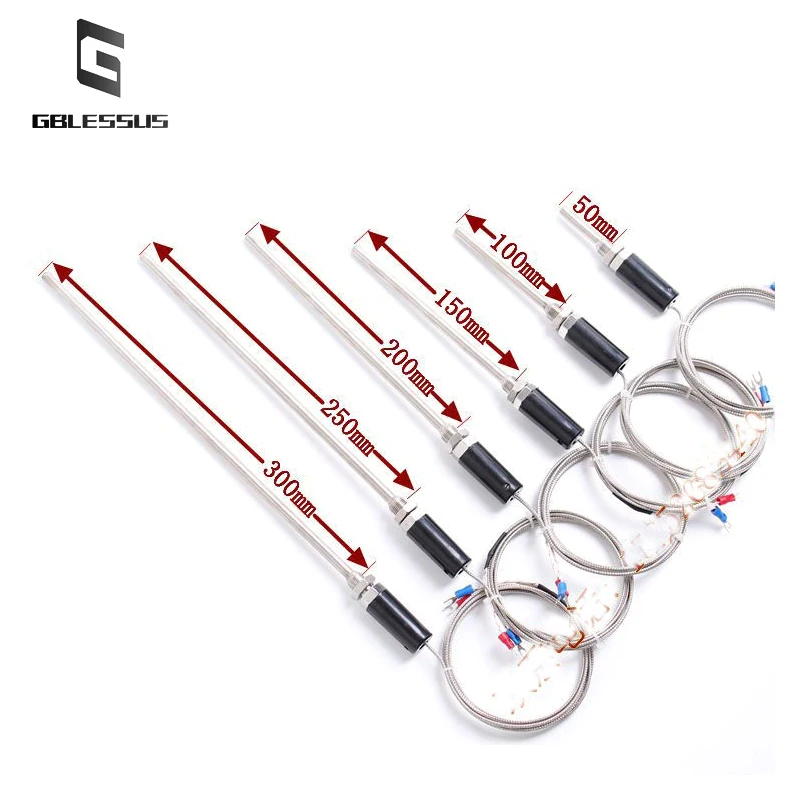

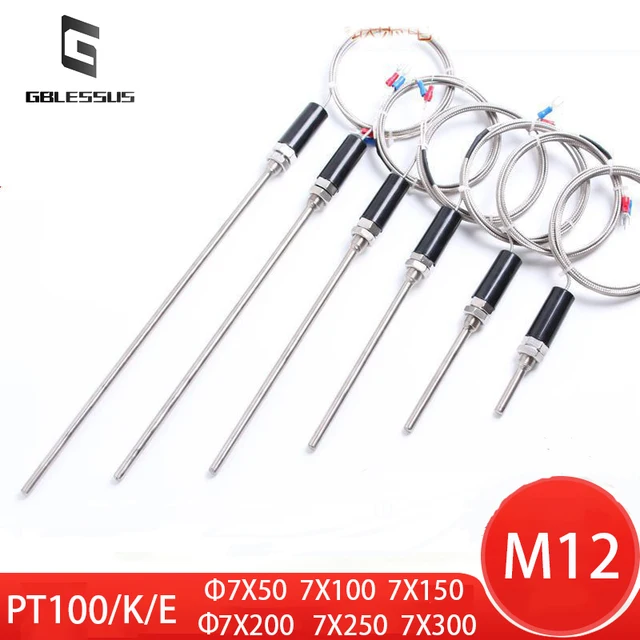

Probe length: 50mm, 100mm, 150mm, 200mm200mm, 250mm, 300mm, 400m.500mm(all including thread length)
Extension line :Pt100 is three-core high temperature multi-strand shielding line, K/E is two-core single-strand shielding line, can be customized arbitrary line length,
default line length of 1.5m
Measurement range:PT100 -200+450℃ ; CU50 -50 + 150℃; K type 0-600℃; E type 0-400℃
Additional information
| Measure Type | PT100 |
|---|---|
| Screw | M12*1.5 |
| Theory | Thermocouple Thermometer |
| Usage | Industrial |
| Model Number | WZP-187 |
| Max Measuring Temperature | 120°C & Above |
| Brand Name | GBLESSUS |
| Certification | CE |
| Origin | Mainland China |
| Index number | Pt100/K/E |
| Product name | stainless steel waterproof sensor |
| Probe diameter | 7mm |
| default line length | 1.5M |
