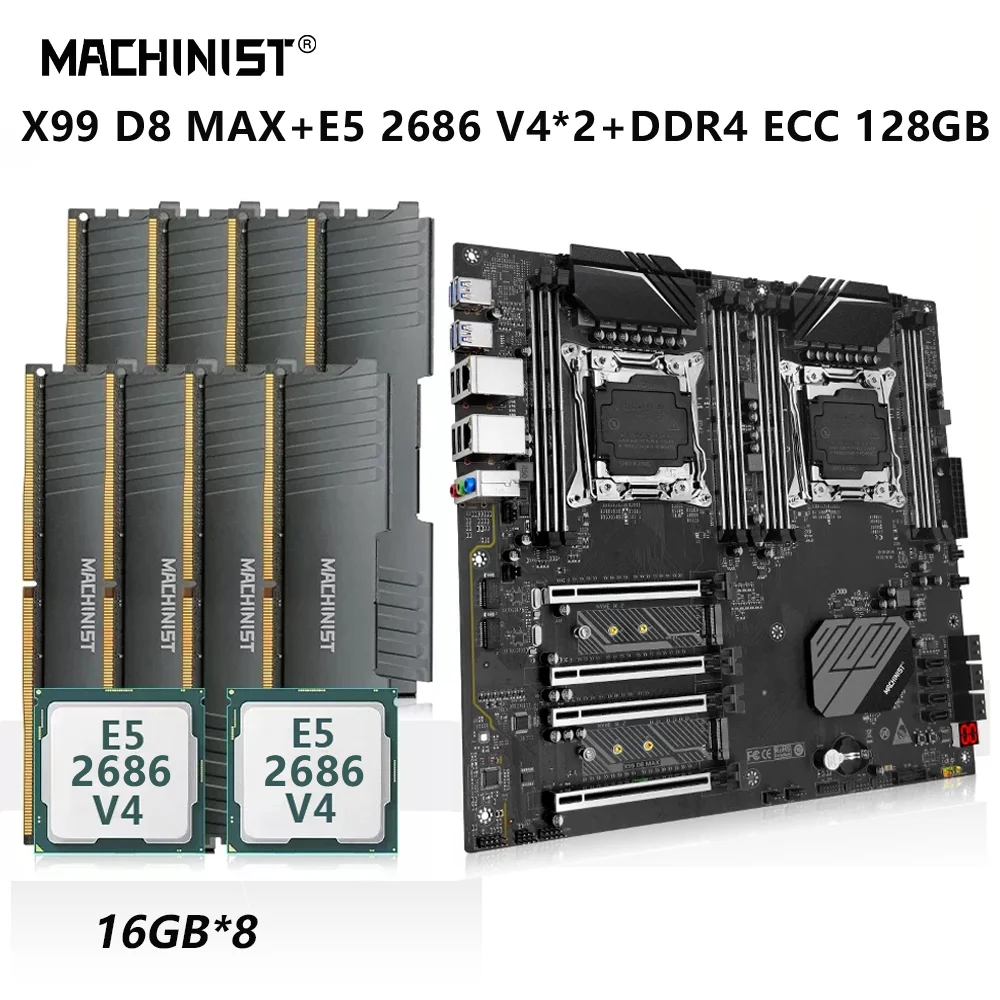

Note: The package contains 1PCS motherboard + 2PCS processor and 8PCS memory, black vest.

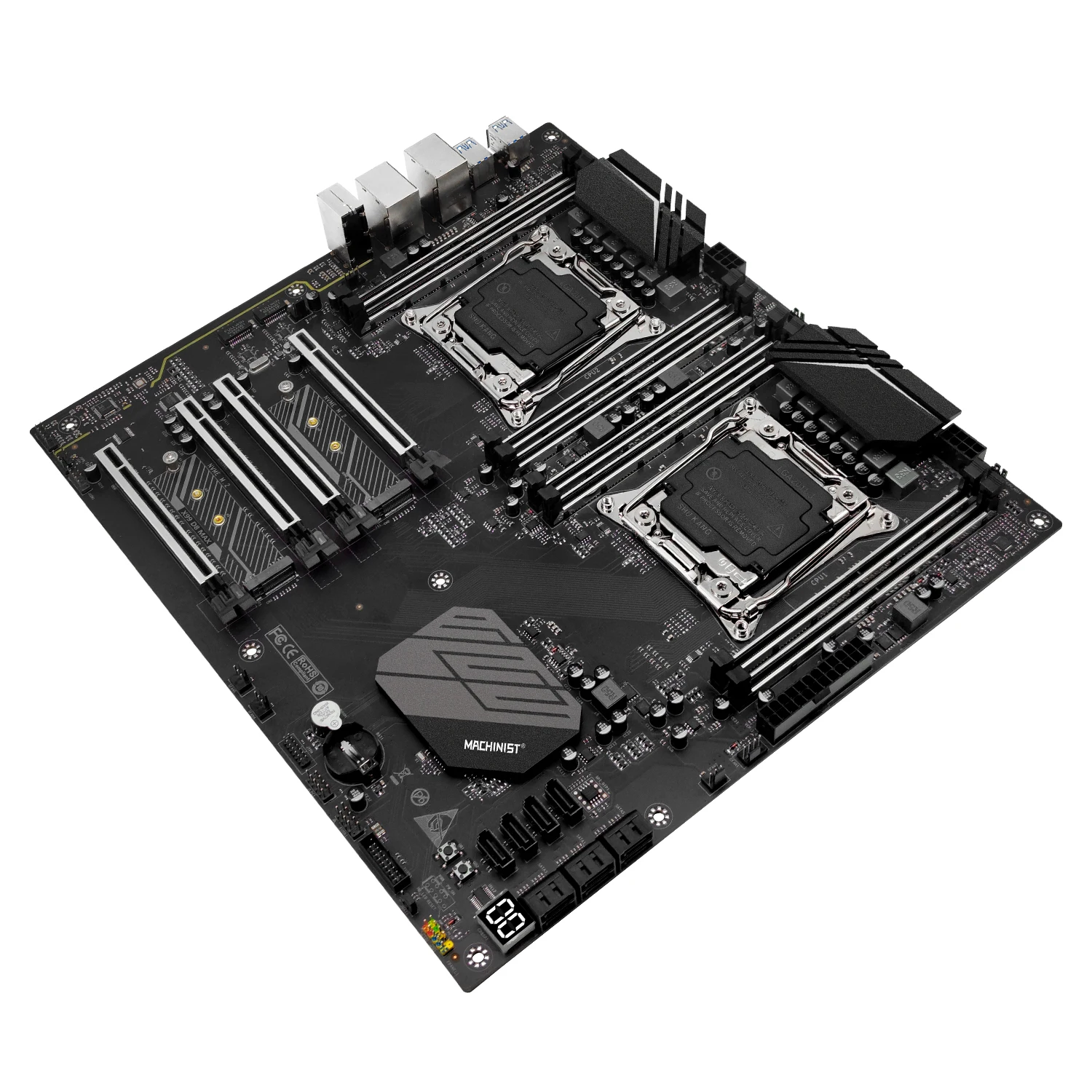

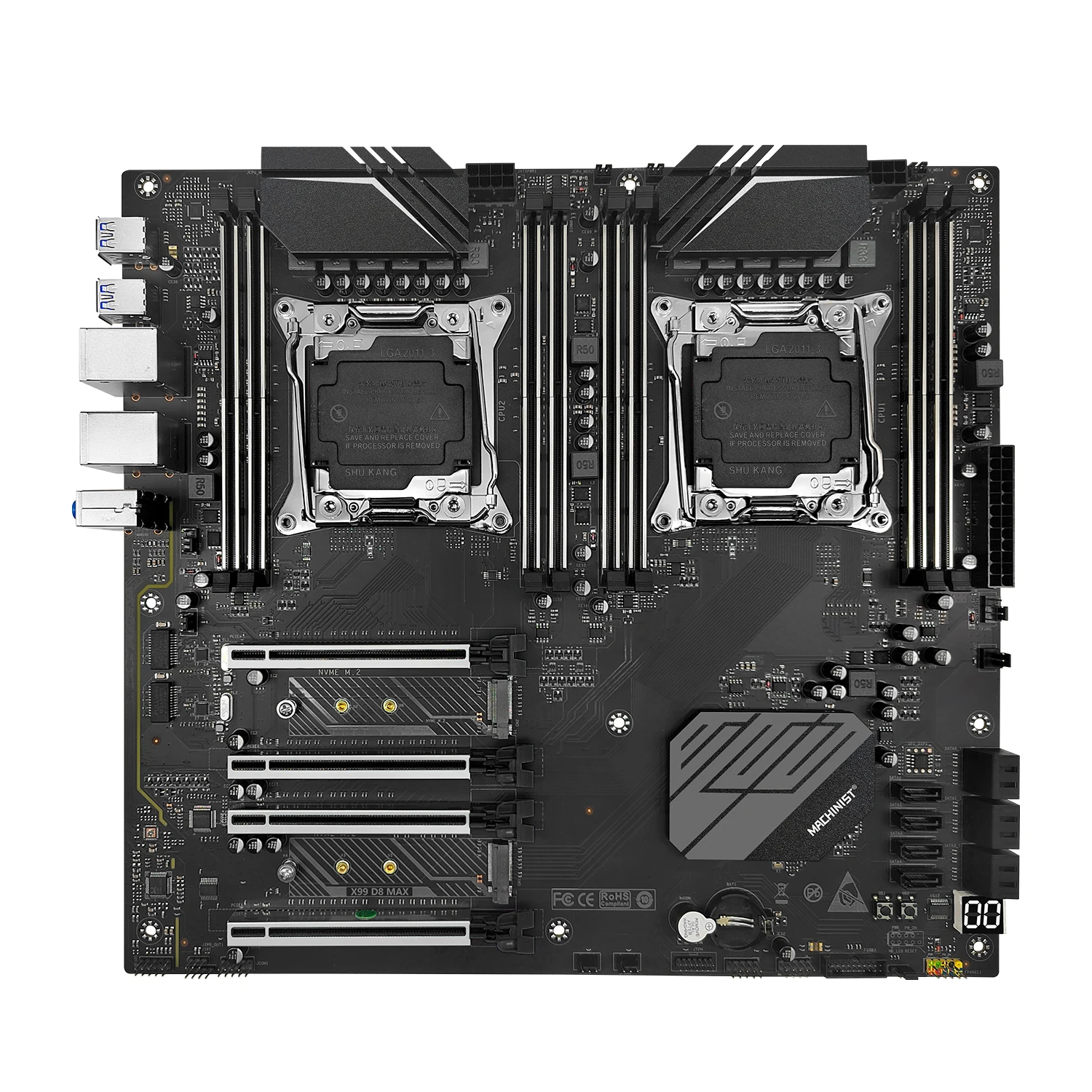

The main board is MACHINIST D8-MAX

The processor is 2PCS Intel E5 2686 V4

Memory for server 16GB*8=128GB DDR4 2133Mhz RAM

CPU:

Processor Series:Xeon E5 2686 V4(18 cores/36 threads)
Main frequency：2.3GHz
Socket type：LGA 2011-3
3rd level cache：45MB
Technology：14nm
Power consumption: 145W
notes:
1: CPU used, good condition, 2 years warranty
2: There may be some small physical scratches on the surface of the CPU, which is quite normal.
3: All CPUs have been strictly tested by our store

The motherboard does not contain a CMOS battery. (Embargo regulations)

Please make sure that you have purchased the correct motherboard to be compatible with your other hardware.

feature:

High compatibility brings a higher experience.

All solid capacitors, fine workmanship, professional and stable.

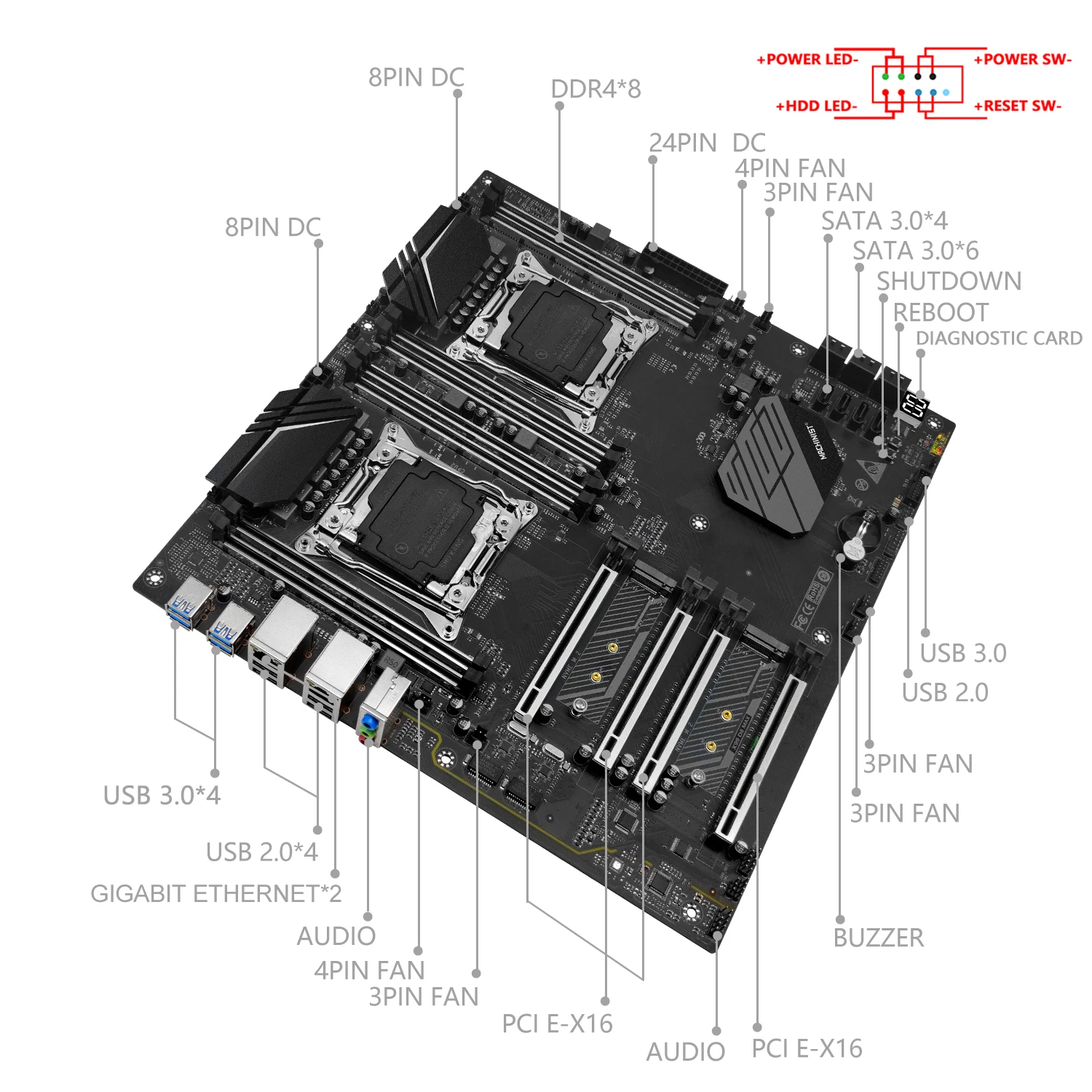

Specification:

Motherboard series: Intel series

Motherboard model: MACHINIST D8-MAX
Dual E-ATX, Luxury slab

CPU pin: LGA2011-3 socket

Chipset: C612/X99

Memory support: DDR4 ECC server memory and DDR4 desktop memory

Memory slot: DDR4*8 eight channels, support 2133/2400/2666/3000MHZ frequency memory, maximum support: 512G(desktop general memory/ECC memory)

Storage interface: SATA3.0*10, M.2 NVME protocol interface*2

Expansion interface: 4*PCI Expressx16

Onboard network card: 2*reaItek8111 Gigabit network card

Power interface: 24pin+8pin+8pin

Fan interface: 4pin*2, 3pin*2

PCB layers: 12-layer PCB+12-phase power supply

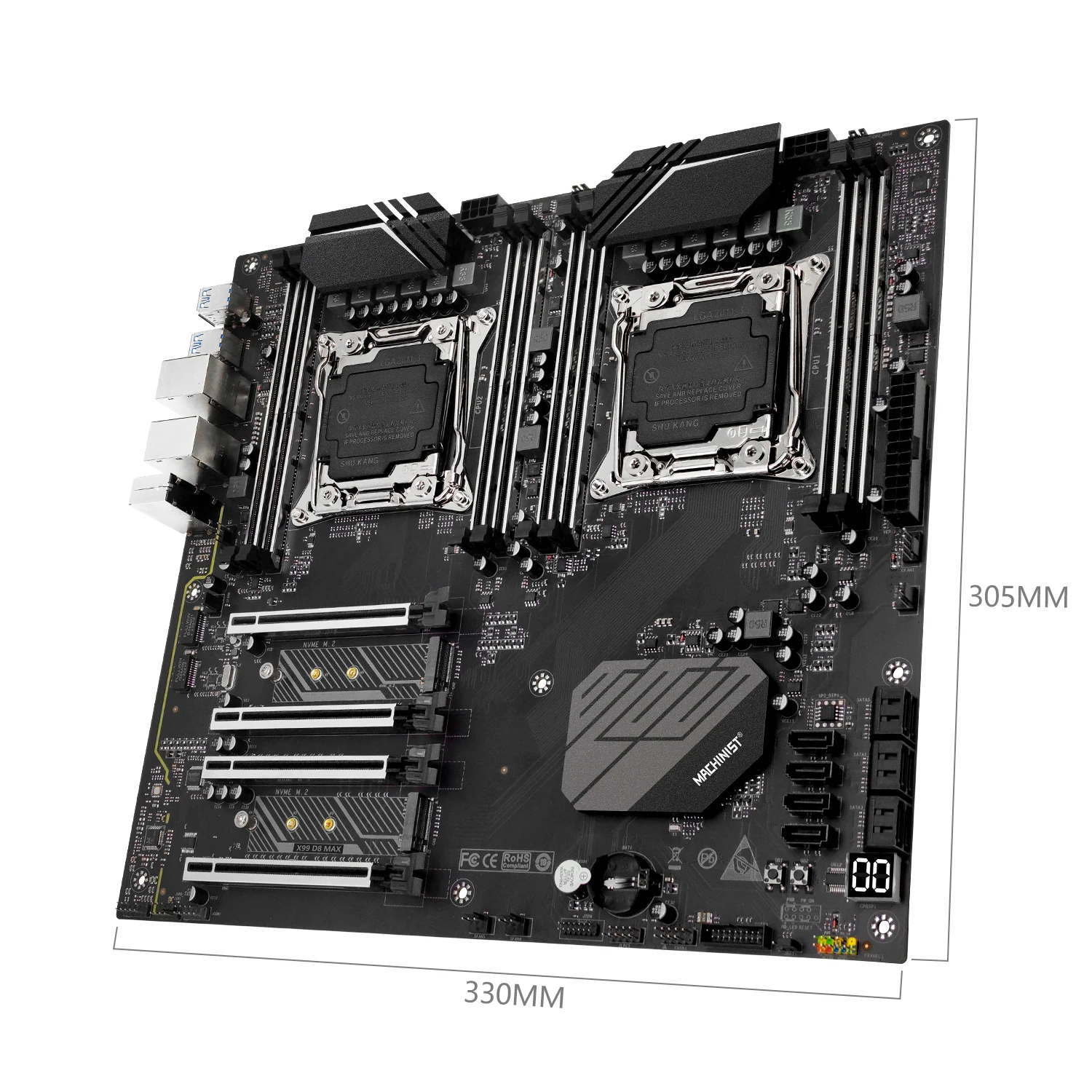

Motherboard size: 330mm*305mm

Motherboard specification: E-ATX

notes:

1: The color of the slot bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.

2: Due to manual measurement, please allow a difference of 1-3mm.

3: Due to different monitors and different lighting, the picture may not show the actual color of the product. Thank you for your understanding.

4: This plane needs a powerful power supply. Please make sure that your power supply is sufficient to support this scenario. (At least 400w brand power supply)

5: The battery in the motherboard photos will be removed before shipment, because the use of batteries is prohibited in CN post and custom.

For tariff issues, please make sure that you can solve the customs clearance problem yourself. If you can’t solve it, we don’t recommend that you buy goods in our store. We are not responsible for tariffs. Thank you for your understanding
