Description

Specifications:

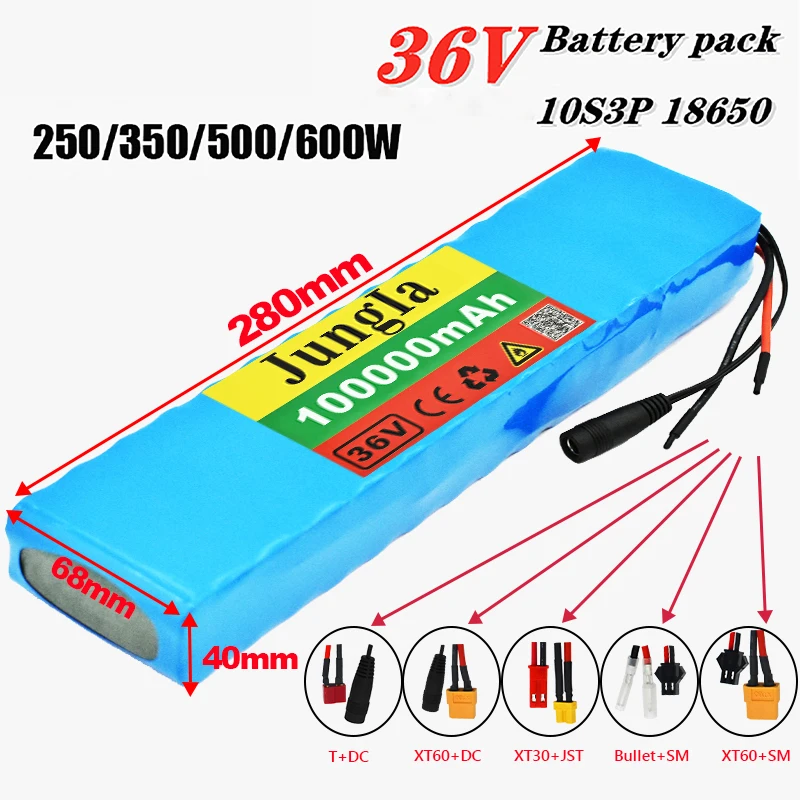

• Model: 18650-10S3P

• Cell count: 30 pieces(10S3P)

• Nominal voltage: 36V

• Charge voltage: 42V

• Typical capacity: 100Ah

• Rated power: 600W

• BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.

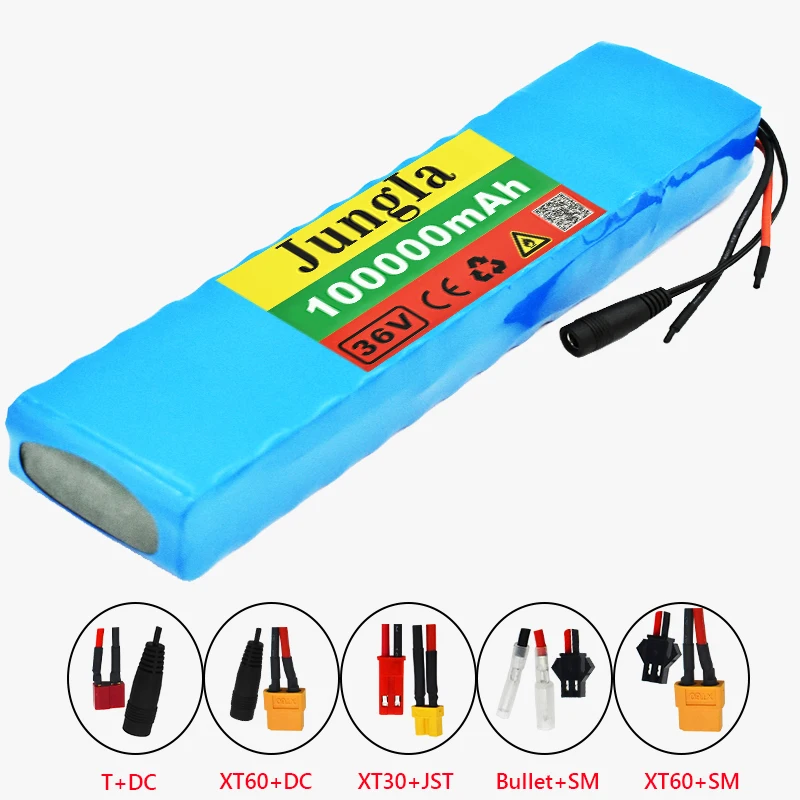

• Connector: T plug for discharge and DC5521 for charge

• Package: heat shrinkable PVC, random color

• Output voltage range: 28V-42V

• Discharge cut-off voltage: 28V

• Charge cut-off voltage: 42V

• Charge method: CC-CV

• Max. Charge current: 5A

• Charge temperature: 0-45 ° C

• Discharge temperature: -10-60 ℃

• Storage temperature: -20-45 ° C (3 months)

• Cycle life: 80% DOD after 1000 cycles

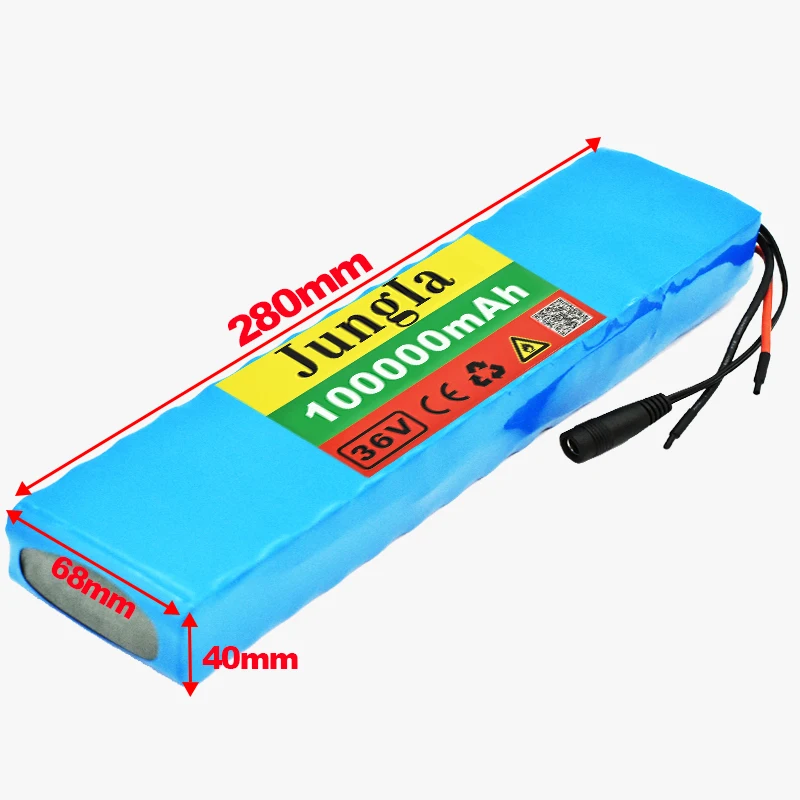

• Size: 290 * 68 * 40 mm(±3mm)

• Weight: 1300g(±50g)

Application:
Suitable for less than 600W all 36V DC equipment. E-bike, scooters, etc.
