Description

Professional custom-made DB9 hole to two rows of DB15 DB15 to DB9 9-pin to 15-pin electronic weighing line serial port line

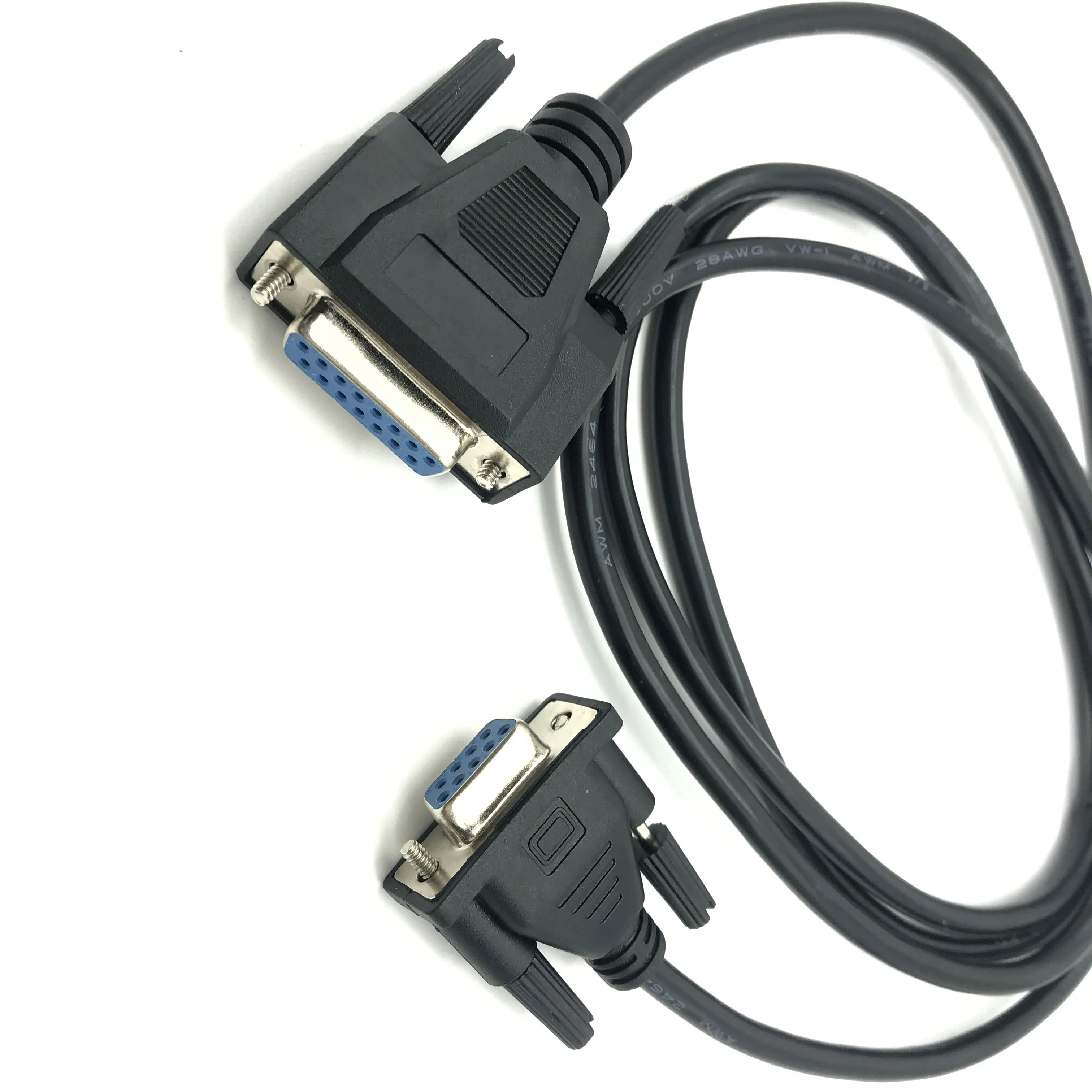

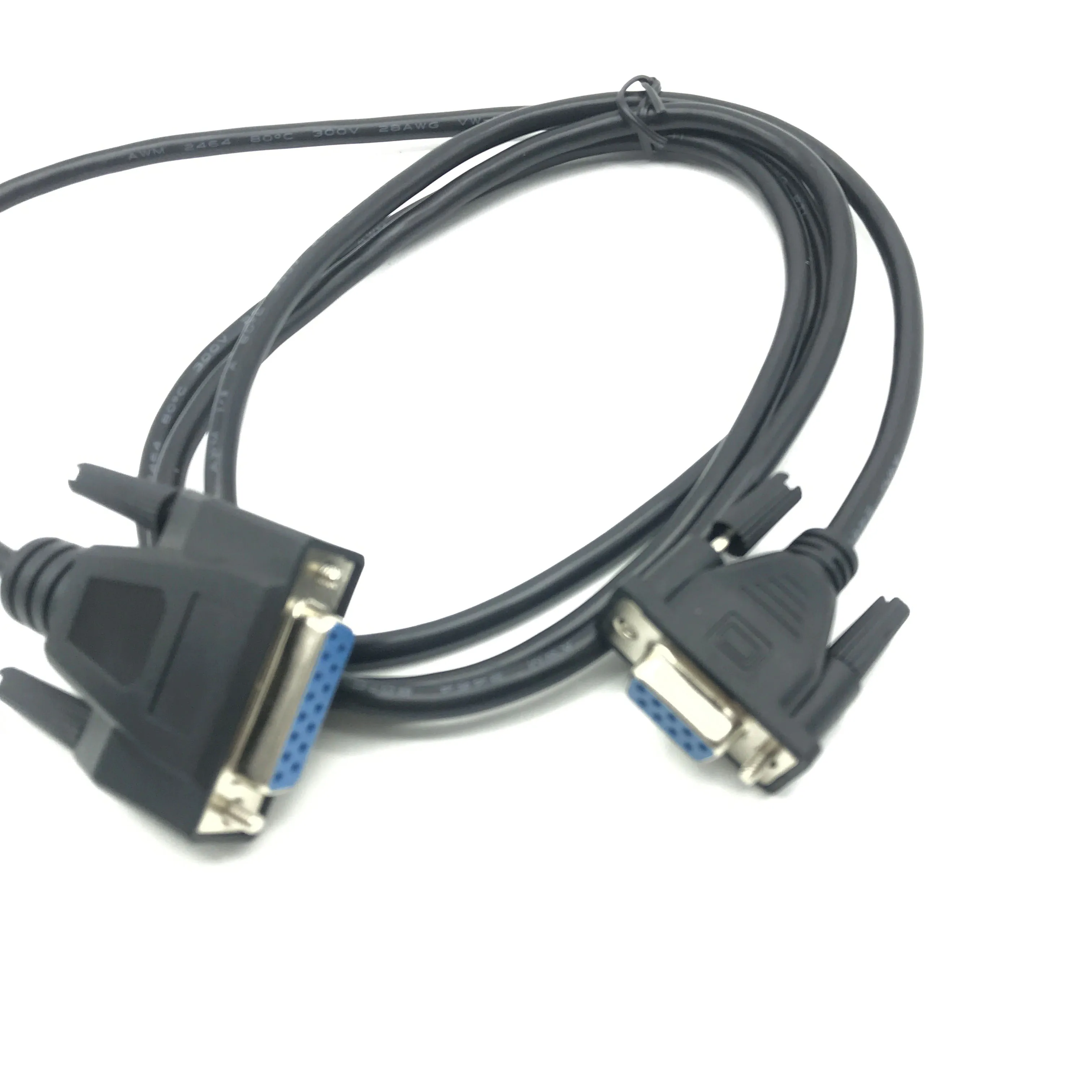

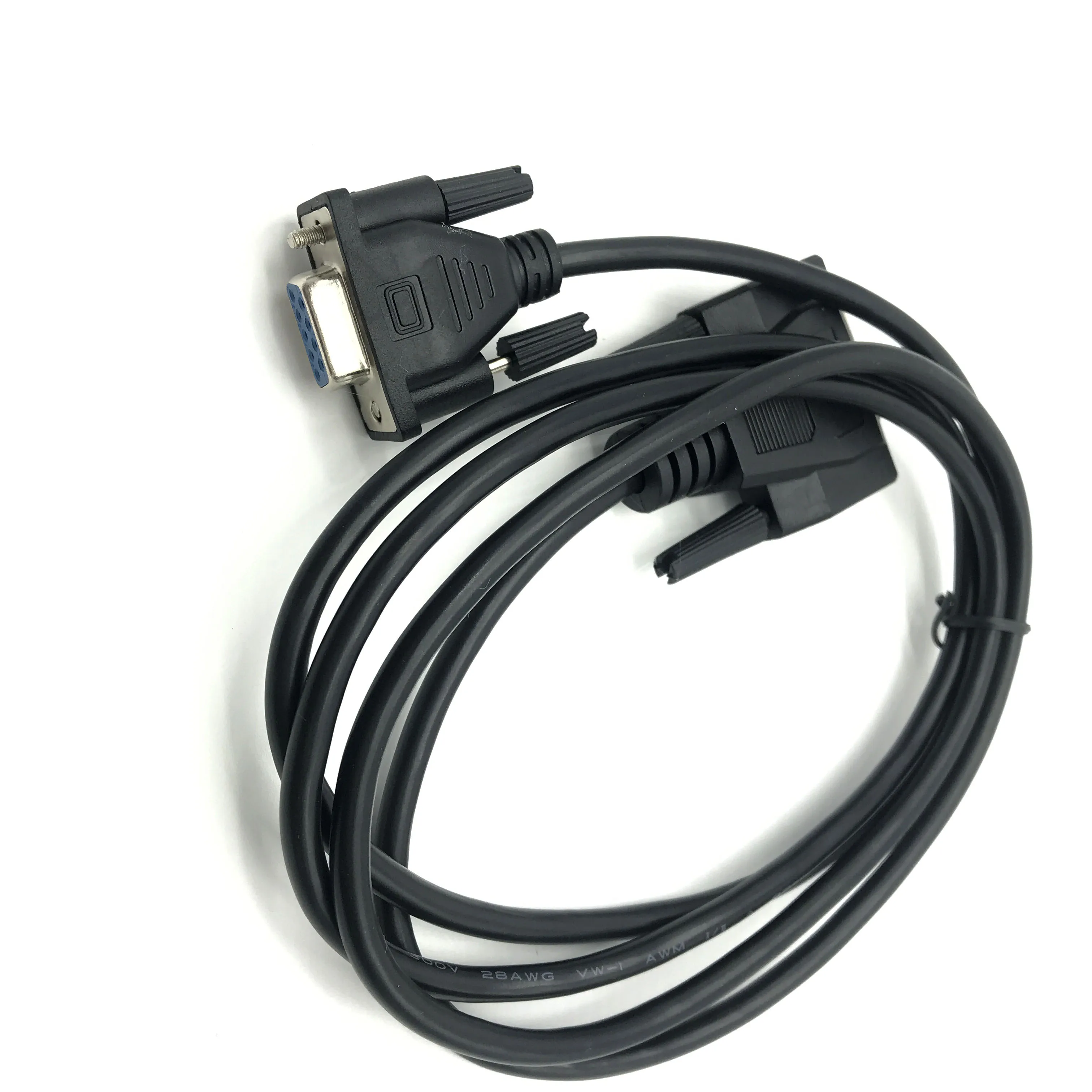

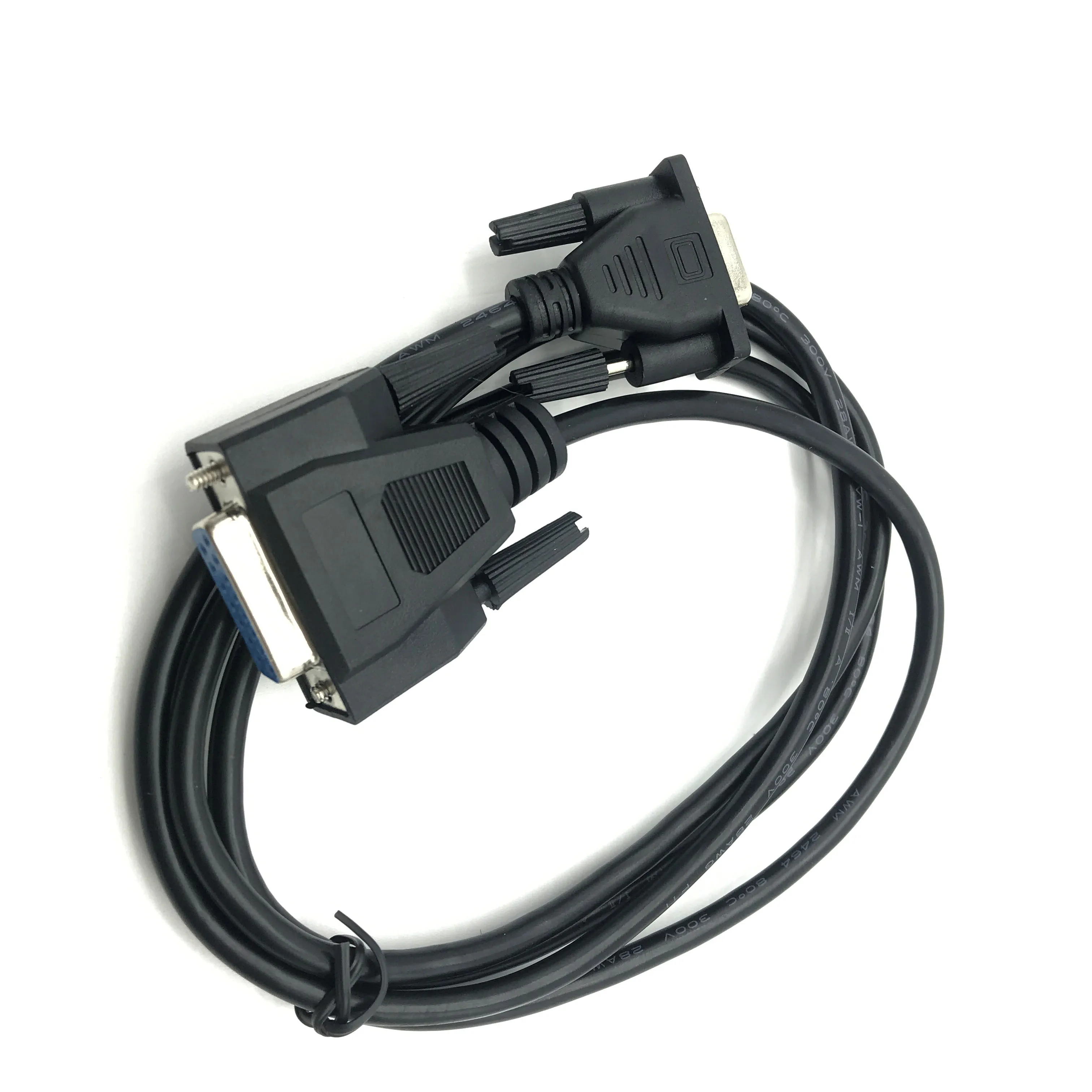

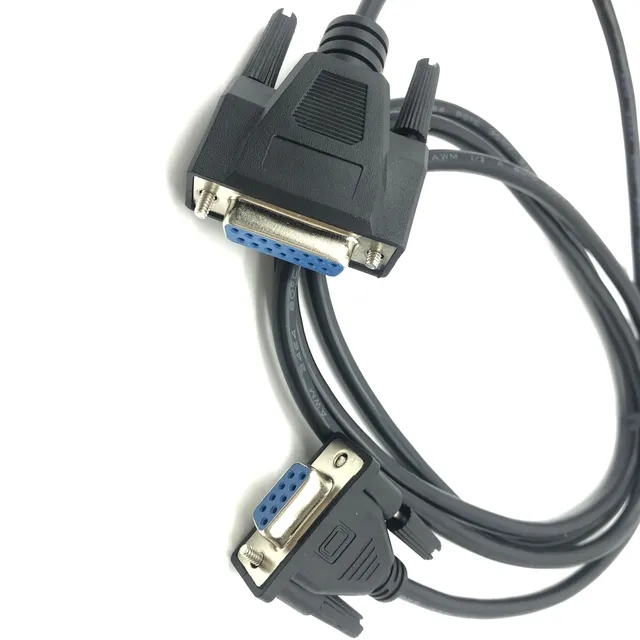

Name: DB9 to DB15 two-row data cable

Interface: the pin is called male, the hole is called female (you can consult customer service if you don’t understand)

Material: 28AWG all copper, aluminum foil shield, foot rice line

Because there is no unified standard for the wiring method of this kind of wire, please confirm whether you want a common connection method in the market. The default delivery method for direct purchase payment is the common method of the marketplace. Other circuit connection methods provide circuit drawings or samples to find customer service can be customized according to requirements, 1 minimum order, small quantities can be shipped on the same day, welcome to consult!

Common market connection:

DB9 – DB15

1 – 1

2 – 2

3 – 3

4 – 13

5 – 14

6 – 6

7 – 7

8 – 8

9-10

(others are not connected)

Additional information

Package	Yes
Model Number	DB15 to db9
Type	Power Cable
Brand Name	AQJG
Origin	Mainland China
Certification	CE
