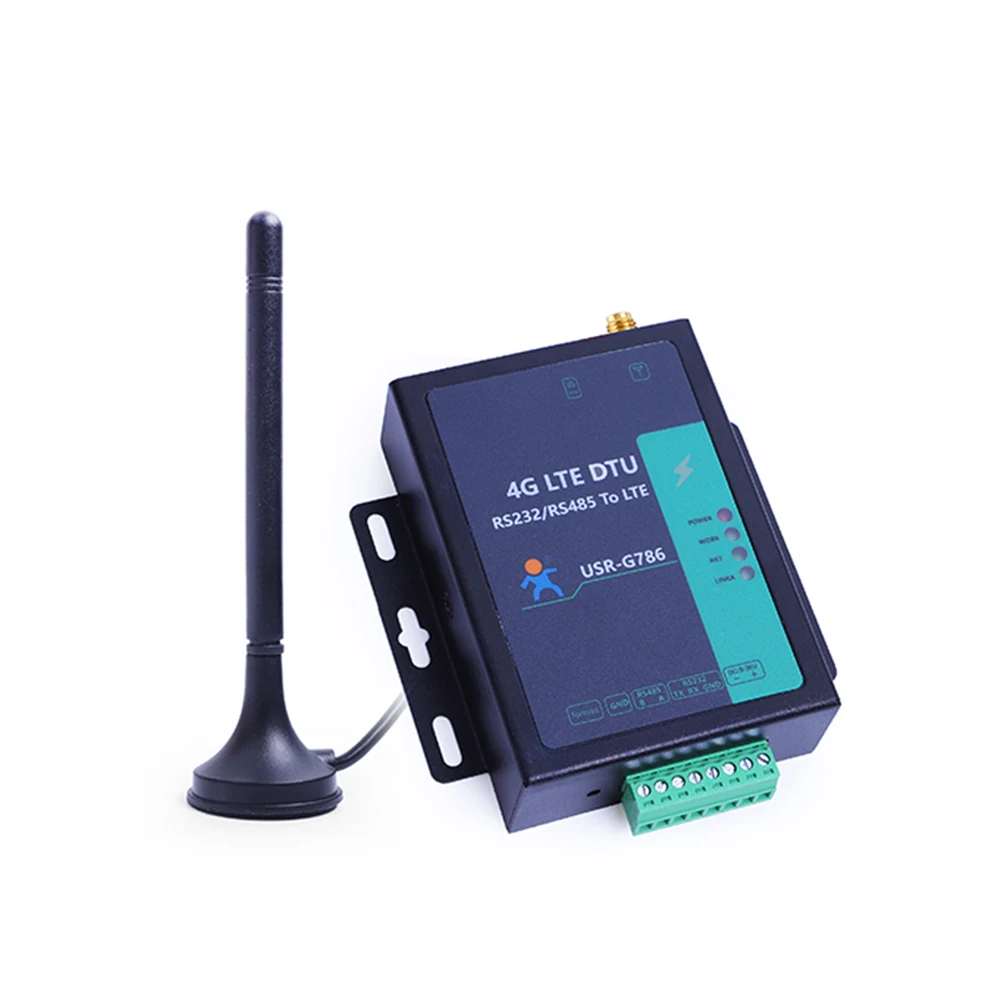

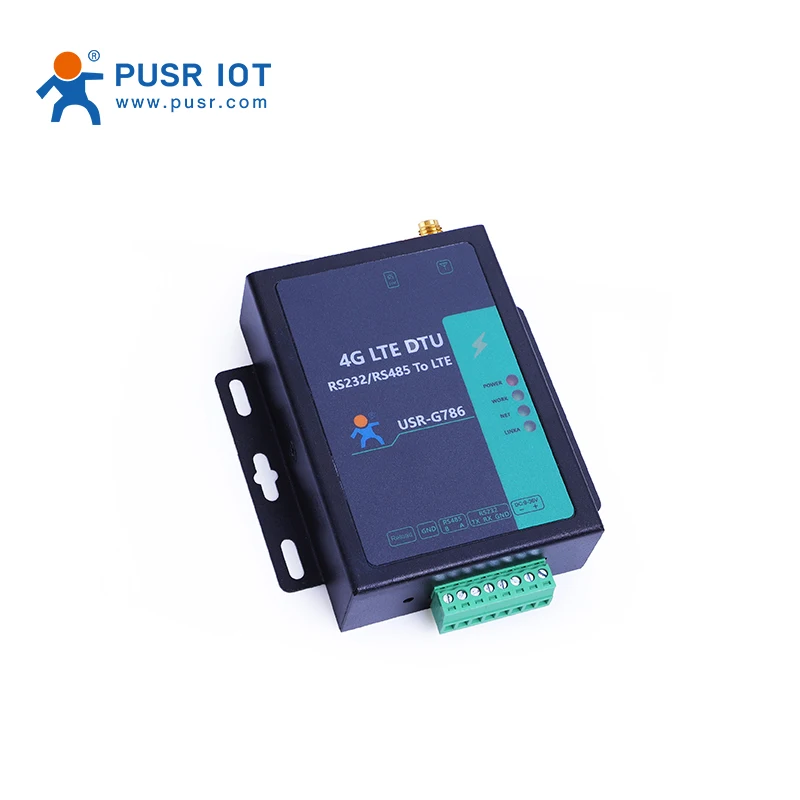

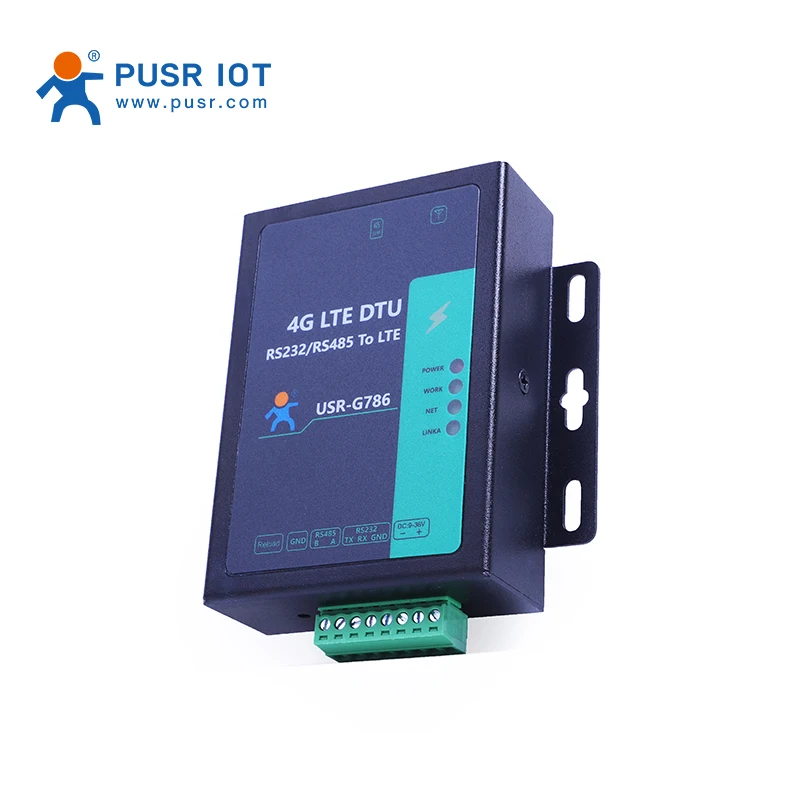

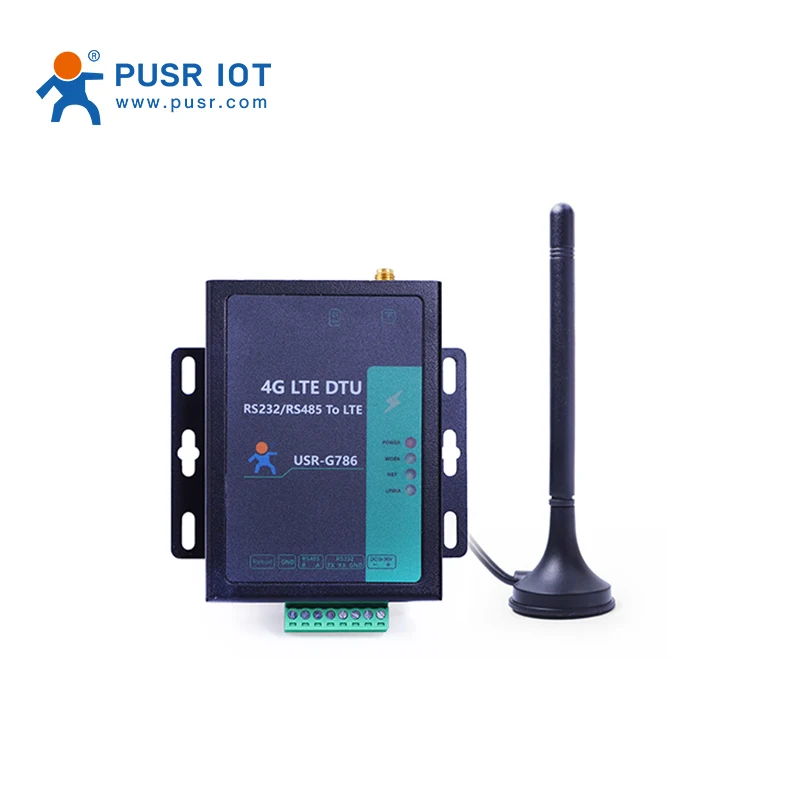

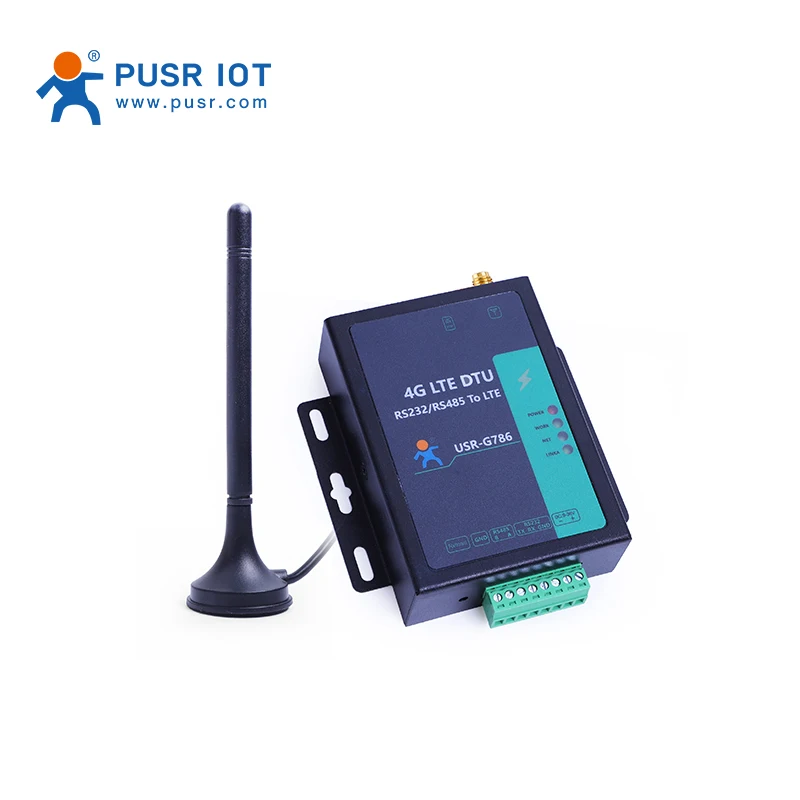

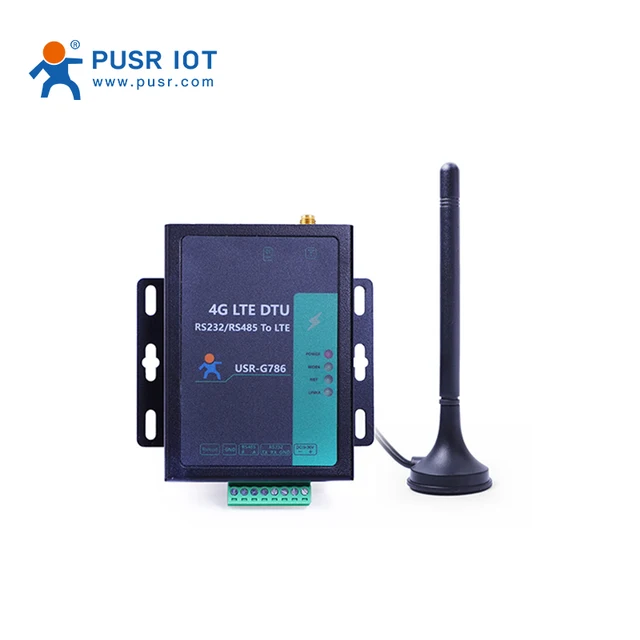

PUSR Global Frequency Industrial M2m Rs485 4g Lte Modem Gsm Serial USR-G786-G
$115.15
- Description
- Additional information
Description
Product Description
Reliable Serial to 4G Cellular Communication. With RS232 or RS485 interfaces, full network coverage, wide temperature and wide voltage, multi center transmission。Provides wireless data communications between field serial devices and the central control system to enable remote control of industrial field sites.G786-G is ideal for M2M and IoT applications including distribution automation, smart metering, water & wastewater, heating, street light monitoring and etc.
● Global Bands, Covering Global Regions
● RS485 Electrical Isolation
● High Reliability, High Rate, Low Latency
● FOTA Remote Upgrade
|
Models |
USR-DR504-G |
USR-G786-G |
USR-DR504-EUX |
USR-G786-EUX |
|
|
LTE Category |
LTE Cat.4 |
LTE Cat.4 |
LTE Cat.4 |
LTE Cat.4 |
|
|
Frequency Bands |
LTE FDD |
B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28 |
B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28 |
B1/B3/B7/B8/B20/B28A |
B1/B3/B7/B8/B20/B28A |
|
LTE TDD |
B38/B39/B40/B41 |
B38/B39/B40/B41 |
B38/B40/B41 |
B38/B40/B41 |
|
|
WCDMA |
B1/B2/B4/B5/B6/B8/B19 |
B1/B2/B4/B5/B6/B8/B19 |
B1/B8 |
B1/B8 |
|
|
GSM |
B2/B3/B5/B8 |
B2/B3/B5/B8 |
B3/B8 |
B3/B8 |
|
|
Transmission Speed |
LTE-FDD |
150Mbps(DL)/50Mbps(UL) |
150Mbps(DL)/50Mbps(UL) |
150Mbps(DL)/50Mbps(UL) |
150Mbps(DL)/50Mbps(UL) |
|
LTE-TDD |
130Mbps(DL)/30Mbps(UL) |
130Mbps(DL)/30Mbps(UL) |
130Mbps(DL)/30Mbps(UL) |
130Mbps(DL)/30Mbps(UL) |
|
|
DC-HSDPA |
42Mbps (DL) |
42Mbps (DL) |
42Mbps (DL) |
42Mbps (DL) |
|
|
HSUPA |
5.76Mbps (UL) |
5.76Mbps (UL) |
5.76Mbps (UL) |
5.76Mbps (UL) |
|
|
WCDMA |
384Kbps(DL)/ 384Kbps(UL) |
384Kbps(DL)/ 384Kbps(UL) |
384Kbps(DL)/ 384Kbps(UL) |
384Kbps(DL)/ 384Kbps(UL) |
|
|
GSM(EDGE) |
296Kbps (DL)/ 236.8Kbps (UL) |
296Kbps (DL)/ 236.8Kbps (UL) |
296Kbps (DL)/ 236.8Kbps (UL) |
296Kbps (DL)/ 236.8Kbps (UL) |
|
|
GSM (GPRS) |
107Kbps (DL)/ 85.6Kbps (UL) |
107Kbps (DL)/ 85.6Kbps (UL) |
107Kbps (DL)/ 85.6Kbps (UL) |
107Kbps (DL)/ 85.6Kbps (UL) |
|
|
Serial Parameters |
接口形式 |
RS485(Terminal)*1 |
RS485(Termianl)*1 RS232(Termianl)*1 |
RS485(Terminal)*1 |
RS485(Termianl)*1 RS232(Termianl)*1 |
|
Data Bits |
8 |
8 |
8 |
8 |
|
|
Stop Bits |
1,2 |
1,2 |
1,2 |
1,2 |
|
|
Parity Bits |
NONE,ODD,EVEN |
NONE,ODD,EVEN |
NONE,ODD,EVEN |
NONE,ODD,EVEN |
|
|
Baud Rate |
2400～230400 |
2400～230400 |
2400～230400 |
2400～230400 |
|
|
Physical Interfaces |
SIM/USIM card |
1.8V/3V(中卡) |
1.8V/3V(大卡) |
1.8V/3V(中卡) |
1.8V/3V(大卡) |
|
Antenna |
SMA Female |
SMA Female |
SMA Female |
SMA Female |
|
|
USB |
USB 2.0 |
– |
USB 2.0 |
– |
|
|
Indicators |
POWER,WORK,NET,LINK,RSSI |
POWER,WORK,NET,LINK |
POWER,WORK,NET,LINK,RSSI |
POWER,WORK,NET,LINK |
|
|
Reload |
Button |
Button |
Button |
Button |
|
|
Reset |
/ |
/ |
/ |
/ |
|
|
Hardware Characteristics |
Input Voltage |
9V～36V |
9V～36V |
9V～36V |
9V～36V |
|
Connector |
Terminal |
Terminal |
Terminal |
Terminal |
|
|
Housing material |
ABS Plastic |
Metal |
ABS Plastic |
Metal |
|
|
Dimensions(mm) |
44.5×31.8×13.94 (L*W*H) |
111.51×94×28 (L*W*H) |
44.5×31.8×13.94 (L*W*H) |
111.51×94×28 (L*W*H) |
|
|
Operating temperature |
-30℃～+75℃ |
-35℃～+75℃ |
-30℃～+75℃ |
-35℃～+75℃ |
|
|
Storage Temperature |
-40℃～+85℃ |
-40℃～+90℃ |
-40℃～+85℃ |
-40℃～+90℃ |
|
|
Operating humidity |
5%～95% |
5%～95% |
5%～95% |
5%～95% |
|
|
Storage humidity |
5%～95% |
5%～95% |
5%～95% |
5%～95% |
|
|
Software |
Protocol |
TCP/UDP/DNS/HTTP/FTP |
TCP/UDP/DNS/HTTP/FTP |
TCP/UDP/DNS/HTTP/FTP |
TCP/UDP/DNS/HTTP/FTP |
|
Serial to network |
2 sockets, default A |
2 sockets, default A |
2 sockets, default A |
2 sockets, default A |
|
|
SMS |
PDU/TEXT |
PDU/TEXT |
PDU/TEXT |
PDU/TEXT |
|
|
Configuration |
Serial,Net,SMS AT commands |
Serial,Net,SMS AT commands |
Serial,Net,SMS AT commands |
Serial,Net,SMS AT commands |
|
|
Cache |
5 packets |
5 packets |
5 packets |
5 packets |
|
|
Packaging mechanism |
Packaging time(ms) |
100~60000,default100 |
100~60000,default100 |
100~60000,default100 |
100~60000,default100 |
|
Packaging length(byte) |
100～1000,default 1000 |
100～1000,default 1000 |
100～1000,default 1000 |
100～1000,default 1000 |
|
|
Others |
Tool |
USR-Cat 4Configuration Utility |
USR-Cat 4Configuration Utility |
USR-Cat 4Configuration Utility |
USR-Cat 4Configuration Utility |
|
Certifications |
CE,ROSH |
CE,ROSH |
CE,ROSH |
CE,ROSH |
|

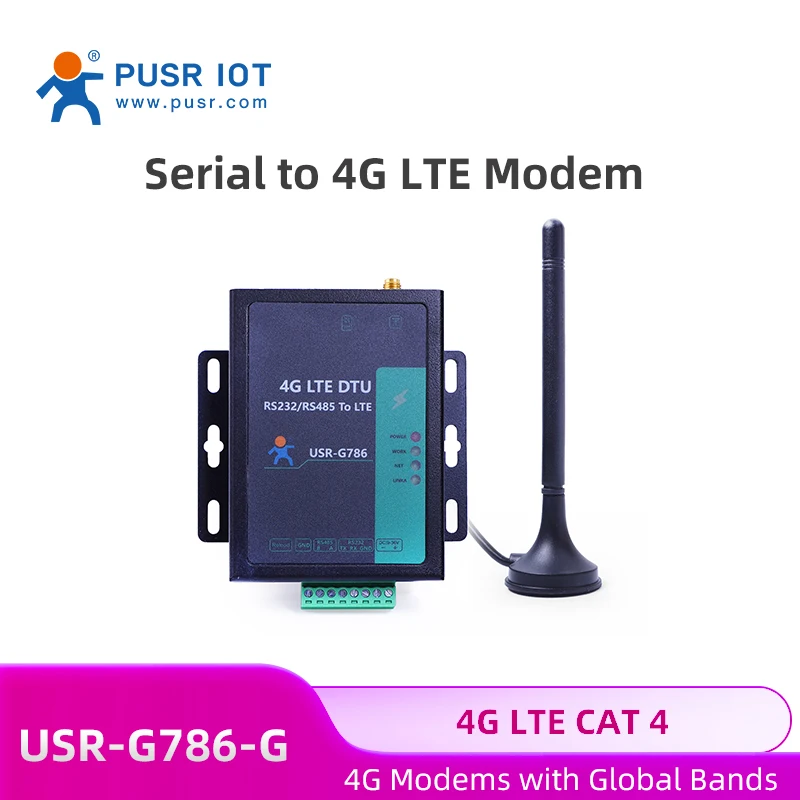

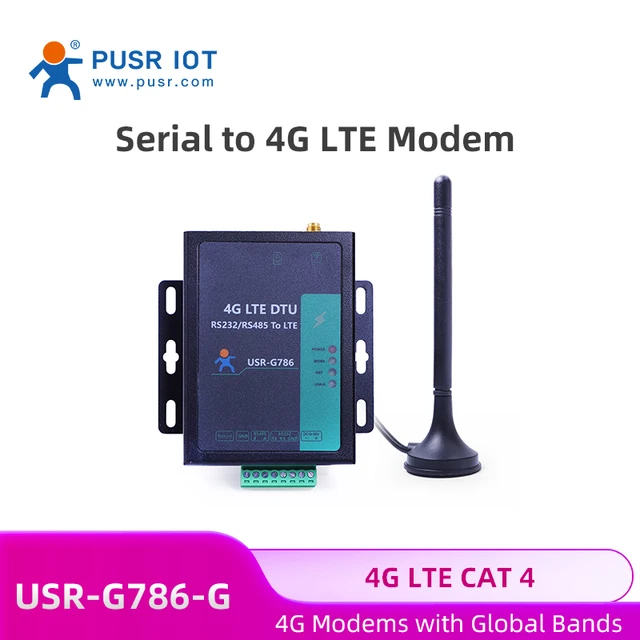

Serial to 4G LTE Modem
4G LTE CAT 4
High reliability,
High speed, Low latency
Terminal block, RS232/485
Industrial Design,
metal housing, IP30 protection
Transparent Transmission
Provide data two-way transparent transmission between field
serial devices and the central control server
Support 2 Socket connections, support TCP Client and UDP
Support custom heartbeat package and registration package
Private protocols can be customized
HTTPD Client
HTTPD Client submit serial data to the designated server
by HTTP (GET/POST) method
HTTPD Client
HTTPD Client submit serial data to the designated server
by HTTP (GET/POST) method
Modbus RTU to TCP
Modbus RTU/Modbus TCP protocol conversion for
industrial SCADA systems and field devices.

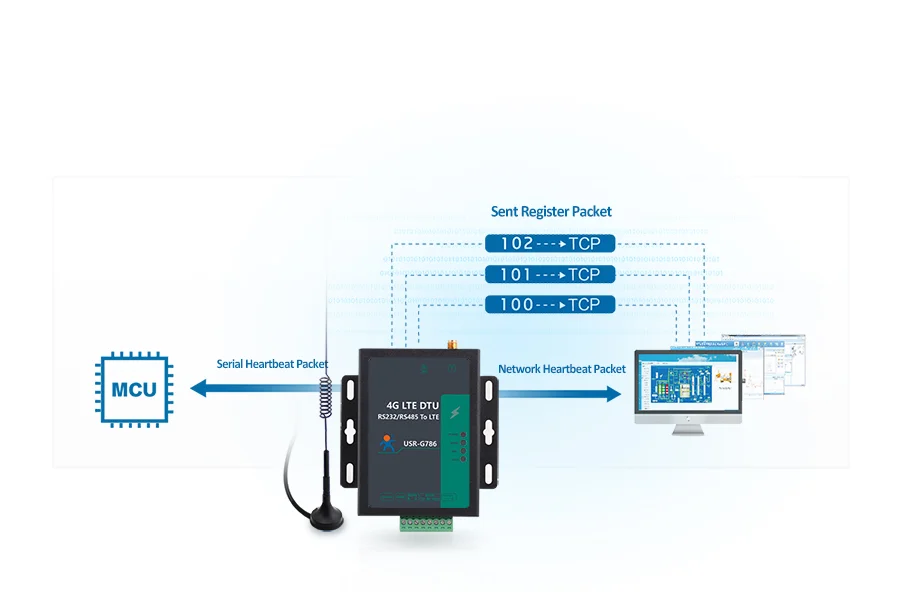

Registration Package plus Heartbeat Package
Registration Package plus Heartbeat Package
The registration packet is sent to the server to identify the device.
The heartbeat packet is used to judge the active state of the device when sent to
the server, and actively collect data when sent to the serial terminal.
The contents of registration package and heartbeat package, heartbeat
interval can be modified by AT command
Parameter Configuration
Support AT command setup by serial port,network ,
SMS and provide configuration tool for PC(windows).
Remote FOTA Upgrade
With the remote management platform,
it can realize the automatic firmware upgrade
The difference algorithm upgrade package is small,
saving upgrade traffic and time
Applications
G786 supports customized development based on many
different protocols such as MQTT and Modbus required by users.
Air Compressor IoT Monitoring System
The electromagnetic interference generated by the air compressor during operation
often affects the normal operation of other equipment. USR-G786 adopts
high-reliability RS485 electrical isolation to shield electromagnetic interference
while transmitting data.
Charging Pile – Data Transmission
When the charging pile is working, the data can quickly upload to the cloud server
through the USR-G786, which is convenient for the platform operators to manage piles
Agricultural IoT Environment Monitoring
USR-G786 can quickly upload the data collected by various sensors in an
agricultural greenhouse to a remote server through LTE or GPRS network. This is
convenient for the control center to monitor the environmental dynamics of
greenhouse in real-time and makes timely responses.
If you want to know more or download files, Please lick here:
4G Cellular Modems with Global Bands | M2M Cellular Modems-PUSR IOT
Additional information
| Package | Yes |
|---|---|
| Interface Type | RS-485 |
| Model Number | USR-G786-G |
| Style | Internal |
| Type | Wireless |
| Brand Name | PUSR |
| Origin | Mainland China |
| Certification | CE,FCC |
