Description

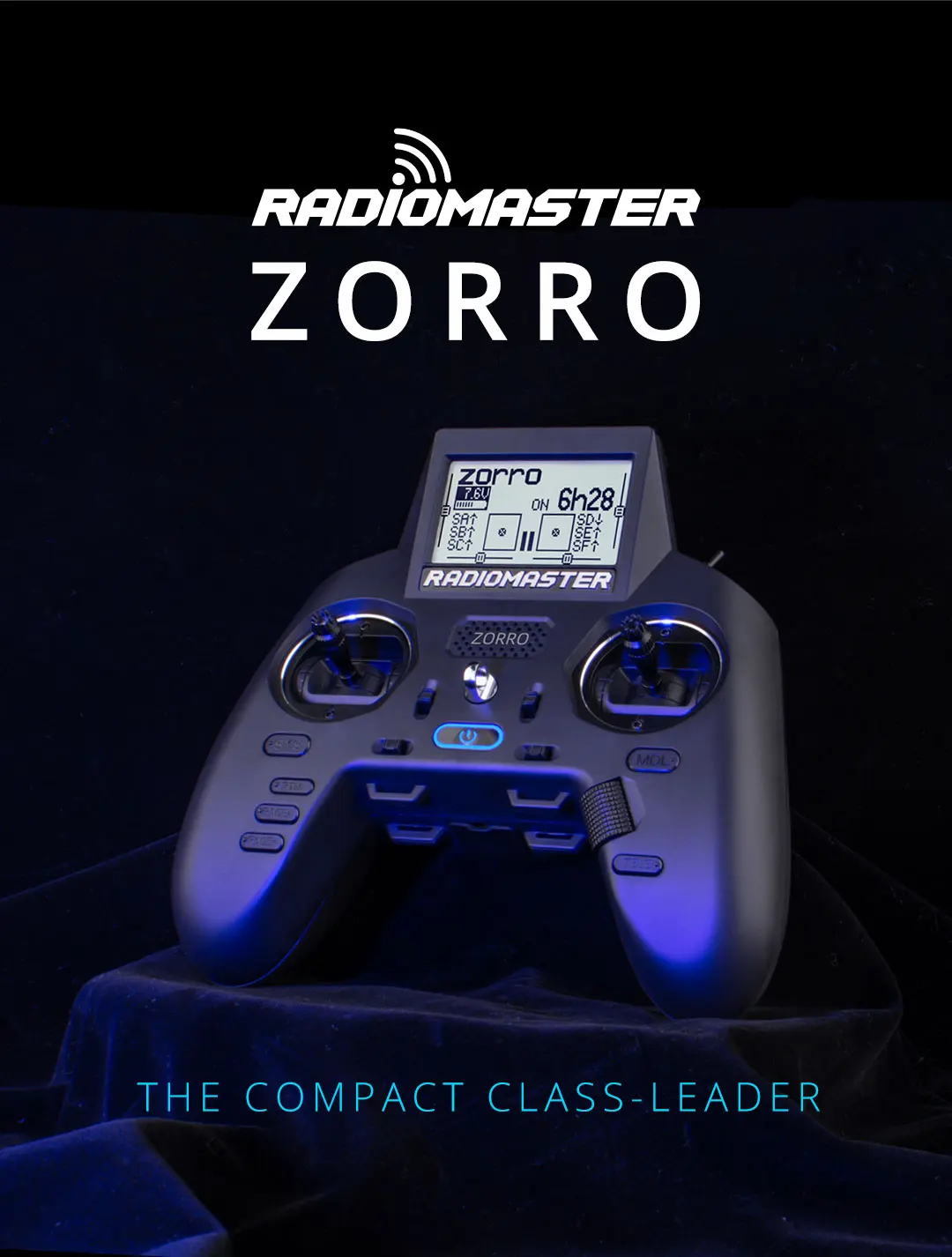

The new class leader in game control style radios is here! Meet the all new RadioMaster Zorro. Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Feature:

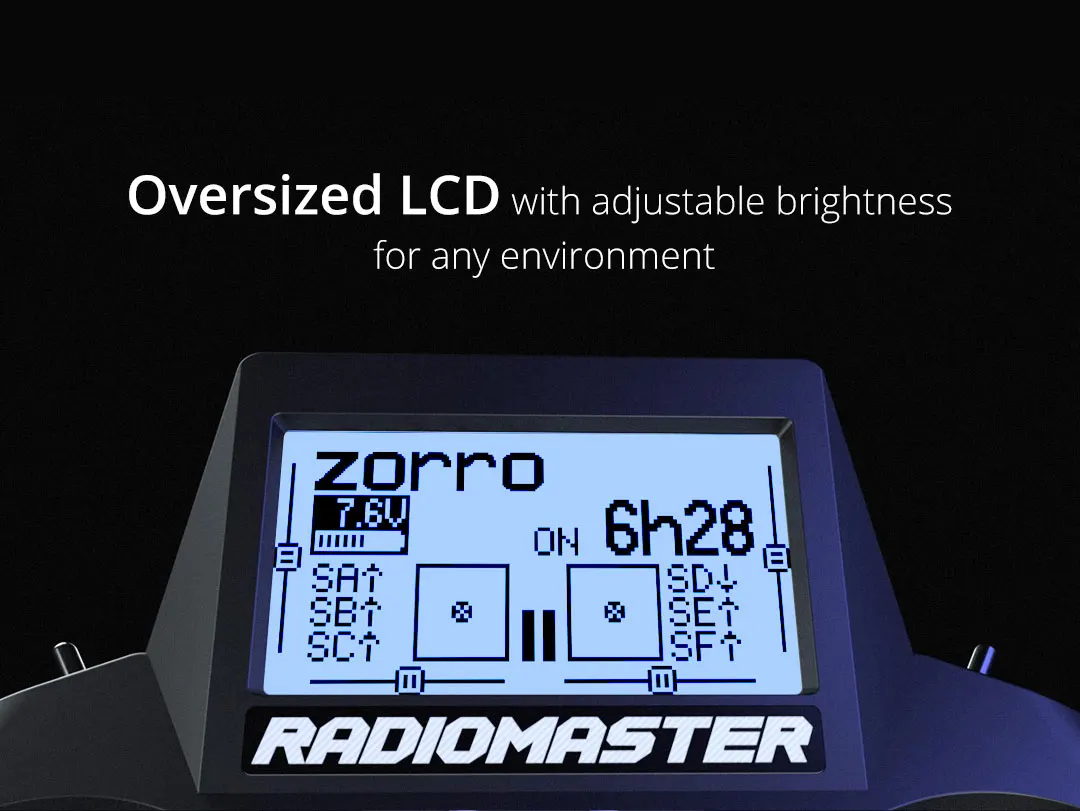

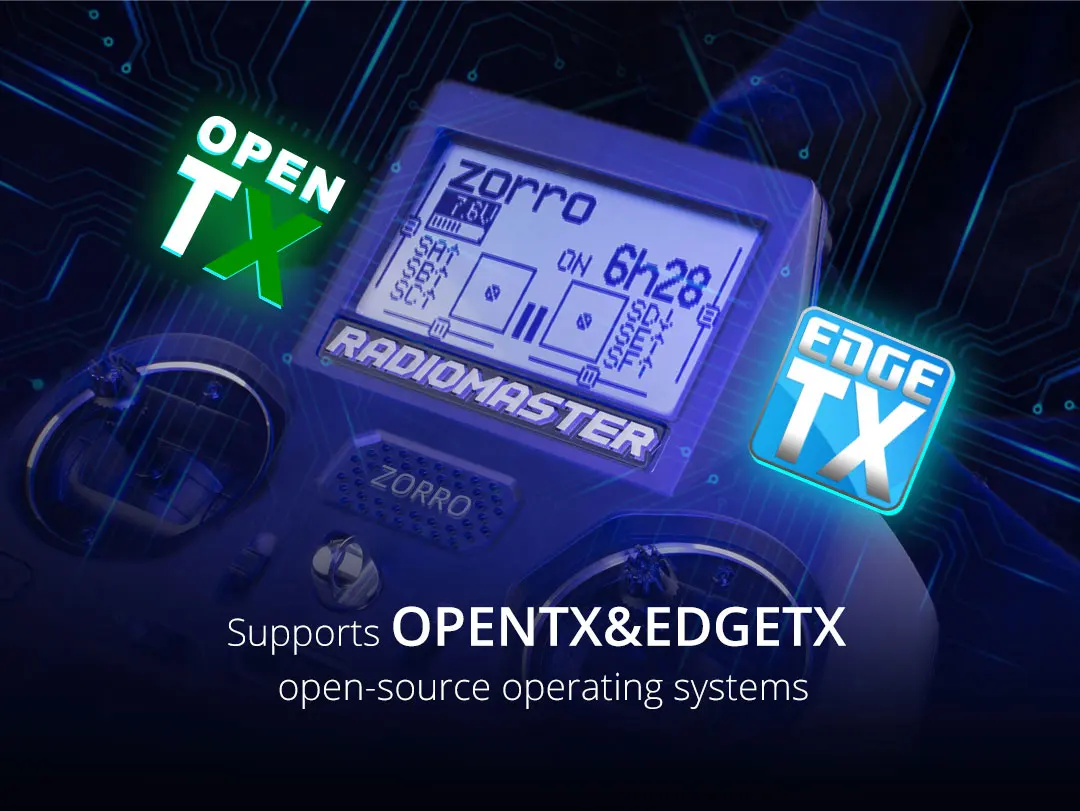

• Supports OPENTX&EDGETX,open-source operating systems,Oversized LCD with adjustable brighrness for any environment.

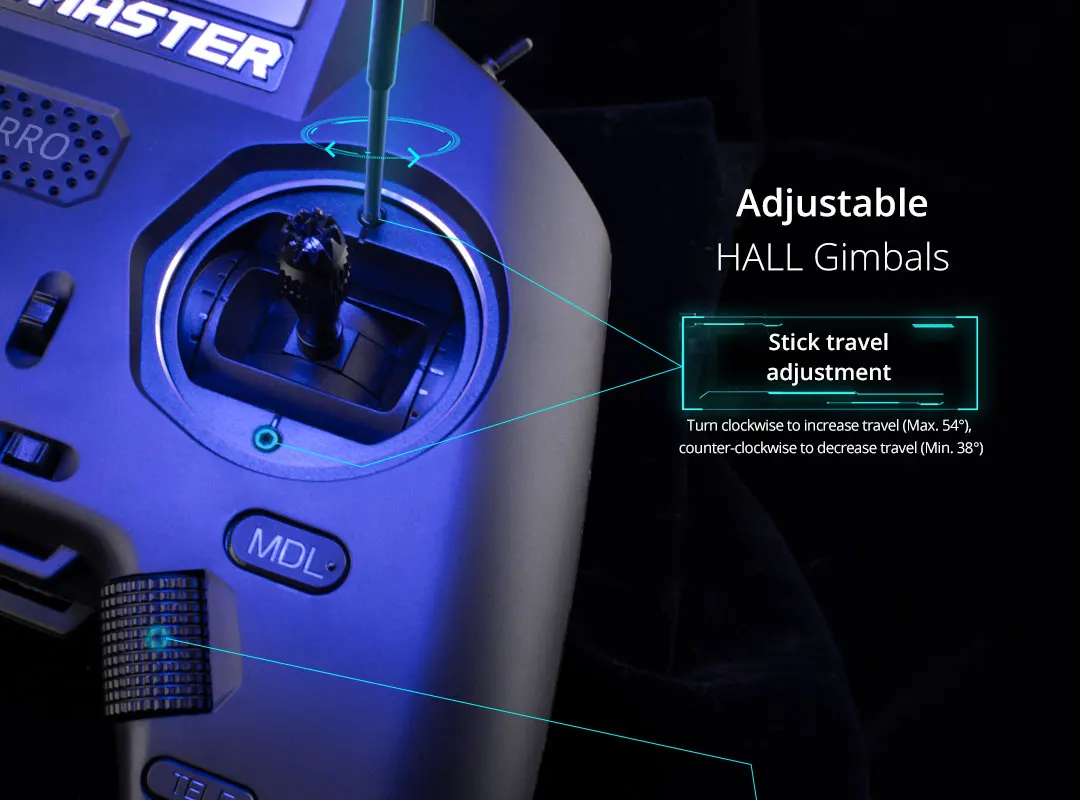

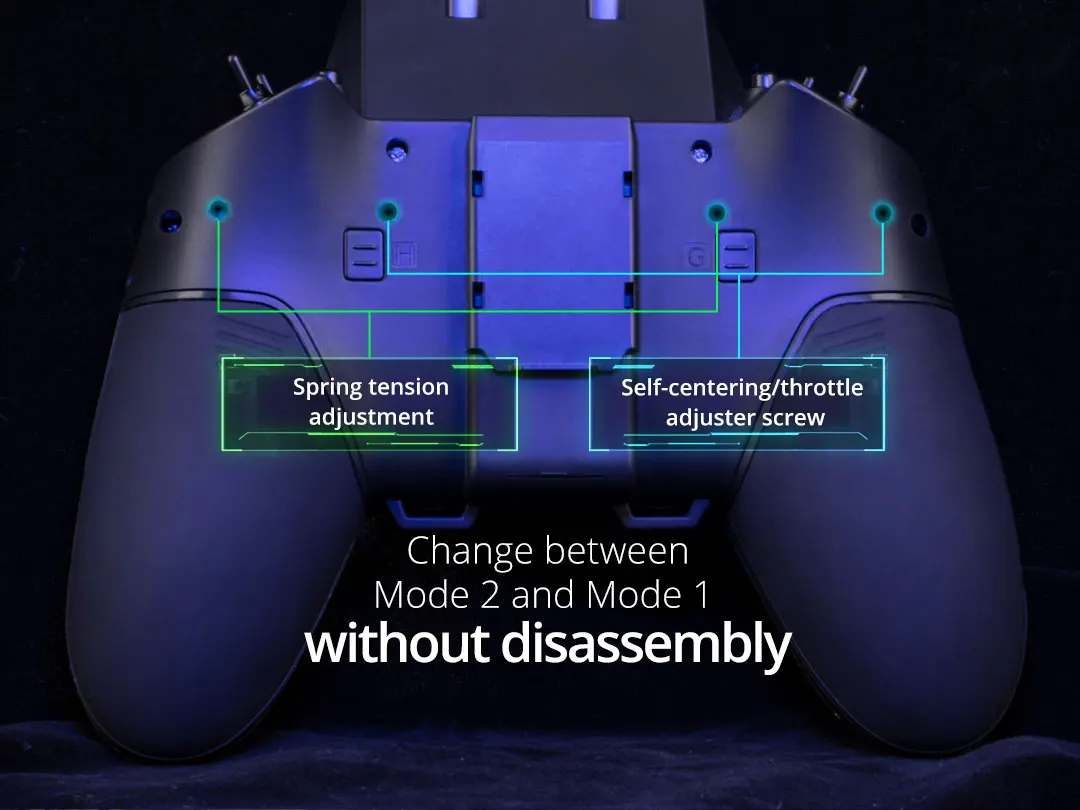

• Change between Mode 2 and Mode 1,Without Disassembly ;Adjuststable
  HallGimbals–Turn clockwise to increase
  travel(Max.54°）；Counter-clockwise to decrease travel(Min.38°）

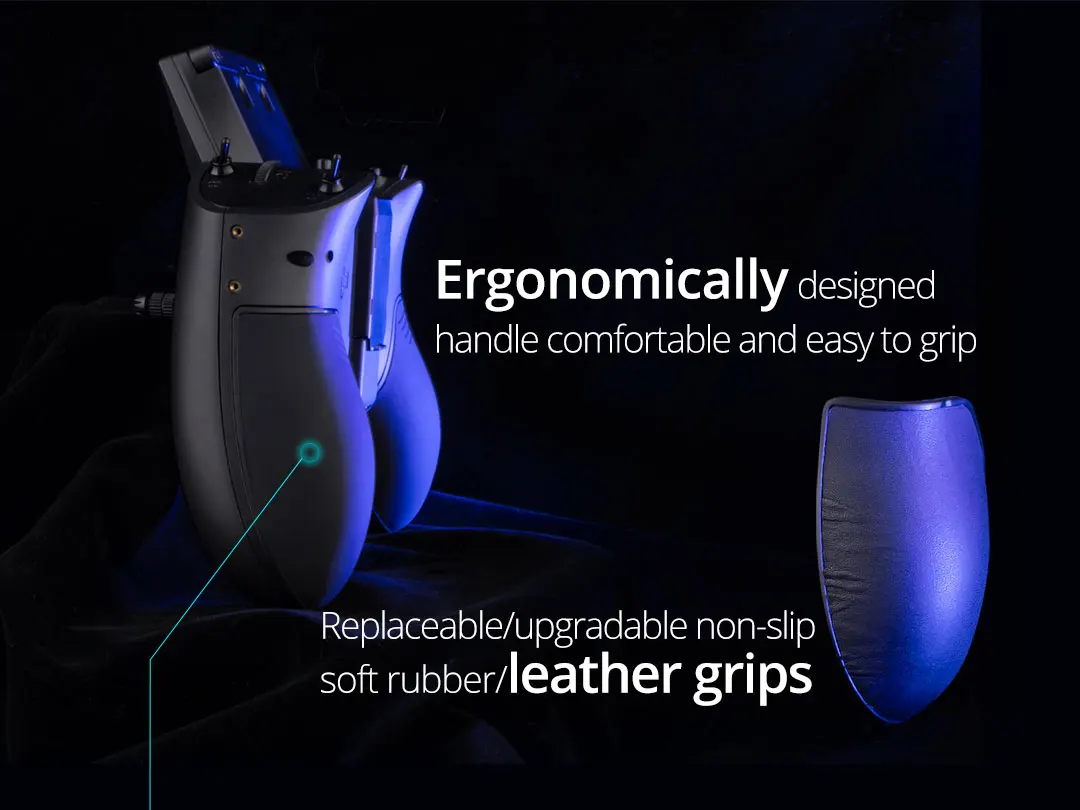

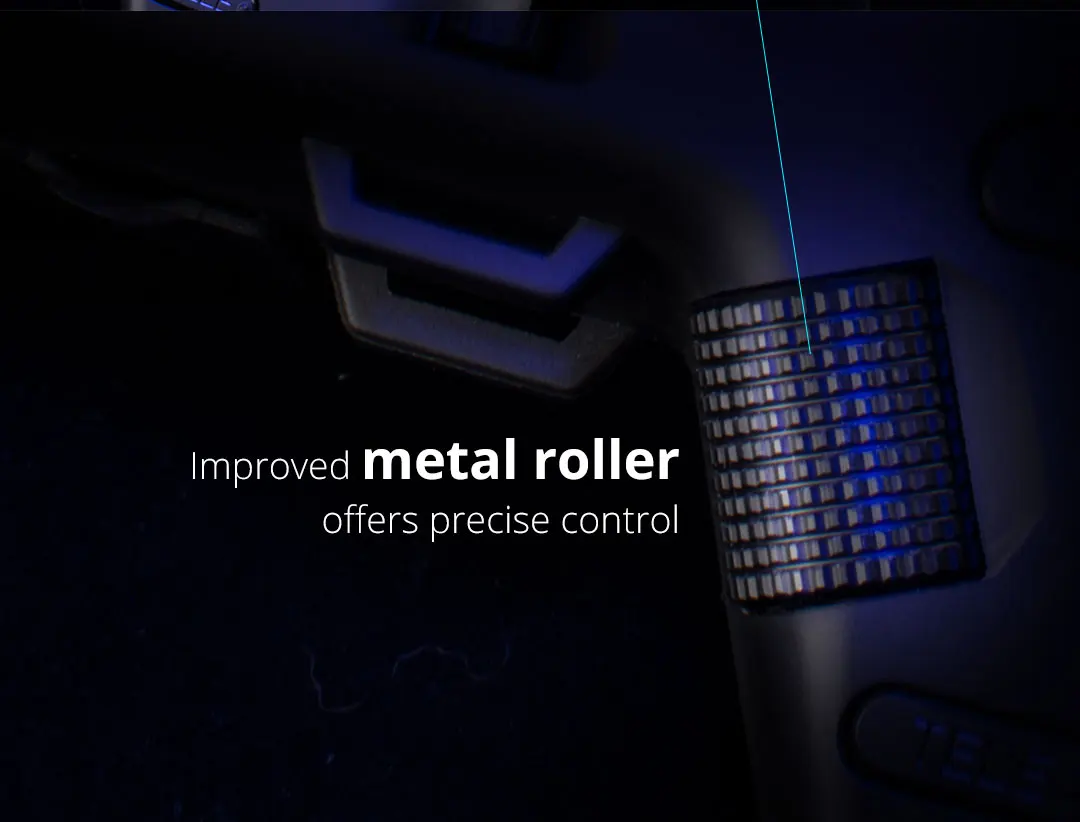

• Improved metal roller offer precise control,Ergonomically
  designed,handle comfortable and easy to grip,Replaceable/upgradable
  non-slip Soft rubber/Leather grips

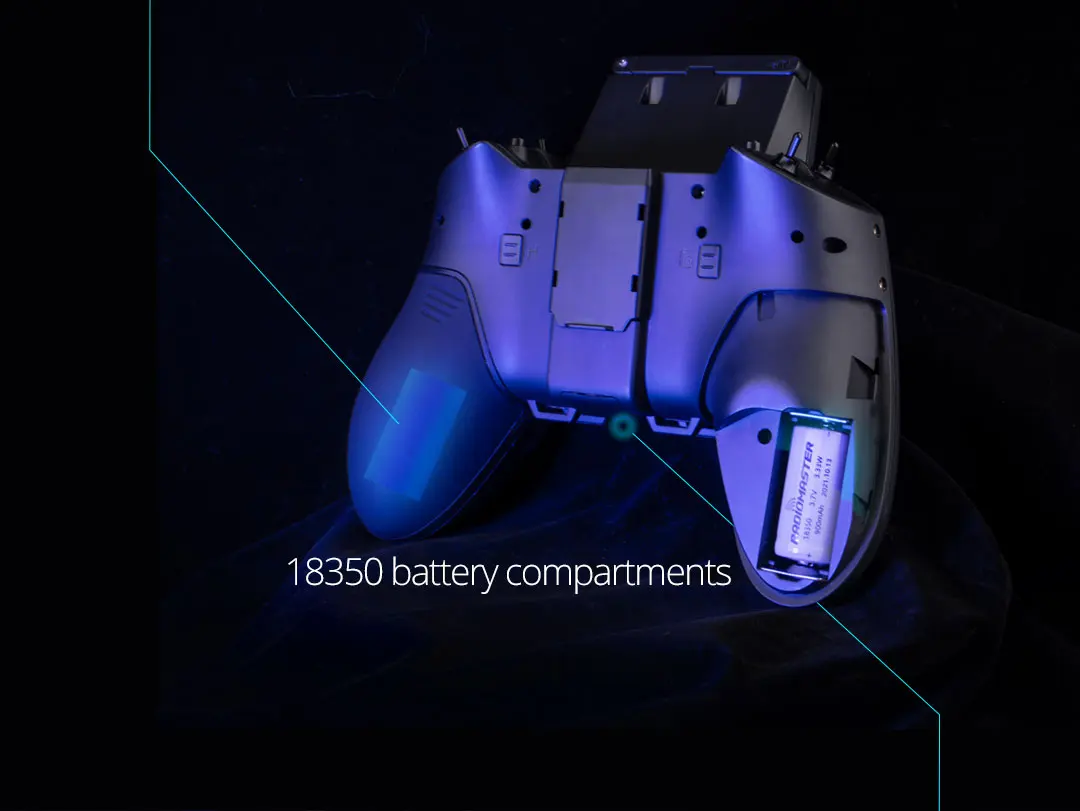

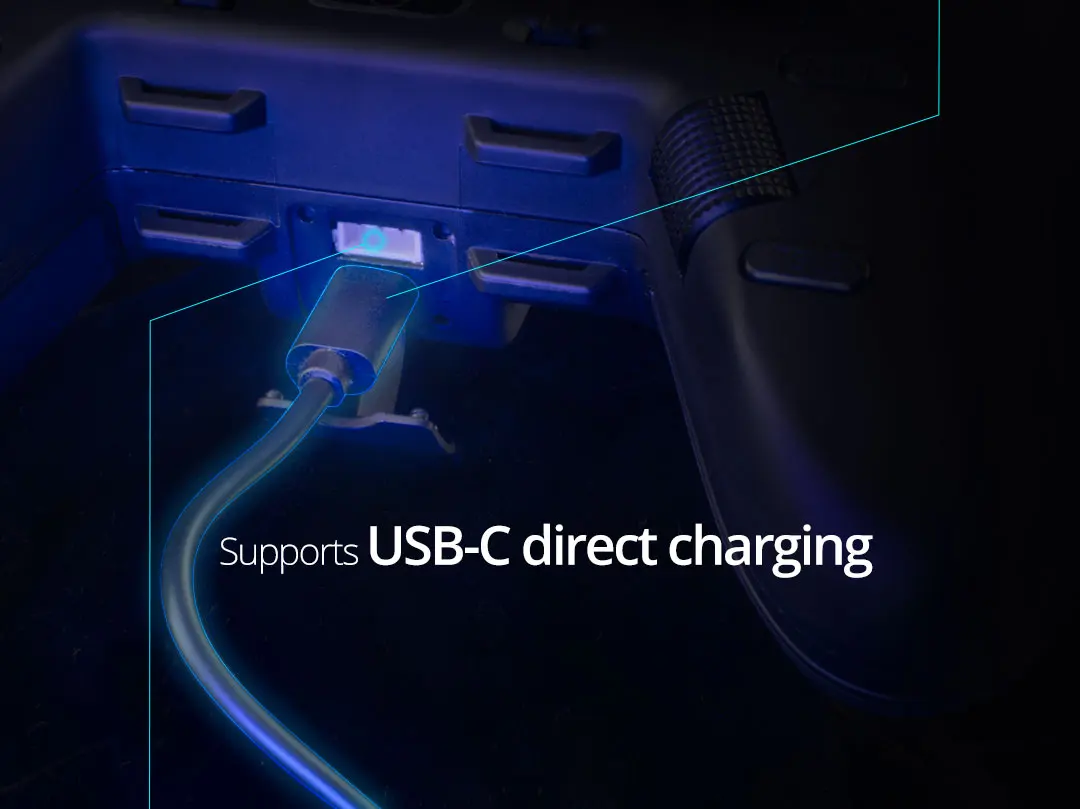

• 18350 battery compartments,supports USB-C direct charging,Supports

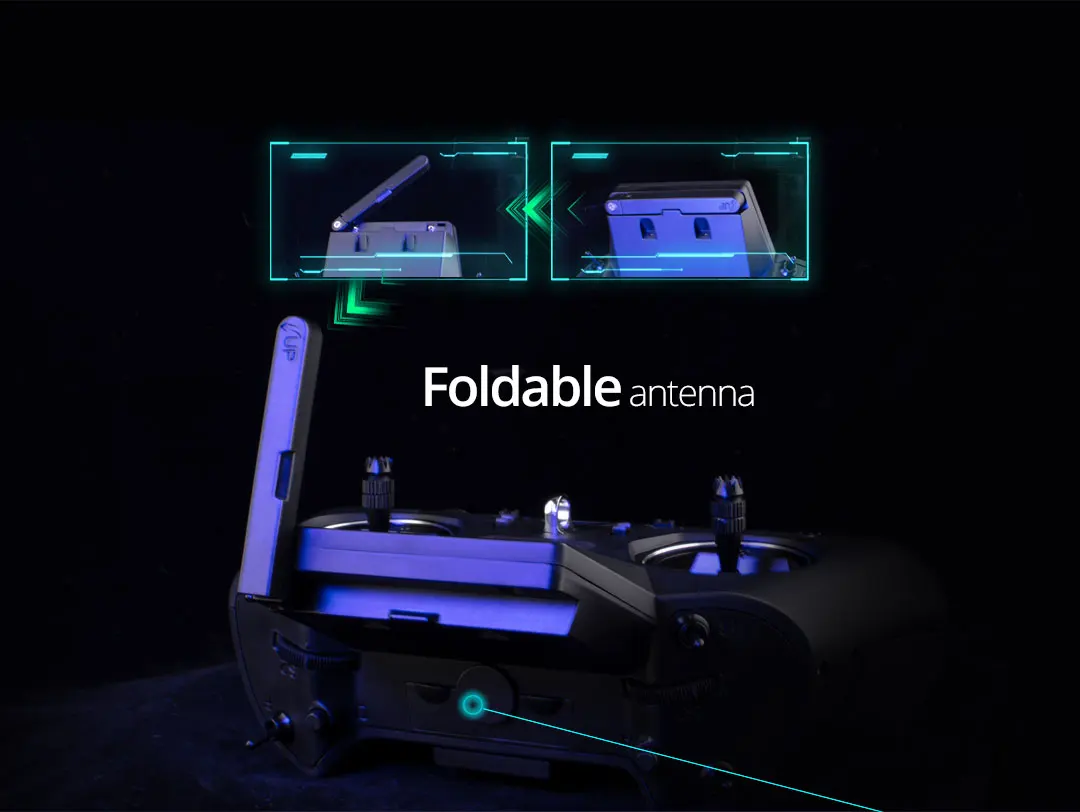

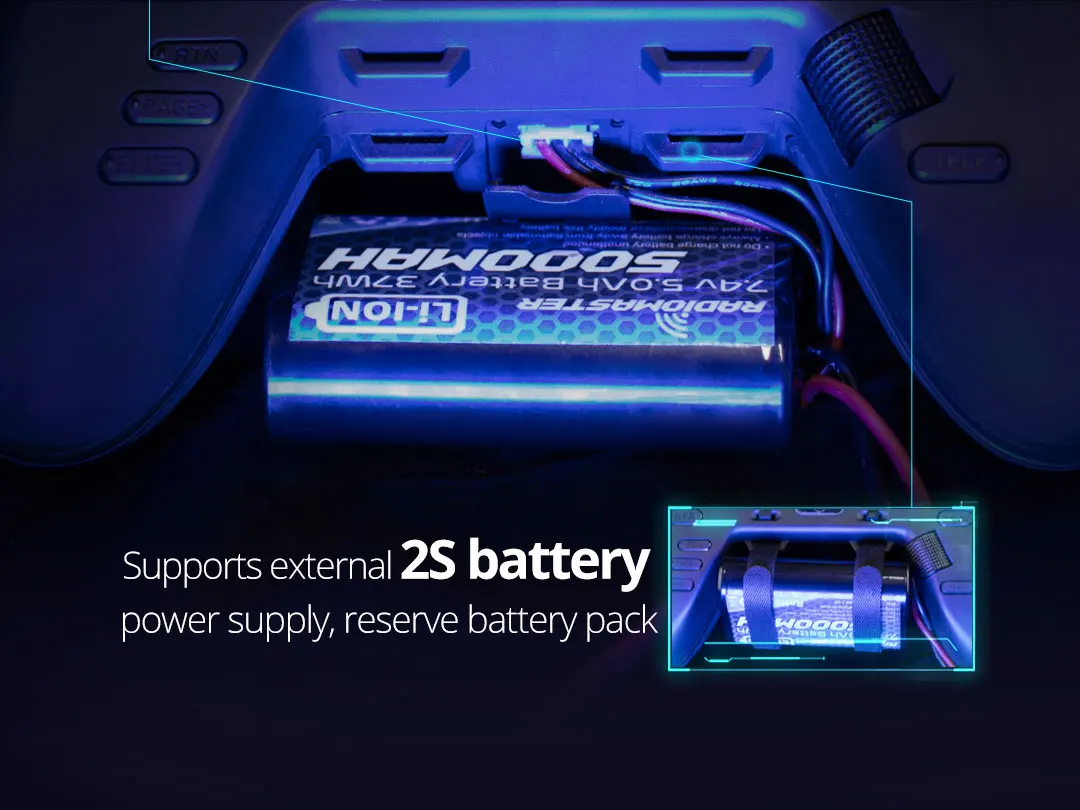

  external 2S battery power supply,reserve battery pack,Foldable

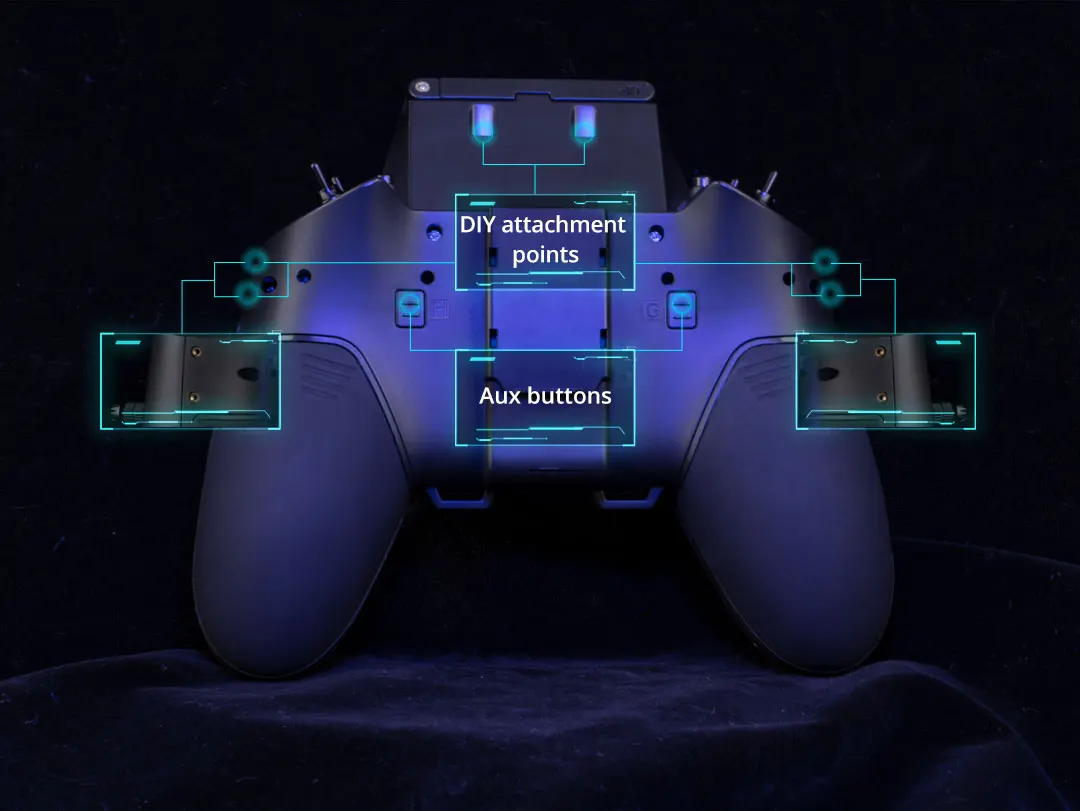

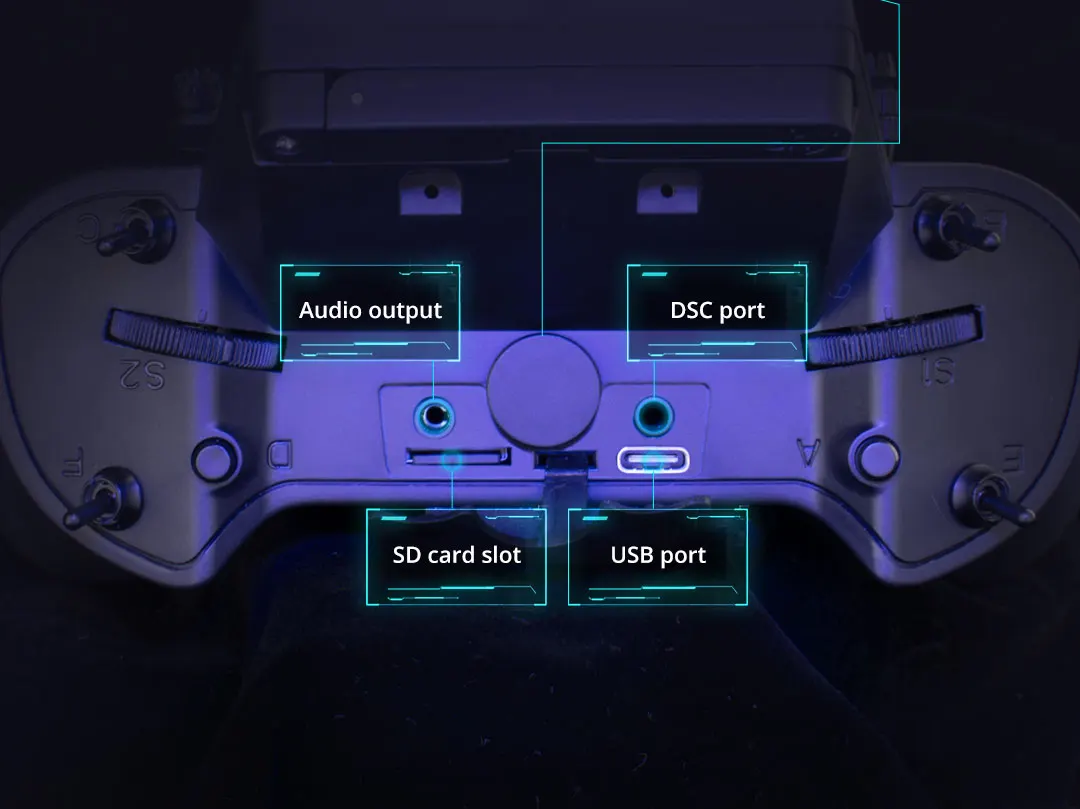

  antenna,Audio output,DSC port,SD card slot,USB port. DIY attachment
  points,Aux buttons.

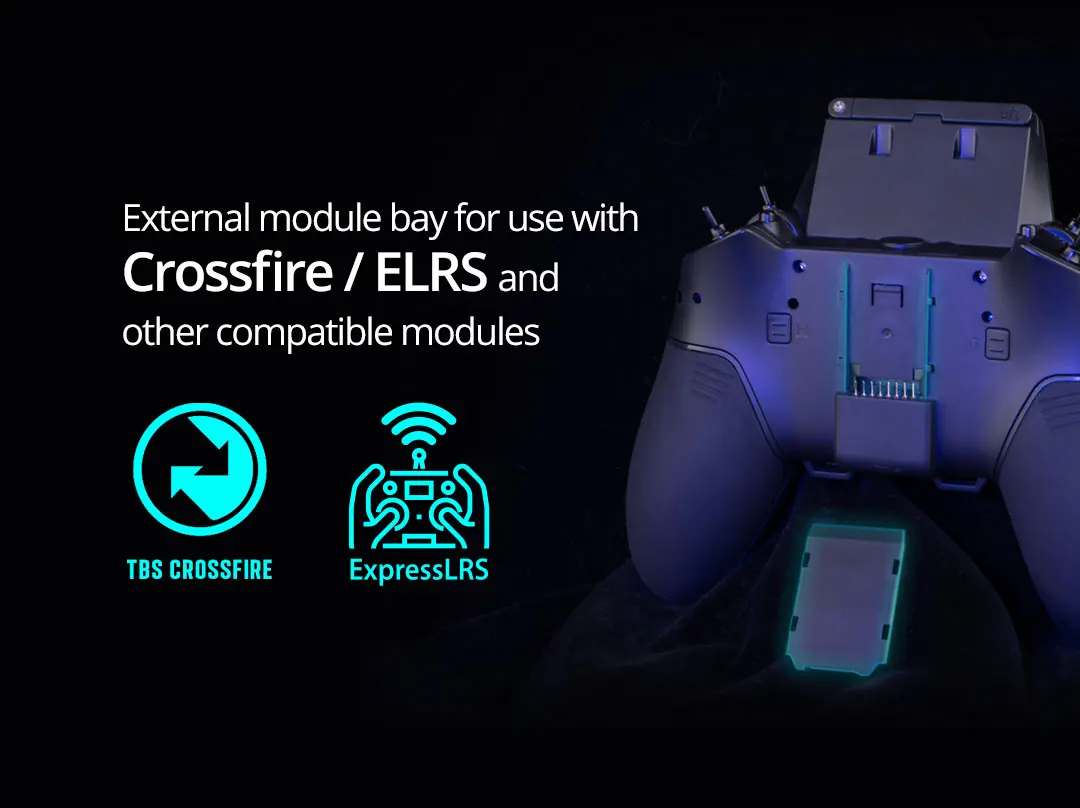

• External Module bay for use with Crossfire/ELRS and other compatibale modules

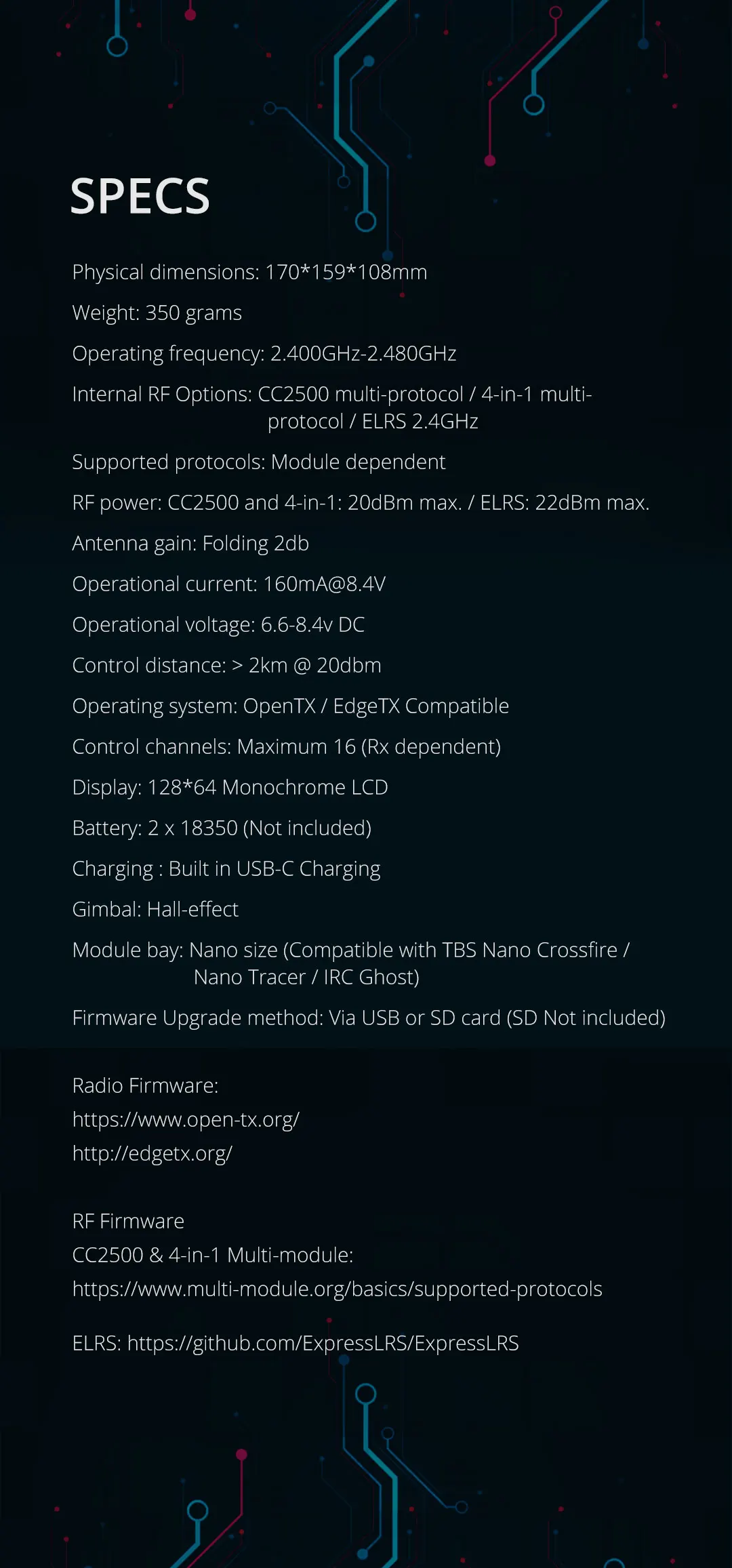

Specs:

• Physical dimensions：170*159*108mm

• Weight：350 grams

• Operating frequency：2.400GHz-2.480GHz Internal RF Options：ELRS

• Supported protocols ：ELRS

• RF power： Up to 250mw ( CE & FCC Versions will be available) Antenna gain：Folding 2db

• Operational current：160mA 8.4V

• Operational voltage：6.6-8.4v

• DC Control distance： Receiver and Power Output dependant Operating system：OpenTX / EdgeTX Compatible Control channels：Maximum 16 (Rx dependent) Display ：128*64 Monochrome LCD Battery ：2 x 18350 (Not included)

• Charging ：Built in USB-C Charging

• Gimbal：Hall-effect

• Module bay ：Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

• Firmware Upgrade method：Via USB or SD card (SD Not included)
