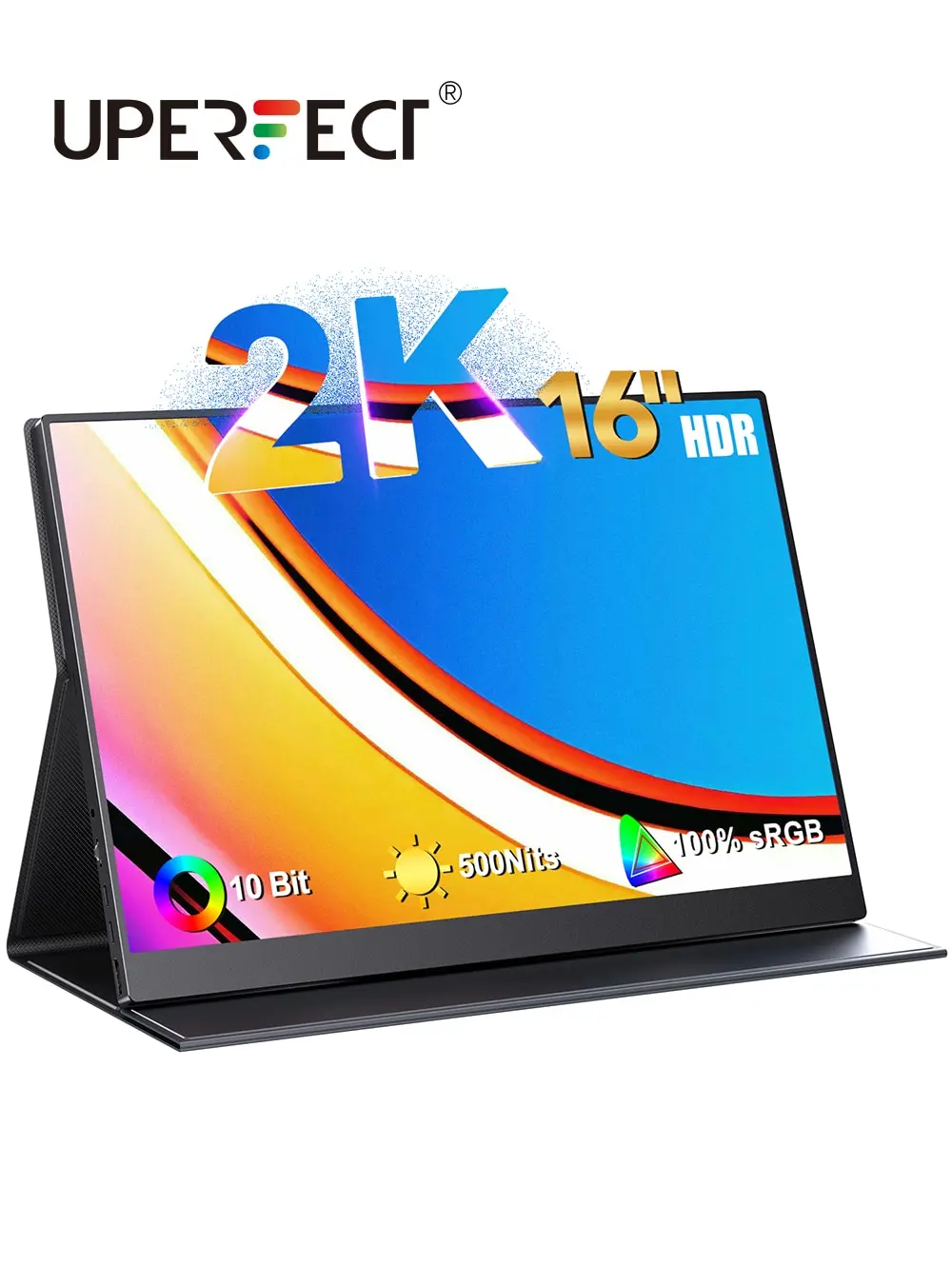

16″ 2K Portable Monitor Technical Details

Panel Type: 16.0” IPS Screen

Resolution: 2560*1600 2K

Display Color: 16.7M

Visual Angle: 178° Full View Angle

Contrast Ratio: 1200:1

Brightness: 500 cd/㎡

Refresh Rate: 60Hz

NTSC: 76%

sRGB: 100%

Response time : 25ms

Display area: 344.678(W)×215.424(H)

Bulit-in Speakers: Dual 8Ω 1W Speakers

Input Interface: Full Function Type-C * 2, Mini HD * 1 3.5mm Audio

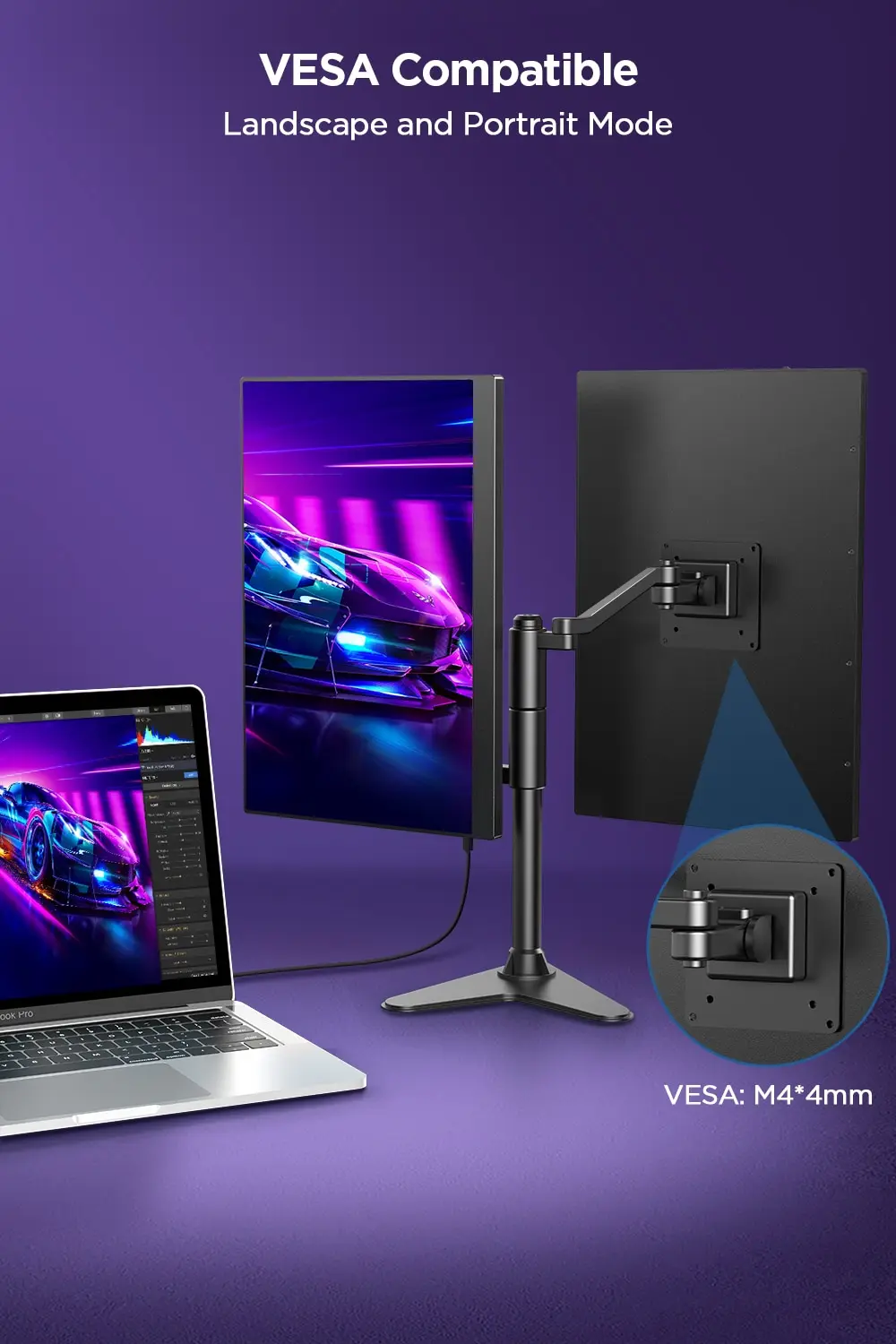

VESA:75mm*75mm

Screen Type: Matte

Color: Black

Whats in the box?

1*16 inch 2K Portable Monitor
1*Quick Start Guide
1*Type-C to Type-C Cable
1*USB-A to Type-C Cable
1*Mini HD Cable
1* Adapter
1* Leather Case

Support Single Type-C Cable For Display & Power Device Model

– Mobile Phones Support USB 3.1:

For Samsung: Samsung Galaxy S8, S8+, S9, S9+, S10, S10+, S10e,S20,S20+,S20 Ultra,S21,S21+,S21 Ultra,S22,S22+,S22 Ultra, Note 8, Note 9，Note 10

For Huawei: P50 Pocket/40 Pro/40/30/20/10/9 Series, Mate X/Xs/X2/40 Pro/40/30/20/10/9 Series, Honor Note 10,Honor Magic V/3/Pro/Pro+/4/4 Pro/4 Ultimate;

For SONY: Xperia 1 / 1 II/1 III/1 IV/5/5 II/5 III/10 III/Pro/Pro-I;

For OnePlus: 7/7 Pro/8/8 Pro/9/9R/9 Pro;

For OPPO: Find X3 Pro/Reno 10x Zoom/Reno 5G/R17 Pro (OPPO RX17 Pro in Europe);

For LG: V60/V50/V40/V35/V30/V30+/V20 Series,G8/G7/G6/G6+(with Dec 2018 update)*functionality has not been tested*/G5 Series,Q8;

For HTC: 10/U Ultra/U11/U11+/U12+/U19e,Exodus 1;

For ASUS:ROG Phone/Phone II/Phone 3/Phone 5/Phone 5s Series,ZenFone 3 Ultra,ZenFone AR,ZenFone Ares;

For Motorola: Edge+/Edge S (China variant)/Moto G100 (global version for European market)/ Edge 20 Pro/30 Pro(global variant)/X30;

For Xiaomi: Black Shark 2/3/4;

For ZTE: Axon 9 Pro/10 Pro,Nubia Red Magic 6S Pro/7/7 Pro;

Others: BlackBerry Key2,BQ Aquaris X2,Essential Phone,Fairphone 4,Lenovo Legion Phone Duel/2 Pro/Duel 2,NOKIA 9 PureView, Microsoft Lumia 950/950 XL, HP Elite x3,Razer Phone/Phone 2,Fairphone 4;

*NOTE: If you can not find your devices above, please use IOS/Android to HDMI Adapter for connecting.

– Laptops Support Thunderbolt 3 or USB 3.1:

For Apple: Apple MacBook Pro (Late 2016) and newer,Apple MacBook Air (Late 2018) and newer ;

For Huawei: MateBook D/X/X Pro/E/13, MagicBook;

For ASUS: ZenBook, U4100UN, U5100UQ, ROG Series;

For HP: EliteBook Folio G1, Spectre 13,ZbookZbook Studio;

For Dell: G3/G5/G7 Series, Inspiron 5000/7000 Series, XPS12/13/15;

For Lenovo: Thinkpad E580/T470/T470s/T480/T480s/X1 Carbon (2017-2019);

For MIUI: Air 12.5″/133.3″, Pro 15.6″, MI Game NoteBook

For Google: ChromeBook Pixels

For Razer: Blade Stealth Series (All)

For Microsoft: Surface Book 2

Others: Acer Swift 5,MSI GS60 6QE,Gigabyte Aero 15x/15 x9/15 y9;

*NOTE: If you can not find your devices above, please use mini HDMI cable instead.

Warm tips:

If the screen signal is poor or flickers, make sure you are only operating the monitor with the adapter that came with it. With other adapters, the voltage may be insufficient. If the screen still flickers, please swap the HDMI cable to test.

Please check the Type-C port of your PC/Laptop whether it supports the transmission of audio and video signals (Thunderbolt3). If it doesn’t, you’ll need a “Type-C to HDMI” adapter for signal transmission.

If “No Signal” or “Power Saving Mode” appears, please switch the Type-C cable head to another side and reconnect the monitor.

The monitor turns on in the default power save mode. (Note: No save function in sleep mode, you need to close it manually.)

The 2K portable monitor has no built-in battery, without touchscreen function,you can’t charge it.you cant touch it, just connect and get started.
