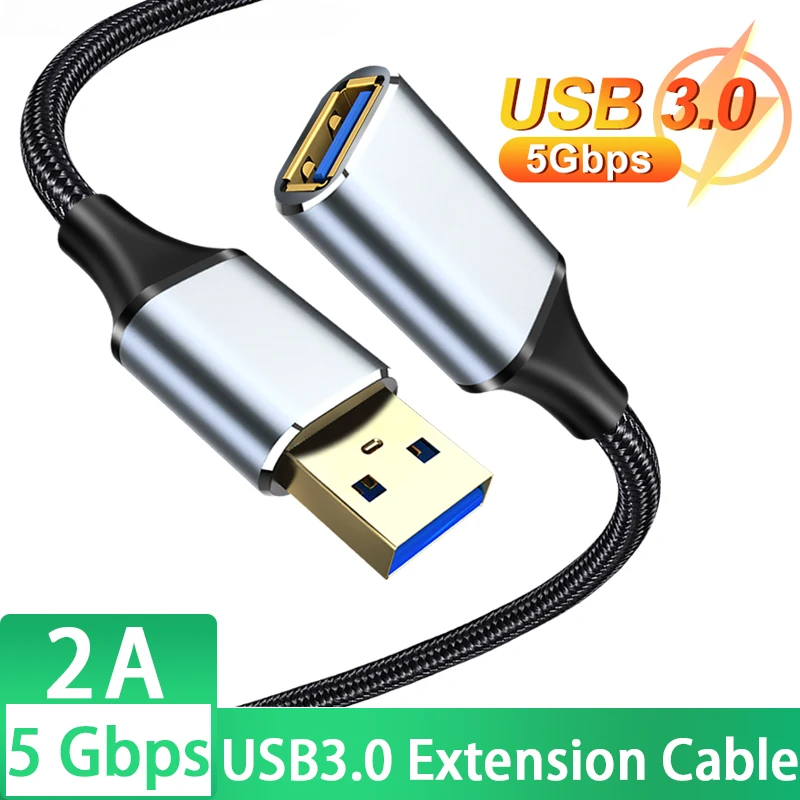

[Product name] : Universal USB3.0 extension cable USB3.0 high-speed data cable

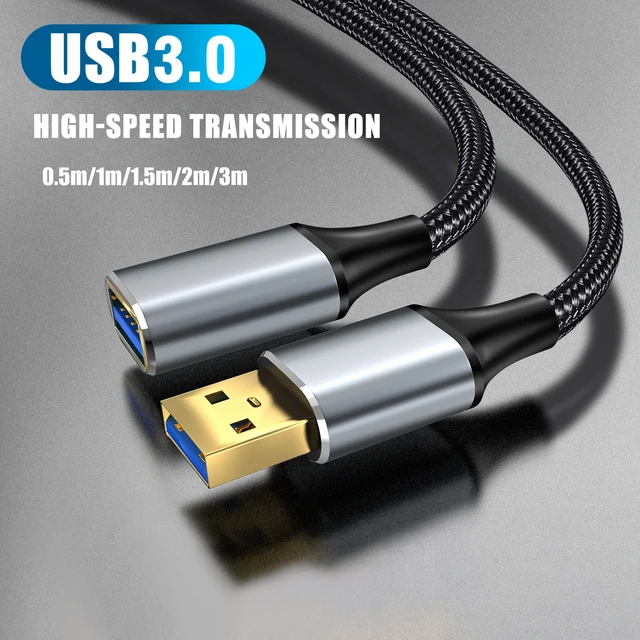

[Product specifications] : 0.5m, 1M, 1.5m, 2M

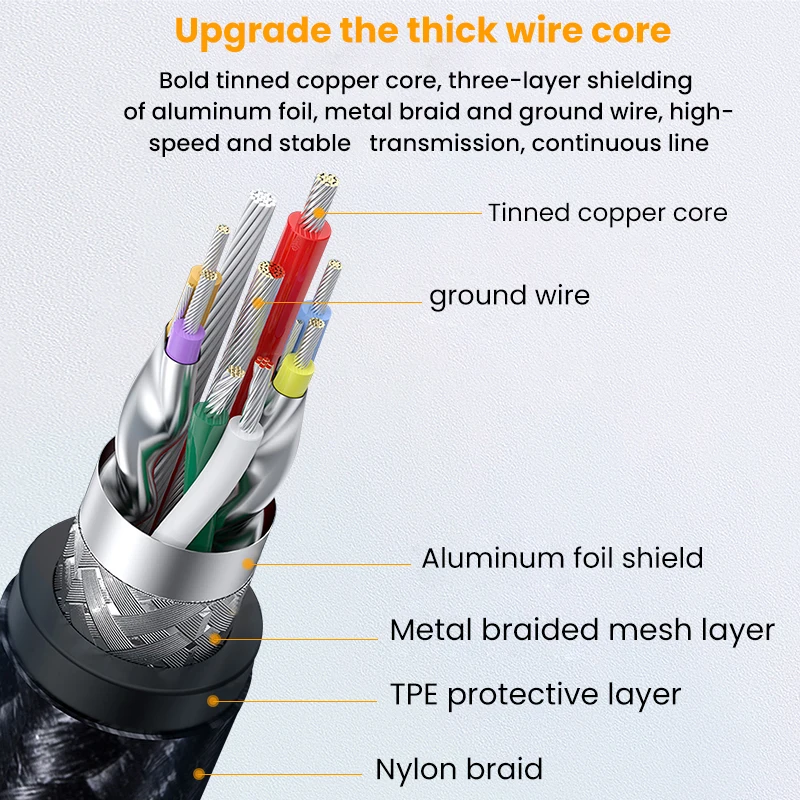

[Core specification] : standard copper 9 core + aluminum foil +96 braided shielding net

[copper wire specifications] :(30AWG*2+EAM)*2P+30AWG*1P+24AWG*2C+AEB PVC OD4.5+0/- 0.2mm

[Shielding performance] : Double shielding (braided shielding + aluminum foil shielding), can greatly reduce electromagnetic interference and radio interference, stable transmission of data

[Scope of application] : Data transmission between devices with USB interface, connection extension.

[Transmission speed] : 5Gbp/s

[Product features] :

1. Full-duplex data transmission: In USB3.0, in addition to the four main lines, two groups of cables are added (each group has a pair of signal cables and ground cables, surrounded by aluminum foil shielding, which do not interfere with each other). One group is used to send data, and the other group is used to receive data. Previous USB versions did not support full-duplex data transfer.

2. Super fast transmission speed, USB3.0 is also known as SuperSpeedUSB, which greatly improves the bandwidth, up to 5Gbps full-duplex (625MB/S), but the actual transmission rate is about 3.2Gbps (400MB/S), USB2.0 is 480Mbps half-duplex (60MB/S). USB3.0 can transfer a large number of files (such as hd movies) at the storage rate specified by the storage device. For example, a flash memory using USB3.0 can transfer 1GB of data to a host in 15 seconds, while USB2.0 takes 43 seconds.

3. Support USB 3.0(5Gbps), compatible with USB 2.0(480Mbps) and USB 1.1(12Mbps) specifications.

4. Support Windows 2000/2003/XP/Vista/WIN 7SP1 and Linux IOS
