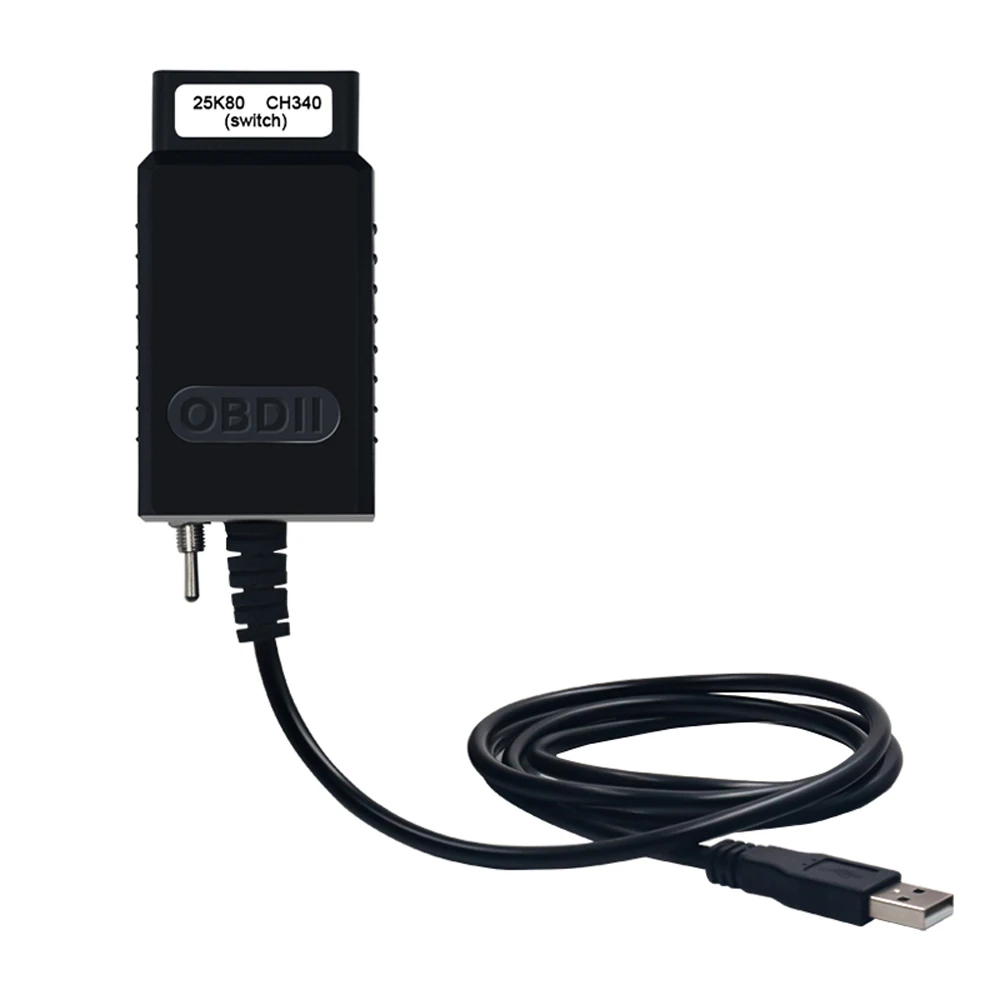

Newest ELM327 V1.5 USB Switch With PIC18F25K80 & CH340 DOUBLE Chip For HS MS CAN ELM 327 Code Reader Diagnostic Scanner Tools

Description

Newest ELM327 V1.5 USB Switch With PIC18F25K80 & CH340 DOUBLE Chip For HS MS CAN ELM 327 Code Reader Diagnostic Scanner Tools

Description:

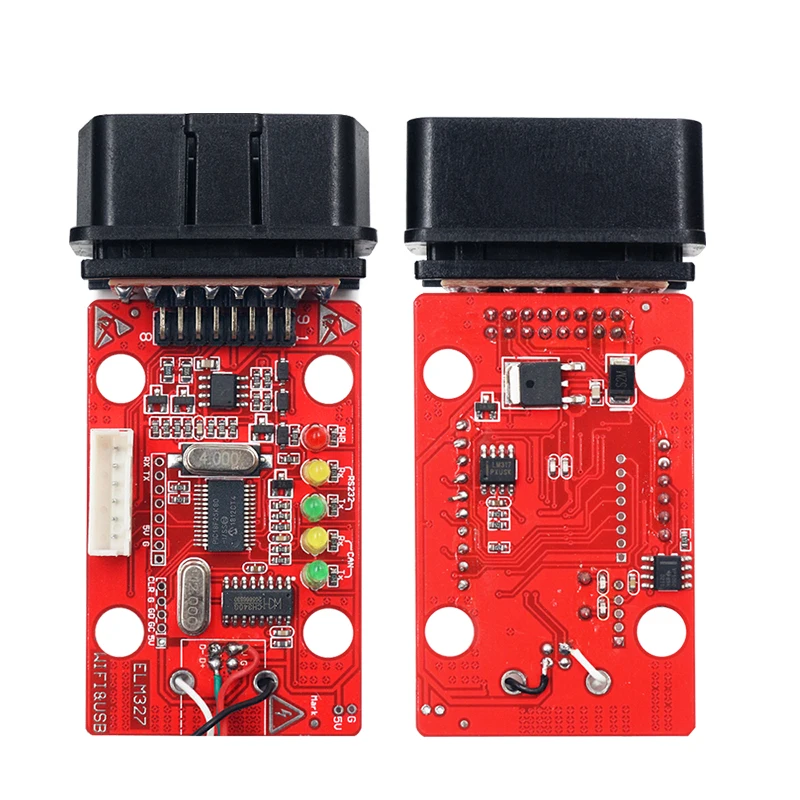

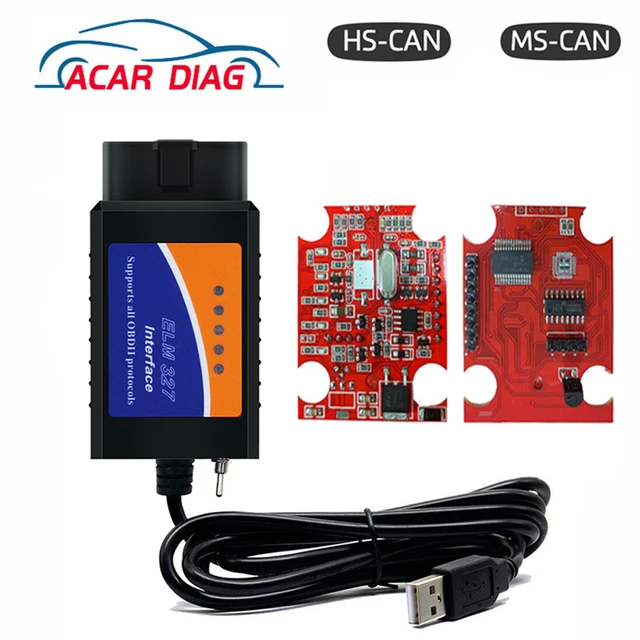

Chip: PIC18F25K80 & CH340

Hardware Version: V1.5

USB Interfave : FOR PC

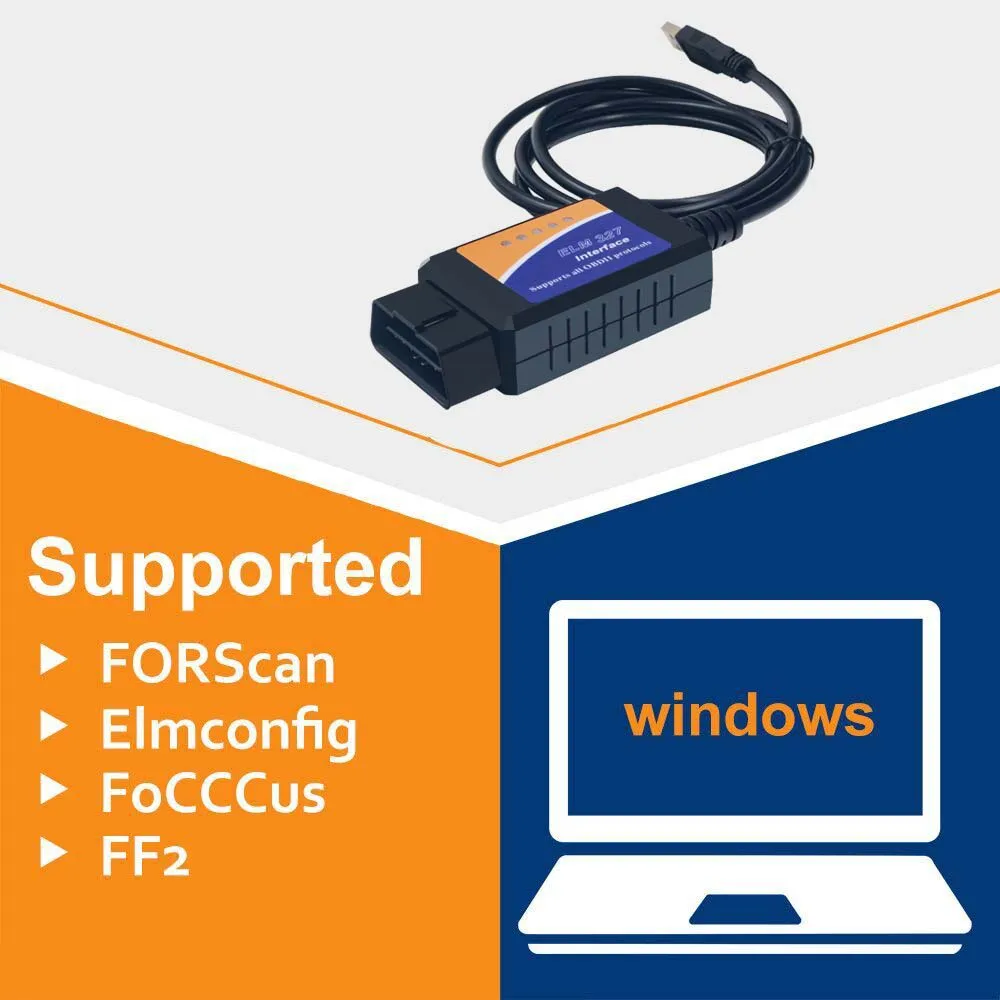

Compatible software: FORScan, Elmconfig, FF2 and FoCCCus, plus more

Applicable: All vehicles complying with OBD II

Operating Temperature: -40℃-85℃

Working Humidity: Less than 60%

Size: 3.4*1.8*1inche

Designed: For FORScan software

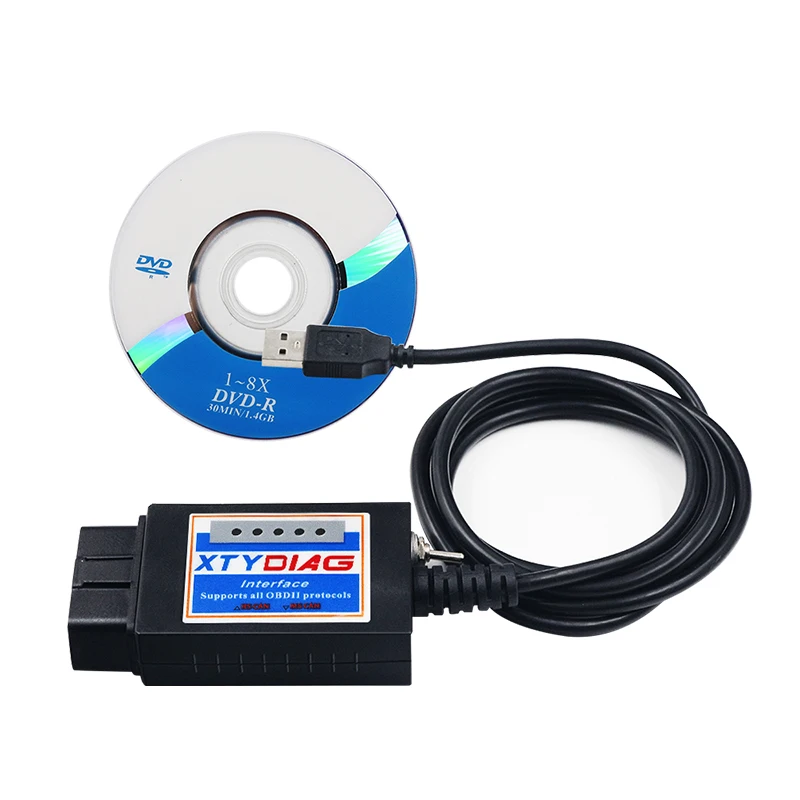

Included: Drivers and instructions

Funtion: Modificate to different CAN buses

Support: MS CAN bus and HS CAN bus

Operation: Simple and convenient

Features:

OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

The program is very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

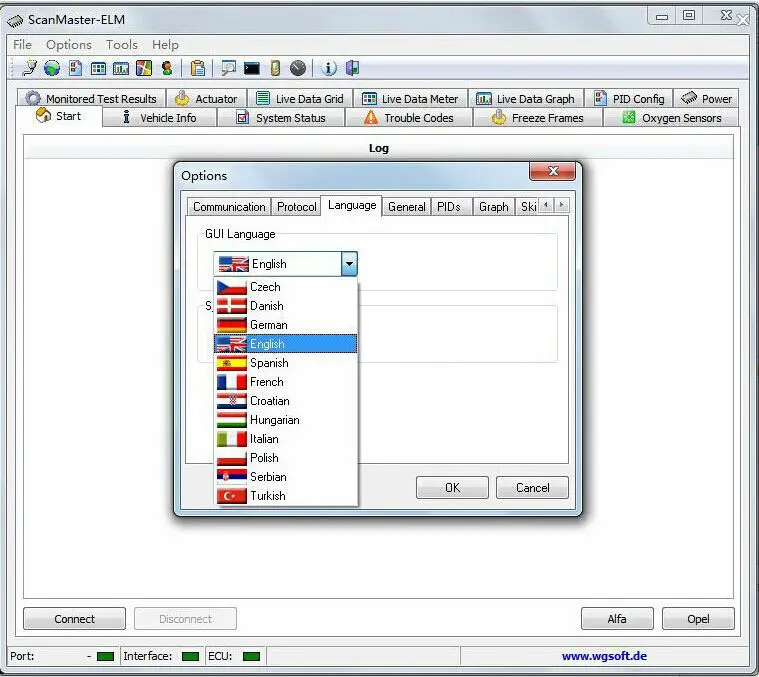

Support 12 Languages:

English, Spanish, French, Czech, Danish, German, Croatian, Hungarian, Italian, Polish, Serbian, Turkish

–When starting MS CAN function, it supports Language: English & Russian.

Supported softwares: Elmconfig, FF2 and FoCCCus,Scanmaster plus more

Functions:

1.Read diagnostic trouble generic codes

2.Clear trouble codes and turn off the MIL (“Check Engine” light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

19.Many others…

Supports all OBD-II Protocols :

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

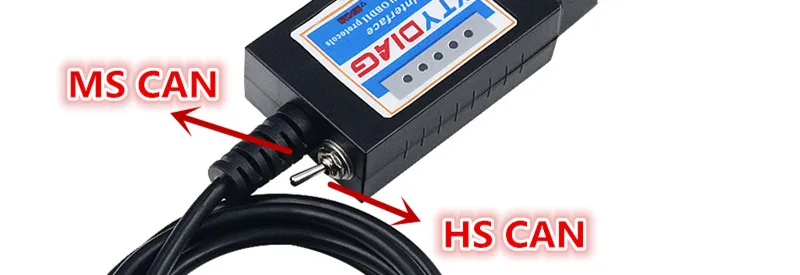

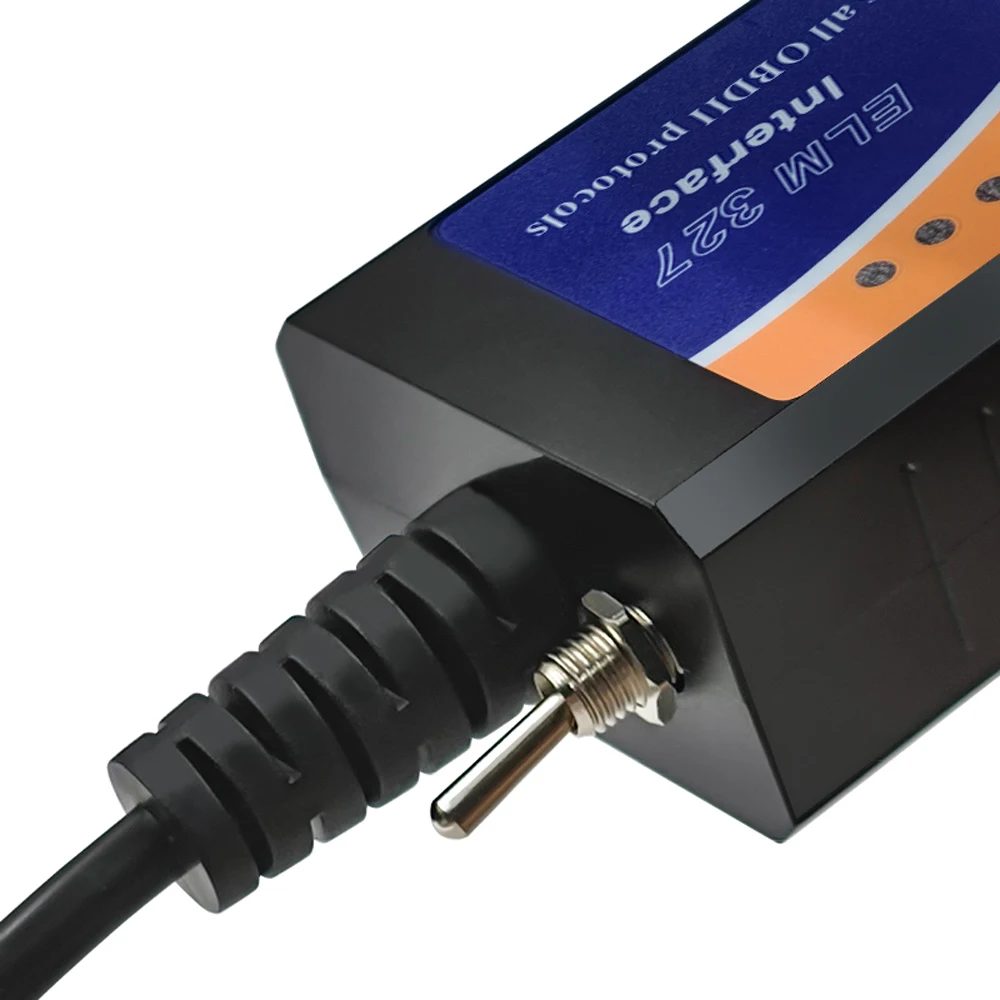

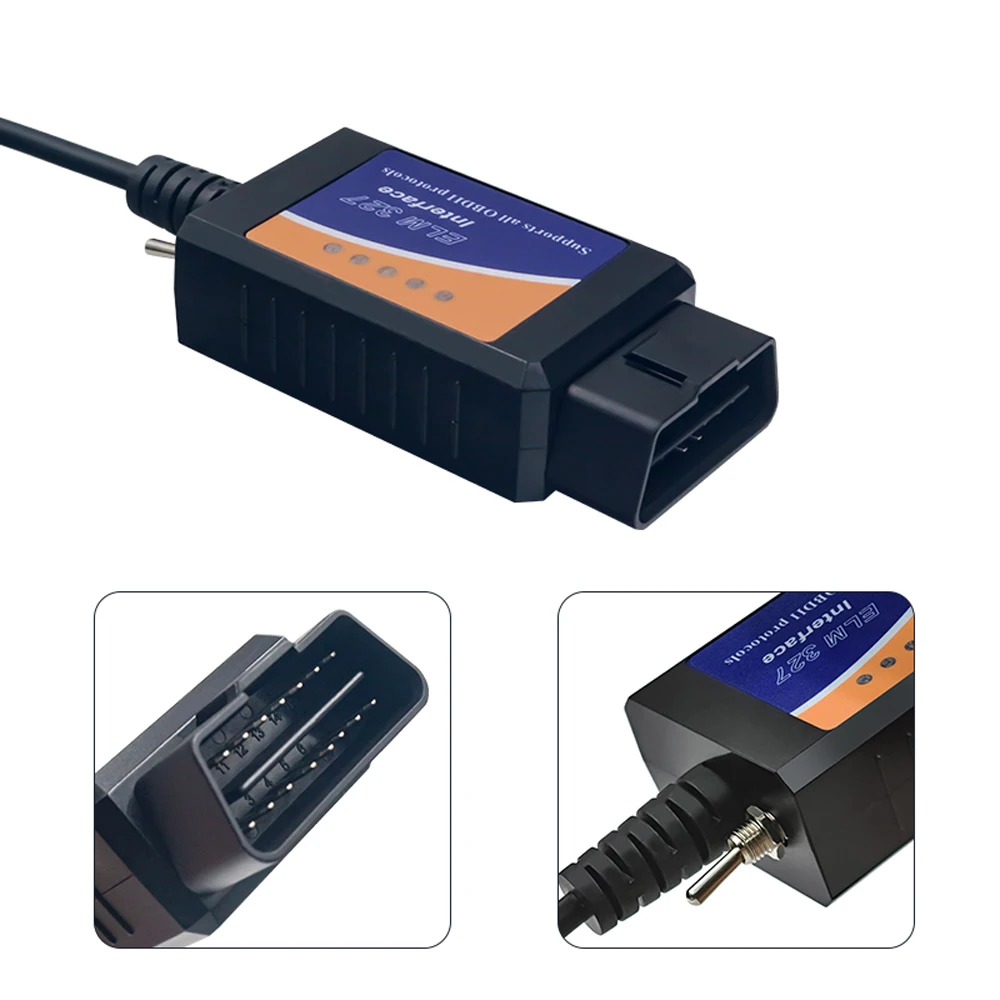

Pin Configurations:

Switch position one: HS CAN – Occupies pins 6 and 14

Switch position two: MS CAN – Occupies pins 3 and 11

FORScan Software Support :

FORScan can detect modules which are not visible for regular scanners, can show you trouble codes which are never displayed by OBD-2 scanners, can show you PIDs which are not supported by any OBD-ii scanner, run specific tests and service procedures.

In other words, FORScan can do things that regular elm 327 V1.5 can not do.

Supported Vehicles:

All Ford, Mazda, Lincoln, Mercury vehicles that can be addressed by supported adapters.

It is 99% of models after 2000 and around 92% of models after 1996 (the year when OBD-II became a standart in USA).

●Note: New 2019+ Mazda 3 and CX-30 are not

Warm Tips:

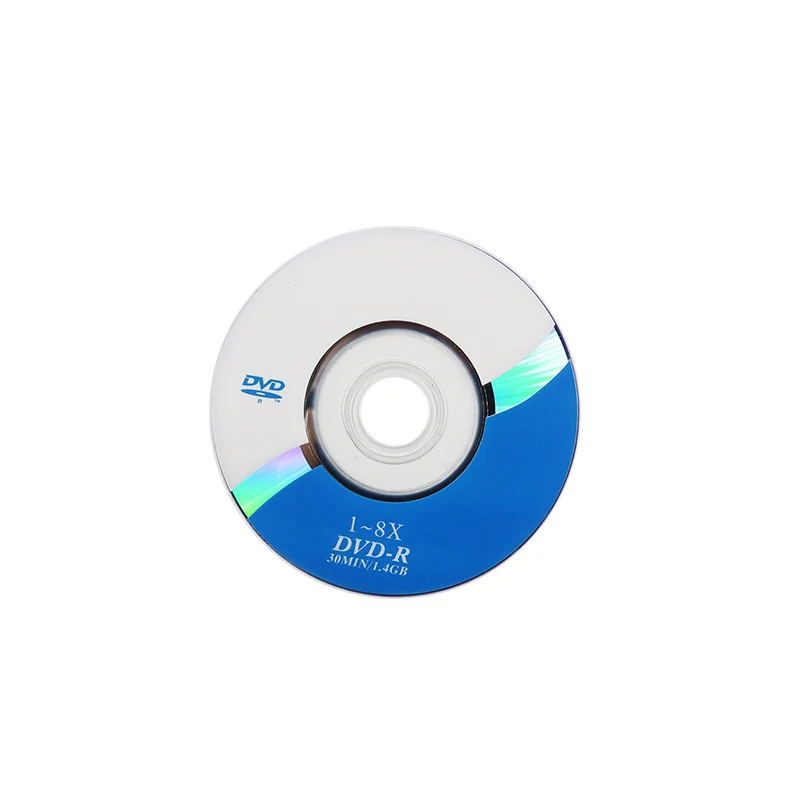

1.If the CD is broken or can't readable, pls contact with the seller, we will deal with it as soon as possible.

2.Delivery time Note: If your Confirmation Time is coming, you still not receive the goods, please contact us, we will extend the delivery date in advance.

3.If any questions, please feel free to contact with the seller, please never open a dispute before contact with the seller.

Q: What is Extended License, why and when do I need it?

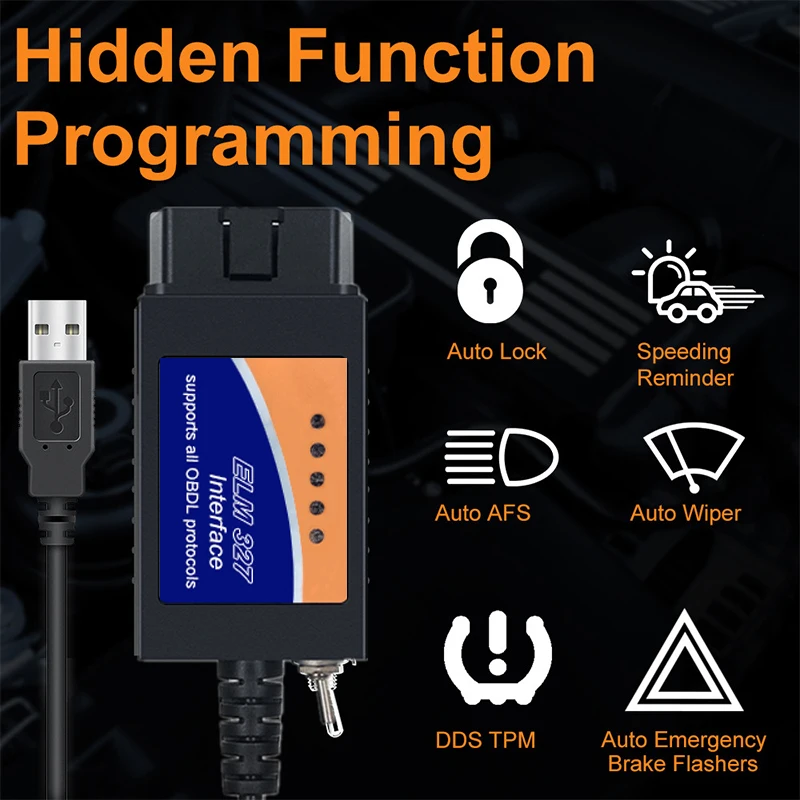

A: Extended License provides access to Configuration and Programming functions of FORScan, and also few Service functions (such as PATS programming).

Base FORScan functionality (connection, retrieving vehicle information, reading parameters, read and reset DTC, run tests and service functions etc) do NOT require Extended License.

There is a free 2 month Extended License that can be issued for anyone who has account on forscan official forum. Also there are paid longterm and lifelong licenses. More information about Extended License can be found on forscan official store.

Q: Why FORScan doesn't show function Y for my car? When this function will be added?

A: Functions may be very different for different models and especially different generations of models and different brands. For example, at this moment there are 50+ known versions of ABS bleed procedure for Ford models, only 10+ are implemented in FORScan.

We do not add functions just for fun, as number of functions is huge because of multiple versions. So we add functions by requests. More requests from users for a function – more chance for this function to be added in the near future.

Q: How can I get Extended License after trial period?

A: At this moment only 2 months free Extended License is available. When it is expired, you will be able to issue another 2 months one, also for free. Or you can buy long term (1, 3, 5 years) or lifelong Extended License.

Q: What is the “Module Initialization” function, why and when do we need it?

A: Module initialization function is required for the vehicles that have distributed PATS, so two or more modules (ECUs) are involved into the vehicle security.

One of modules is “primary” one that stores keys and manage the programming process. Other modules are “auxiliary” that provide security on the specific block (usually PCM, FIP or ABS).

For example, instrument cluster (IC) is a primary PATS module for EU Focus Mk2 and PCM is an auxiliary. If IC cannot read a key, PCM will not let run the engine.

Primary and auxiliary modules have to be “matched” (paired), otherwise a theft may run the engine with his own PCM. So the Module Initialization function performs the pairing.

The above explains when user needs to use this function: it has to be used ONLY if you have replaced one or several PATS modules. It is BAD idea to run this function “just in case” after keys programming (although some rare cars require it – for example, AU models).

Additional information

Special Features	USB
Software Update	Yes
Language	Czech,Denish,English,French,German,Hungarian,Italian,Polish,Spanish,Turkish
Software Version	Newest
Hardware Version	V1.5
Origin	Mainland China
Item Type	Code Readers & Scan Tools
Certification	NONE
Color	Black
Function	OBD2 Scanner & Diagnostic Tool
Chip	PIC18F25K80 & CH340
Quality	superior
service	best and timely
Shipping	Fast And Safe
warranty	one year
Package	Strong Packing
